67 31 521 Removing and installing/replacing drive for seat height adjustment (front seat removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Saloon/sedan, coupe, touring:

Disconnect plug connection (2).

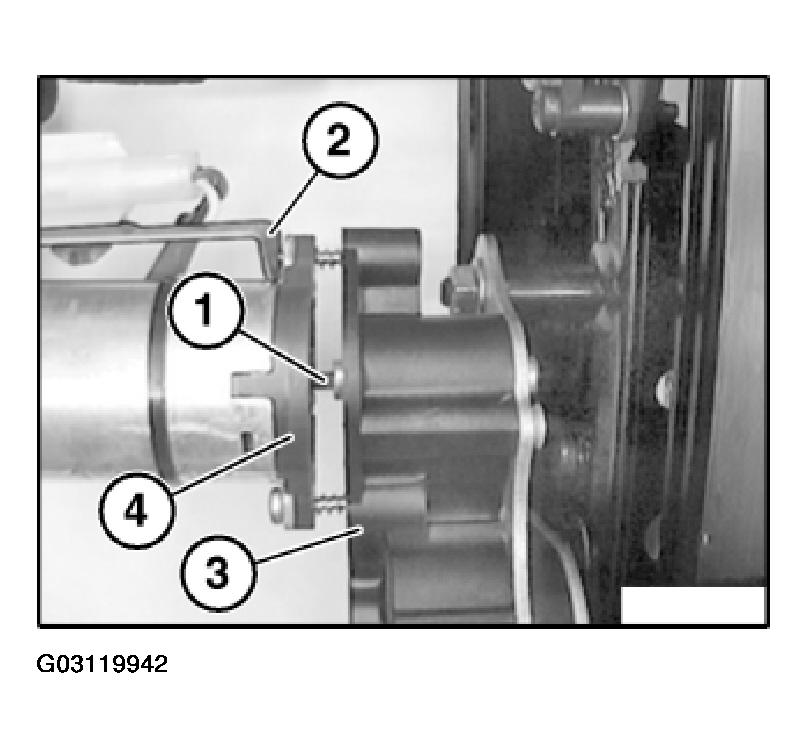

Fig 1: Removing Drive For Seat Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive for seat height adjustment (3) against falling out.

Loosen screws (1).

Remove drive for seat height adjustment (3) with fixture for plug connection (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for seat height adjustment (3).

Installation:

Make sure drive shaft (1) is correctly seated.

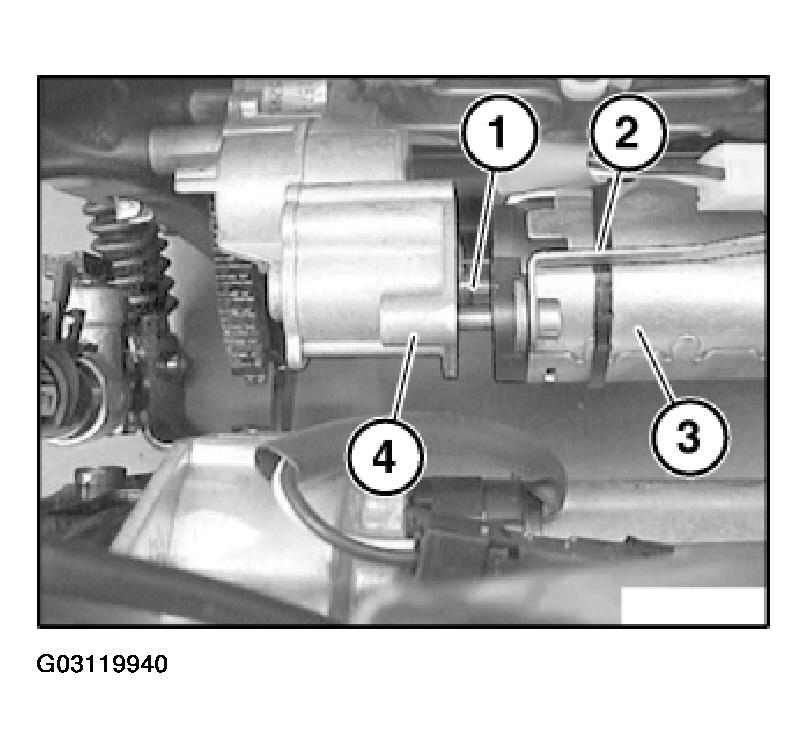

Fig 2: Adjusting Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure fixture for plug connection (2) and drive for seat height adjustment (3) on flange (4) are correctly seated.

Convertible:

Disconnect plug connection (1).

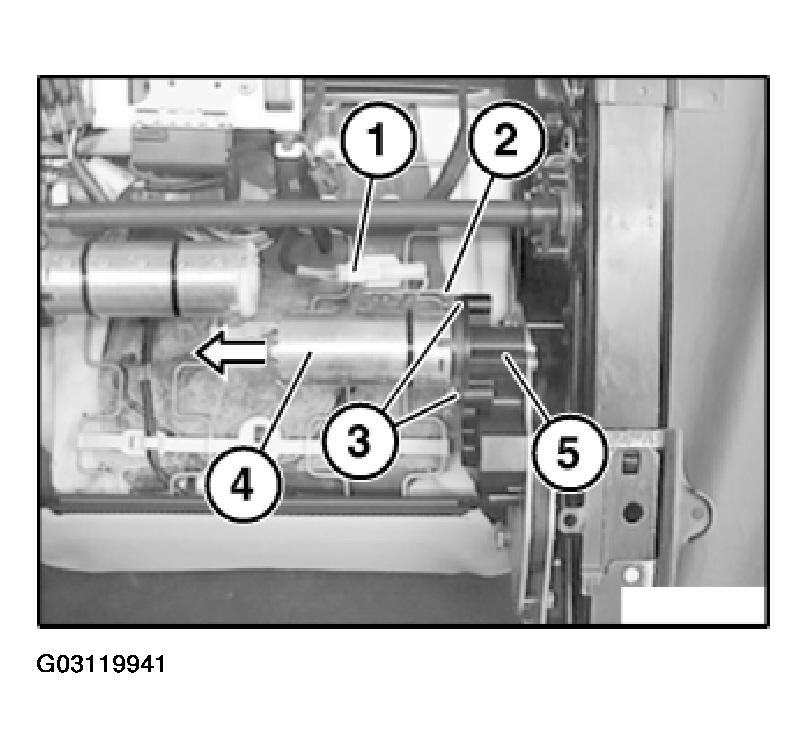

Fig 3: Removing Drive For Seat Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive for seat height adjustment (4) against falling out.

Release screws (3).

Remove drive for seat height adjustment (4) with fixture for plug connection (2) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for seat height adjustment (4).

Installation:

Make sure drive shaft (1) is correctly seated.

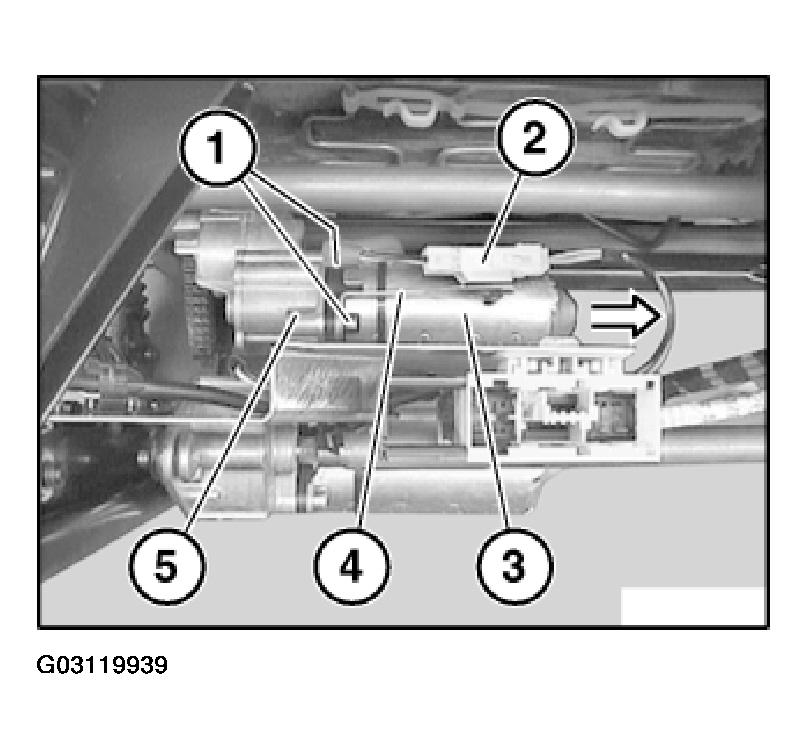

Fig 4: Adjusting Drive For Seat Height On Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure fixture for plug connection (2) and drive for seat height adjustment (4) on flange (3) are correctly seated.
