67 31 511 Removing and installing/replacing drive for seat tilt adjustment (front seat removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (4).

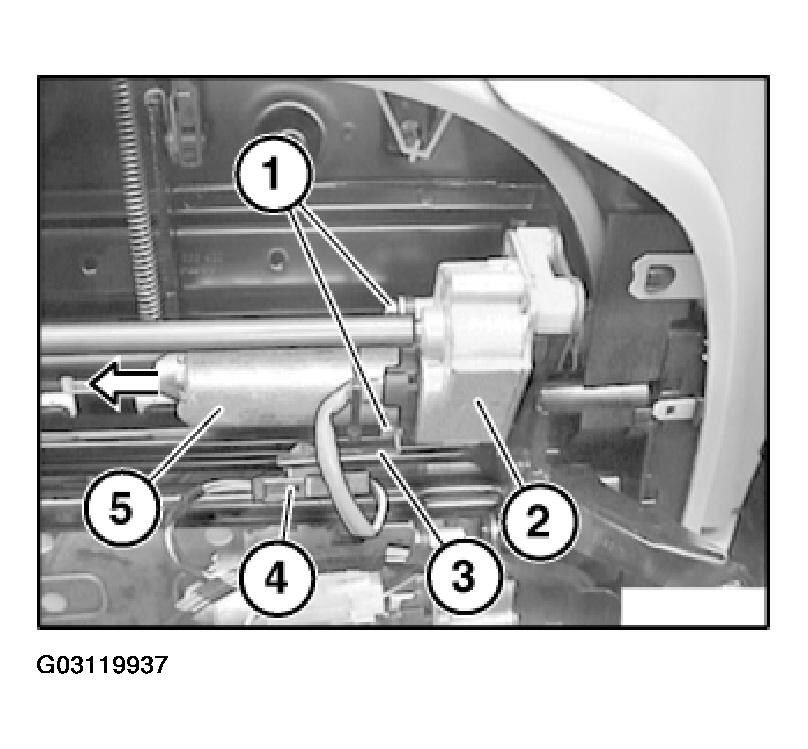

Fig 1: Removing Drive For Seat Tilt Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive for seat tilt adjustment (5) against falling out.

Loosen screws (1).

Remove drive for seat tilt adjustment (5) with fixture for plug connection (3) in direction of arrow from flange (2).

If necessary, remove inner drive shaft from drive for seat tilt adjustment (5).

Installation:

Make sure drive shaft (1) is correctly seated.

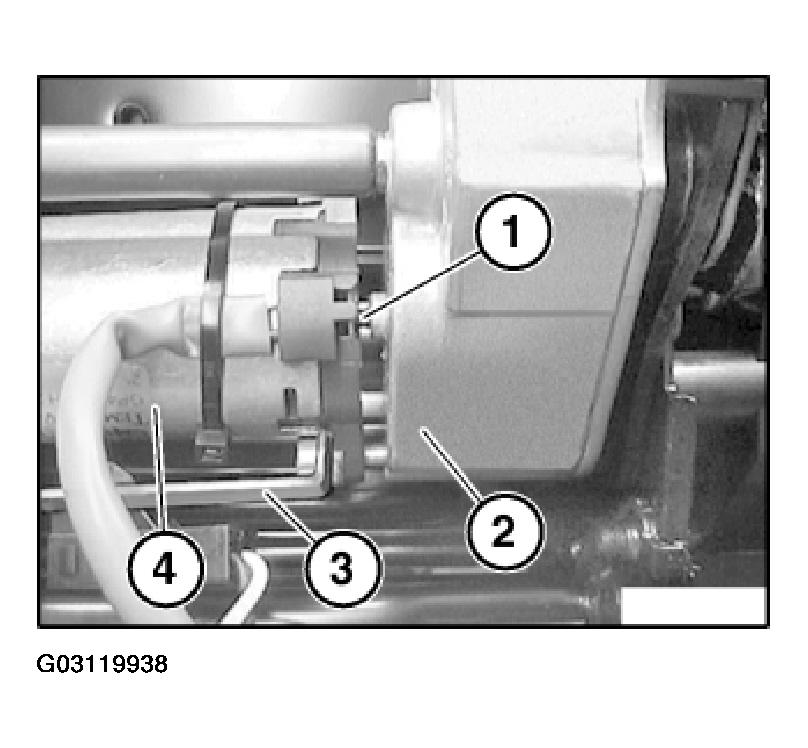

Fig 2: Identifying Plug Connection And Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure fixture for plug connection (3) and drive for seat tilt adjustment (4) on flange (2) are correctly seated.
