67 31 501 Removing and installing/replacing drive for longitudinal seat adjustment (front seat removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

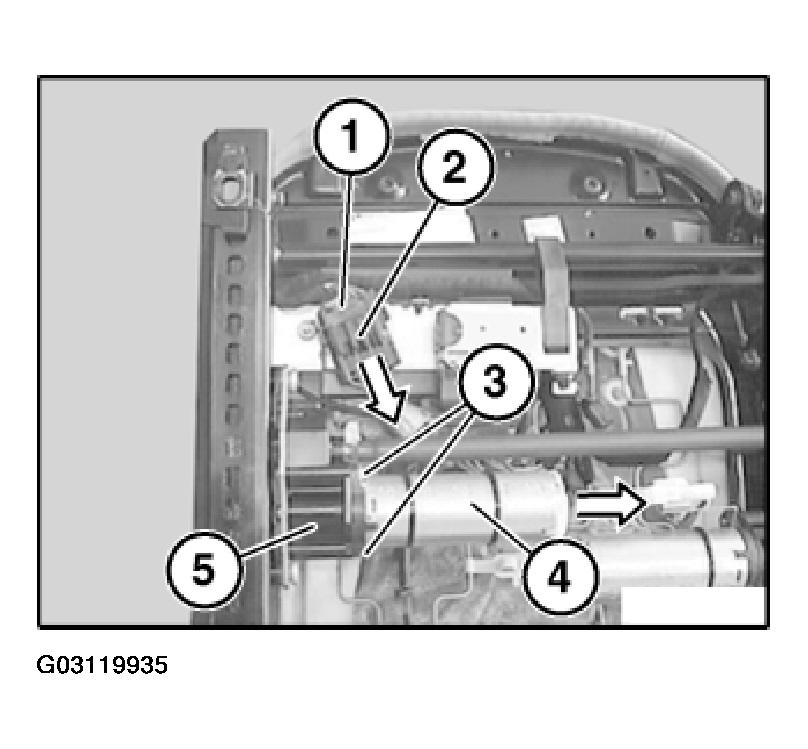

Fig 1: Removing Drive For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug housing (2) in direction of arrow from retaining fixture underneath.

NOTE: Secure drive for longitudinal seat adjustment (4) against falling out.

Release screws (3) and remove drive for longitudinal seat adjustment (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for longitudinal seat adjustment (4).

Installation:

Make sure drive shaft (1) is correctly seated.

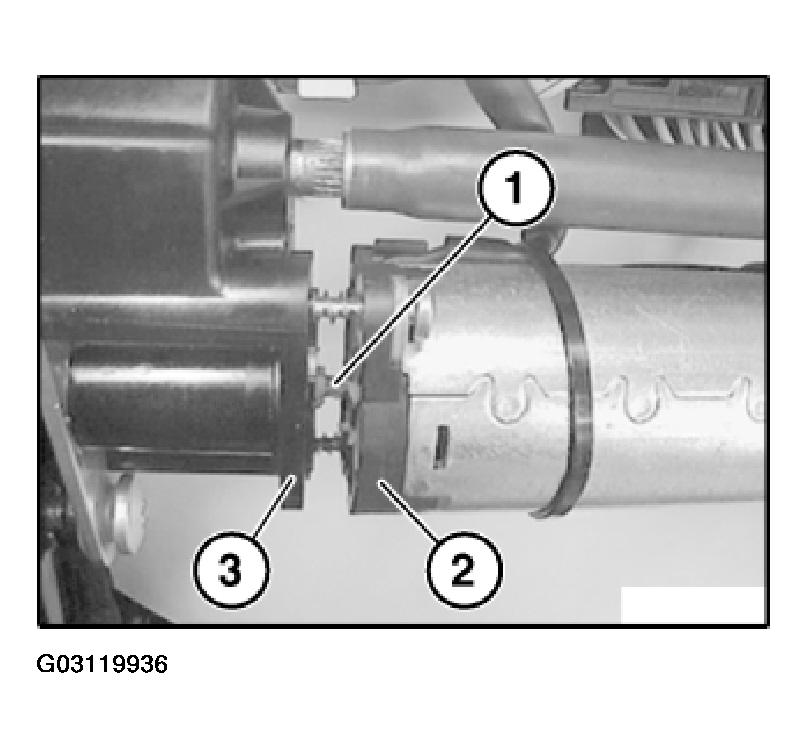

Fig 2: Identifying Drive Shaft And Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure drive for longitudinal seat adjustment (2) is correctly seated on flange (3).
