Saloon/Sedan, Coupe And Convertible:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Detach luggage compartment wheel arch liner in rear area. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING TRUNK WHEEL HOUSING TRIM, LEFT .

Release nuts and remove rear light towards outside.

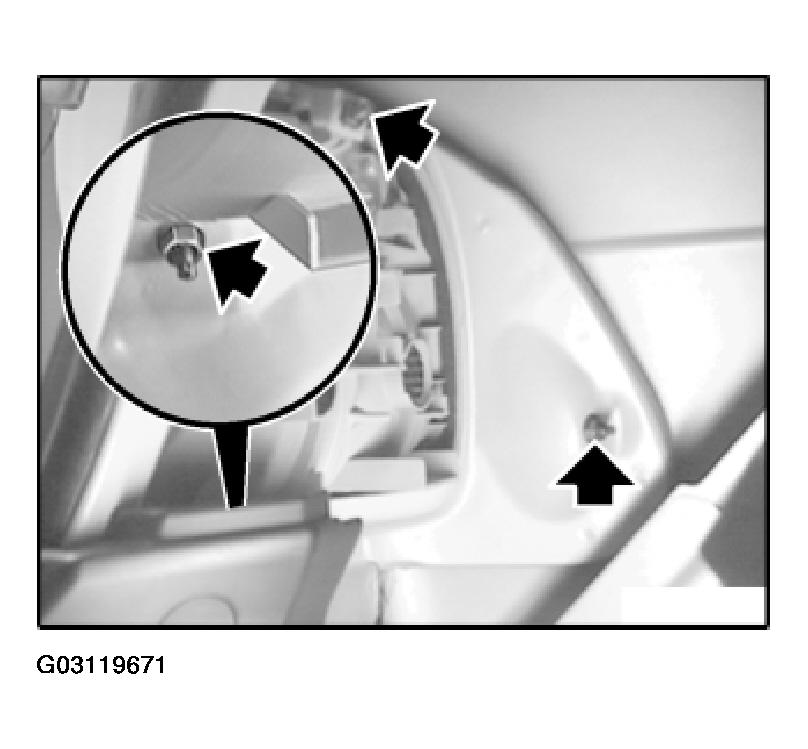

Fig 1: Removing Rear Light
G03119671Courtesy of BMW OF NORTH AMERICA, INC.
