Version Without Inside Reading Lamp:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unclip lens (1).

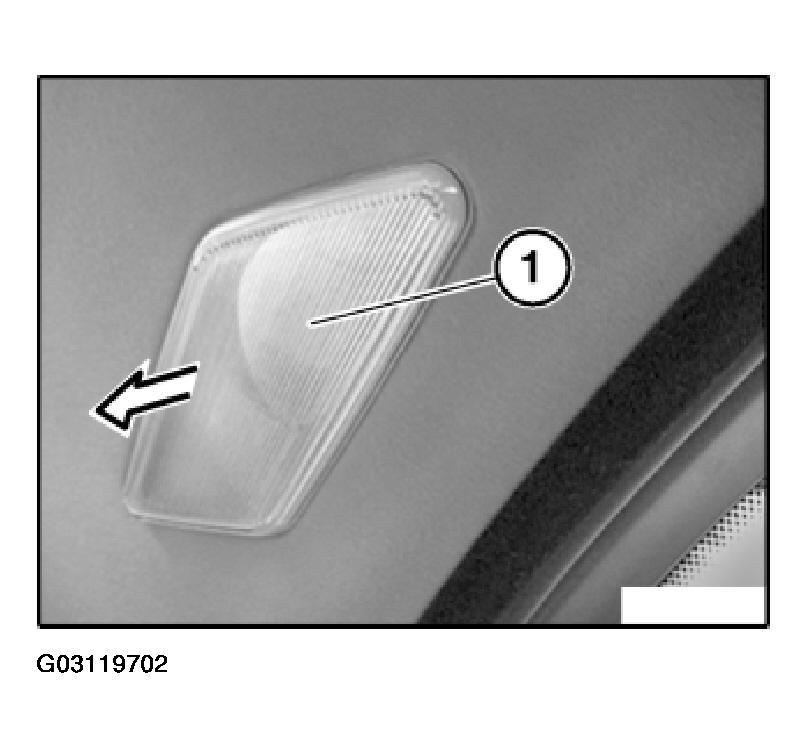

Fig 1: Removing Lens
G03119702Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb (1) in direction of arrow from bulb holder.

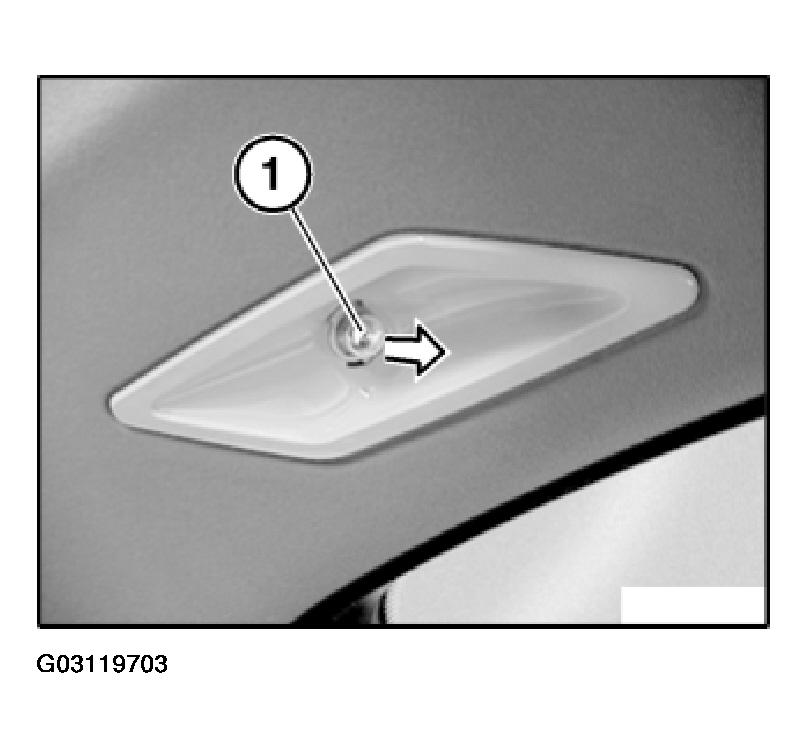

Fig 2: Pulling Bulb From Bulb Holder
G03119703Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - 3-SERIES (E46) .
