63 14 120 Removing and installing/replacing reflecting tail light on rear bumper (coupe, convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Once the bumper (1) has been pressed on, the reflecting tail light (2) is forced out by spring force.

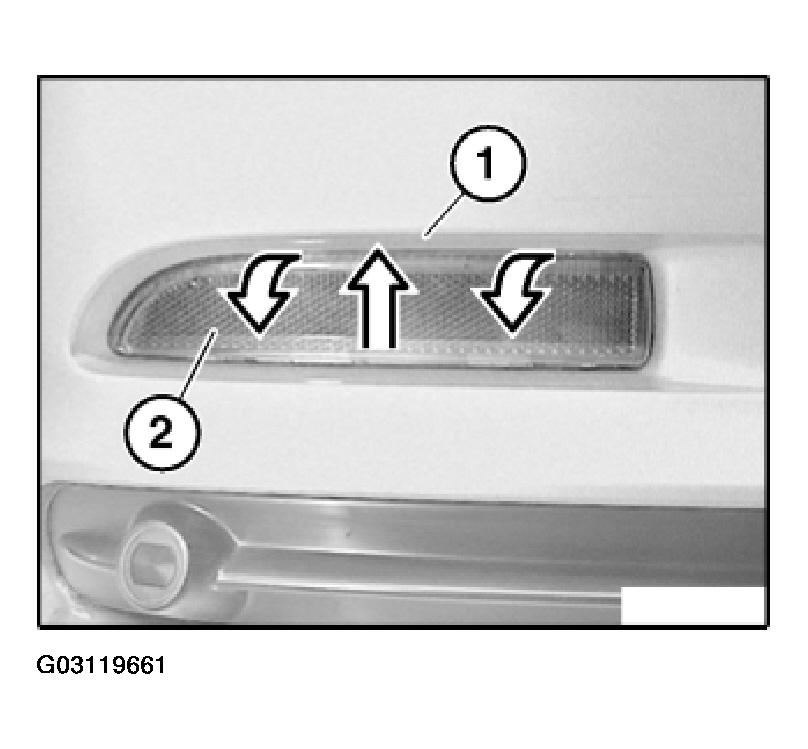

Fig 1: Removing Reflecting Tail Light

Courtesy of BMW OF NORTH AMERICA, INC.

Press bumper (1) in center upwards and remove reflecting tail light (2) towards rear/top.

Installation:

Insert reflecting tail light (2) at bottom into bumper (1) and press top/center against reflecting tail light (2) until it snaps into place in bumper (1).

Installation:

Fixtures (1) and springs (2) on reflecting tail light (3) must not be damaged.

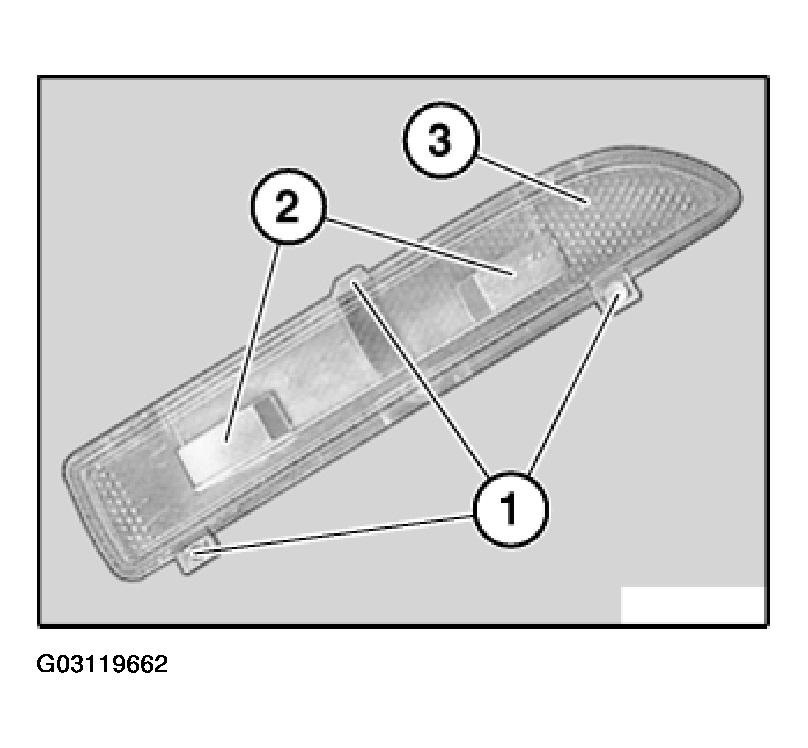

Fig 2: Identifying Fixtures And Springs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fixtures (1) in bumper (2) must not be damaged.

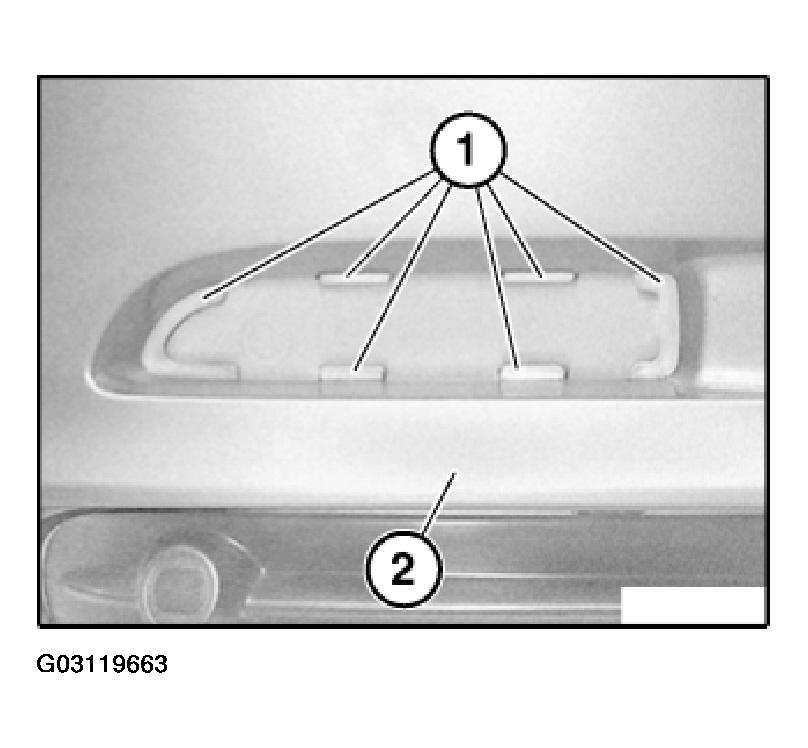

Fig 3: Identifying Fixtures In Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
