51 46 050 Removing And Installing/Replacing Finisher For Top Of Rear Apron

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Replacing left trunk wheel housing trim, refer to REMOVING AND INSTALLING/REPLACING TRUNK WHEEL HOUSING TRIM, LEFT .

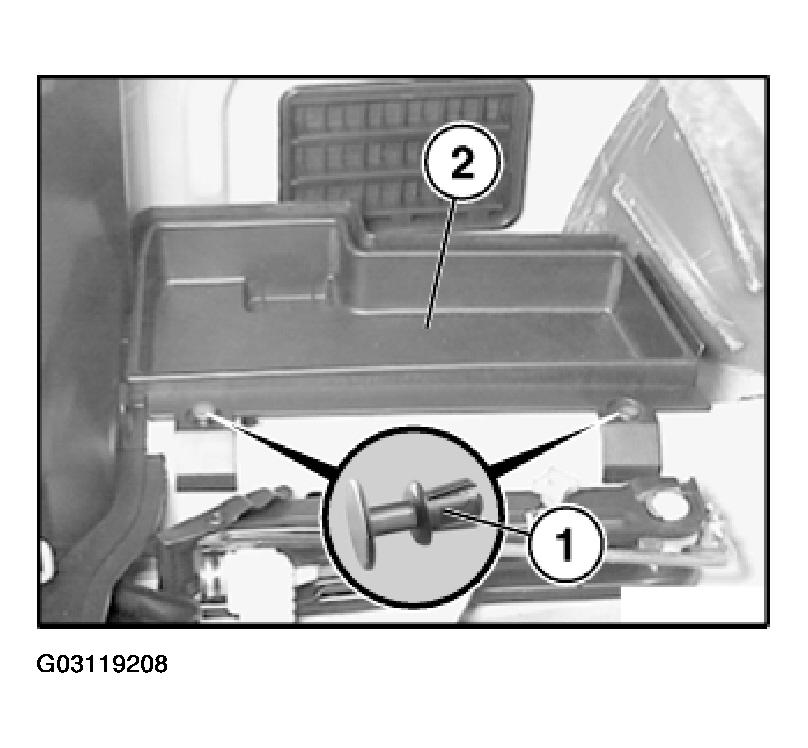

Release expansion rivets (1) and remove tray (2).

Fig 1: Identifying Expansion Rivets

G03119208

Courtesy of BMW OF NORTH AMERICA, INC.

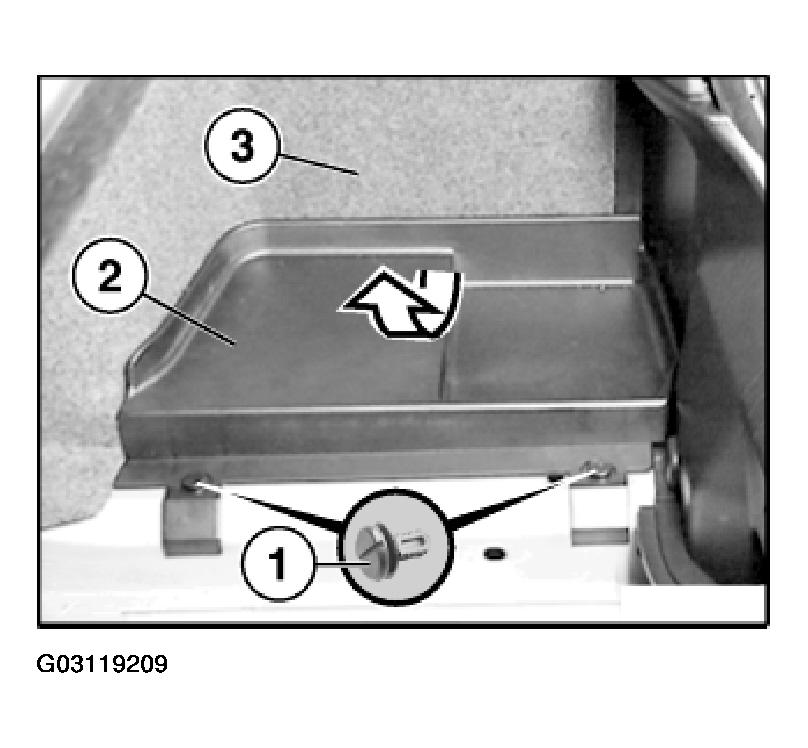

Version with battery in luggage compartment:

Turn rotary clip (1) through 90° and feed shelf (2) out of trunk wheel arch trim (3).

Fig 2: Locating Rotary Clip

G03119209

Courtesy of BMW OF NORTH AMERICA, INC.

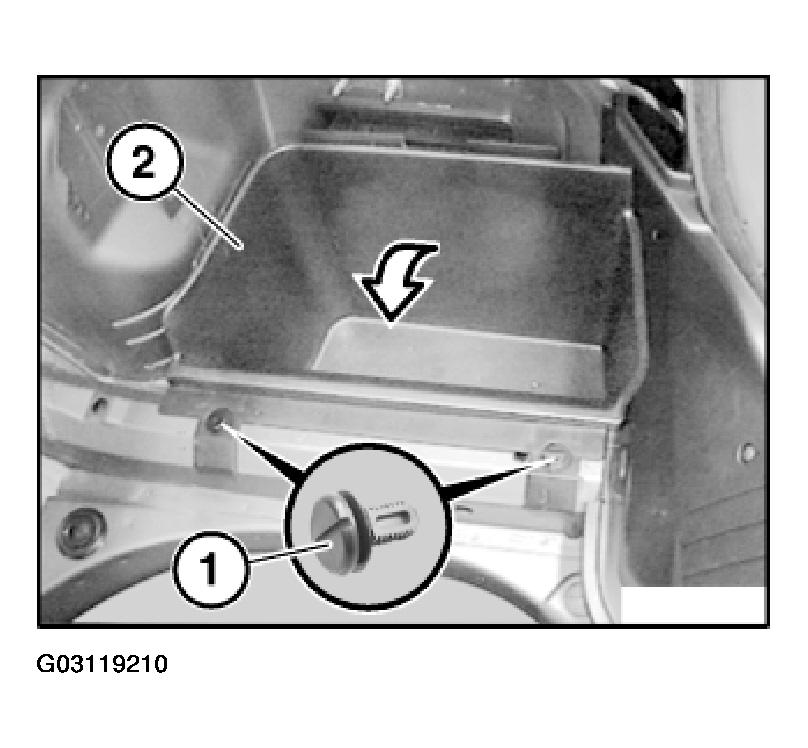

Version with battery in engine compartment:

Replace right trunk wheel housing trim, refer to REMOVING AND INSTALLING/REPLACING RIGHT TRUNK WHEEL ARCH TRIM .

Turn rotary clip (1) through 90° and remove shelf (2).

Fig 3: Replacing Right Trunk Wheel Housing Trim

G03119210

Courtesy of BMW OF NORTH AMERICA, INC.

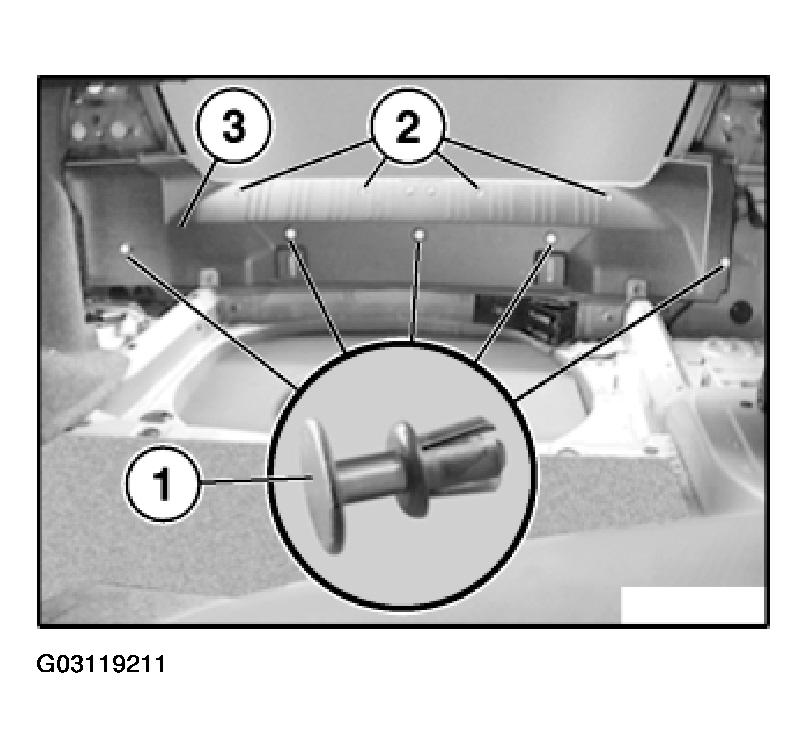

Release expansion rivets (1).

Lever out caps (2).

Release screws and remove trim (3).

Fig 4: View Of Expansion Rivets

G03119211

Courtesy of BMW OF NORTH AMERICA, INC.

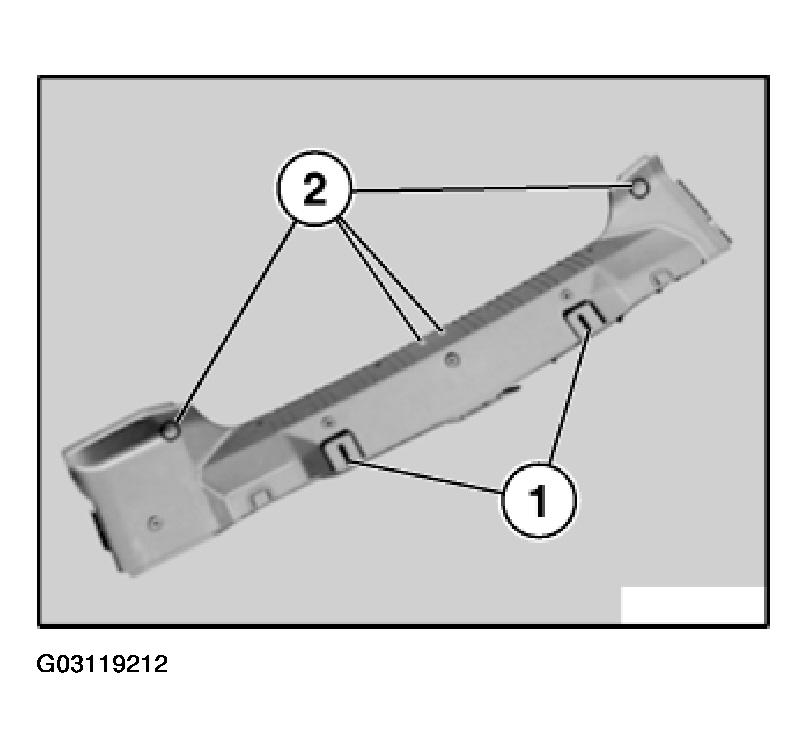

Replacement only:

Lever out trims (1) and caps (2).

Fig 5: Identifying Trims And Caps

G03119212

Courtesy of BMW OF NORTH AMERICA, INC.
