51 16 040 Replacing Housing On Left Or Right Door Mirror (M3)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove drive for electrically adjustable door mirror. Refer to 67 13 005 REPLACING DRIVE UNIT FOR ELECTRICAL .

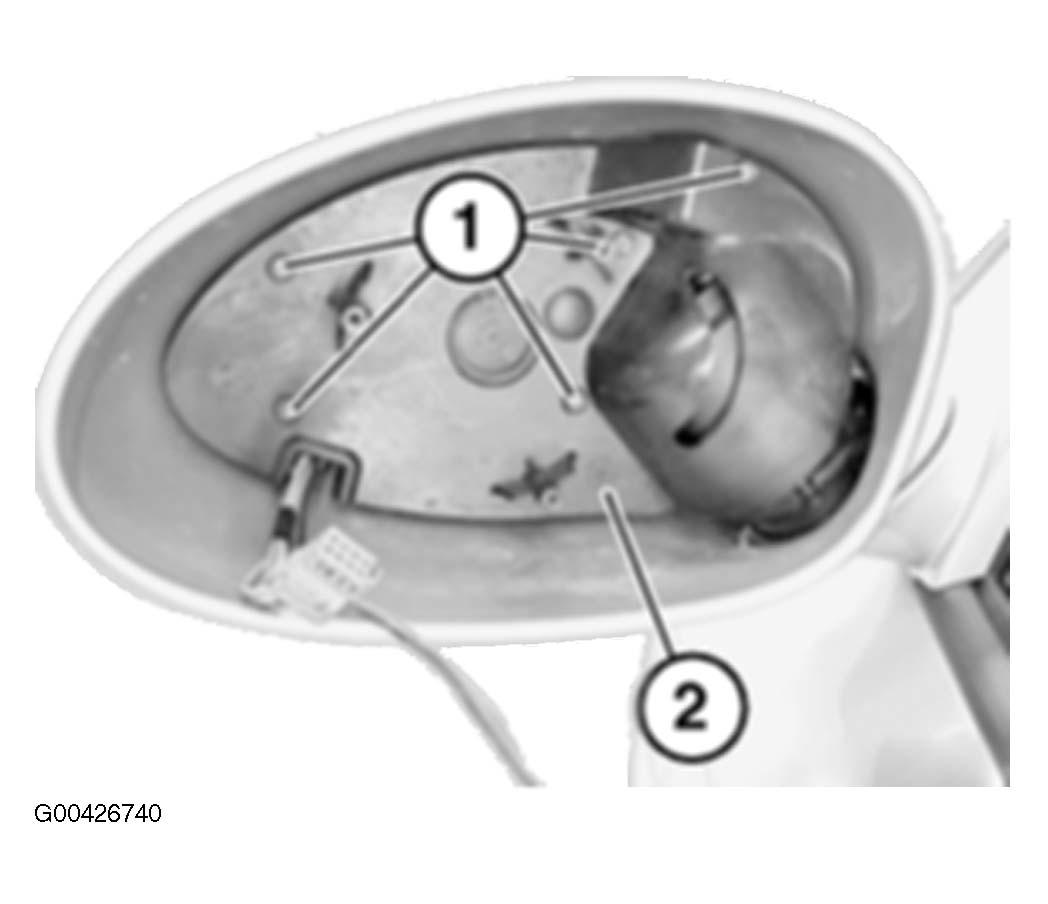

Release screws (1) and remove housing support plate (2).
Installation:
Tightening torque, refer to 51 16 9AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .
Installation:

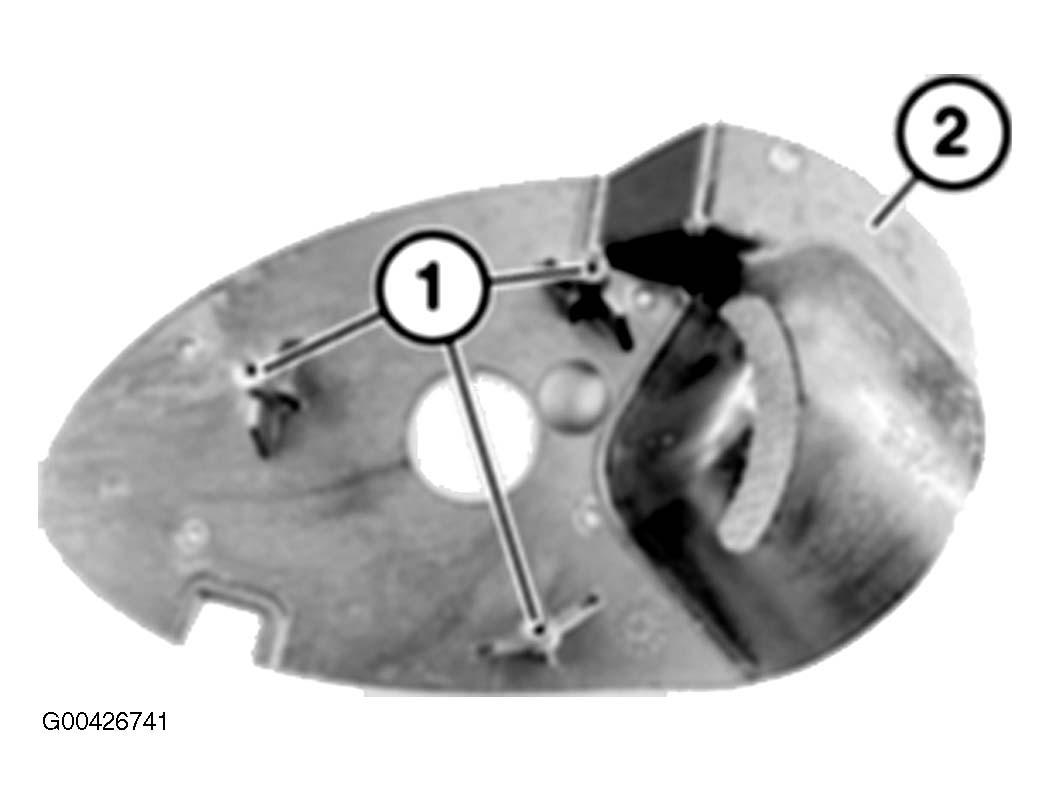

Threads (1) of housing support plate (2) must not be damaged.

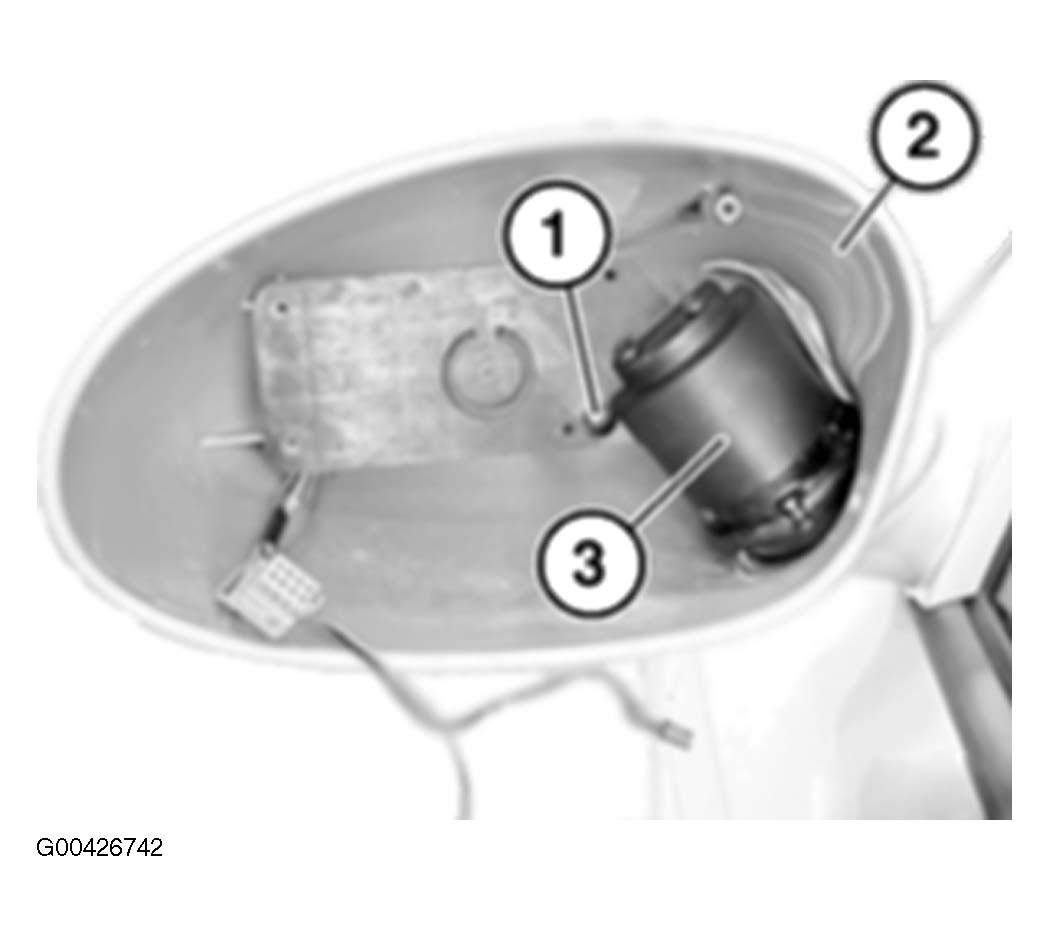

Release screw (1).
Feed housing (2) out of carrier plate (3) and remove.
Installation:
Tightening torque, refer to 51 16 9AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .
Installation:

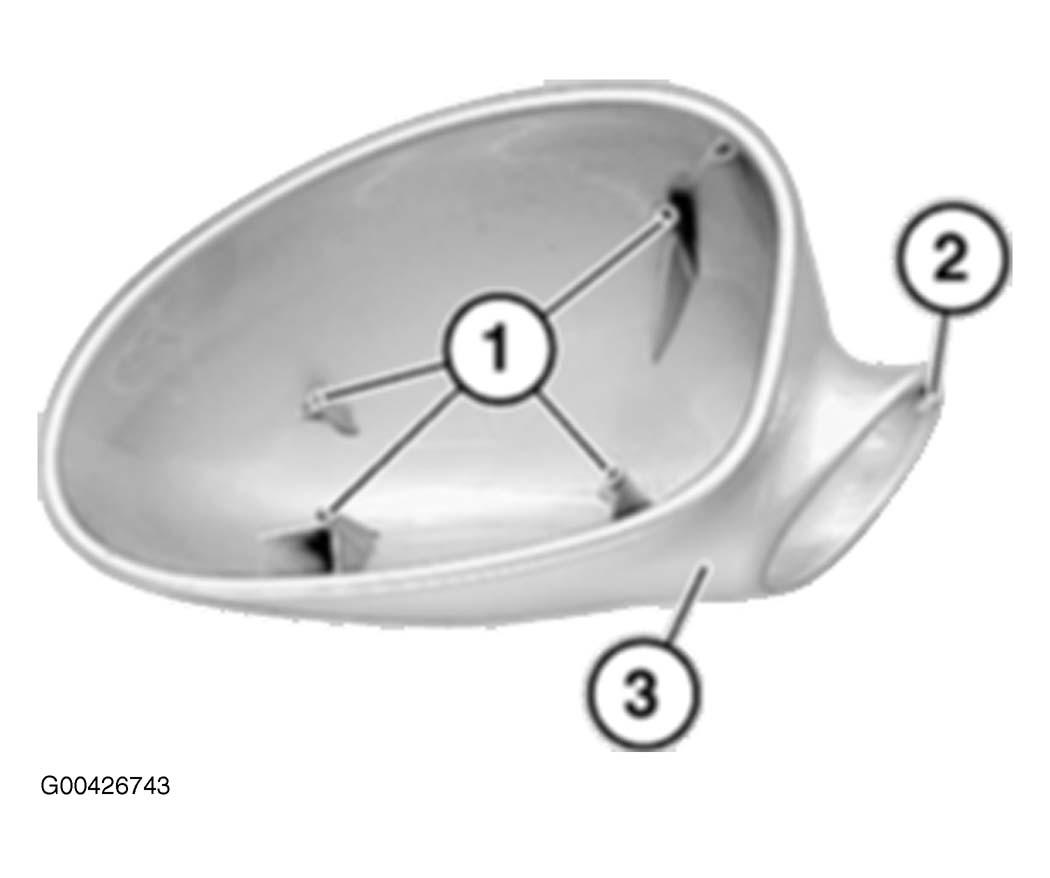

Threads (1) and guide (2) on housing (3) must not be damaged.
Check function.
