51 36 095 Replacing Cover On Side Window (Hinged Window), Rear Left Or Right (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

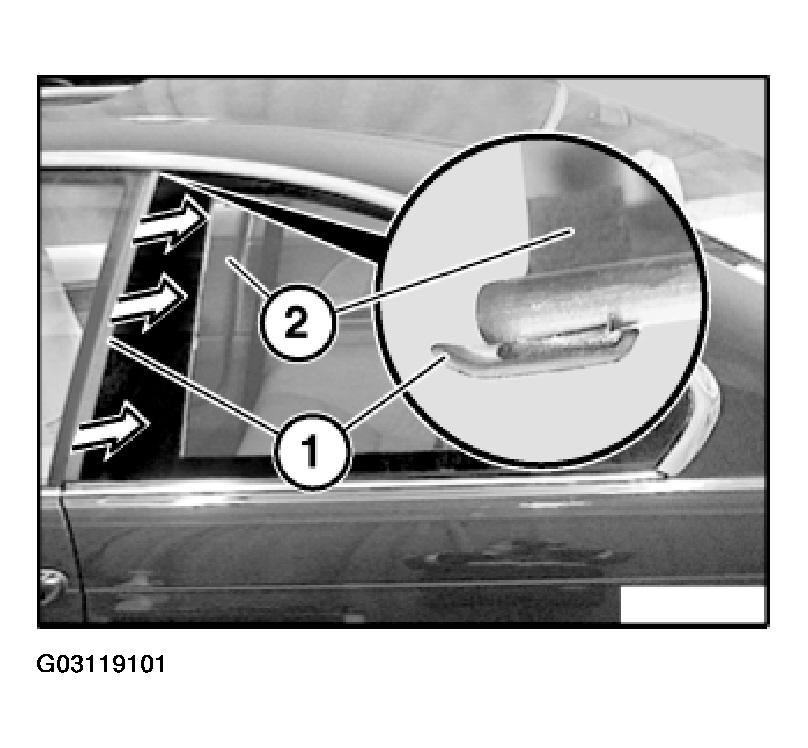

Detach cover (1) from hinged window (2).

Fig 1: Detaching Cover From Hinged Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean glued area.

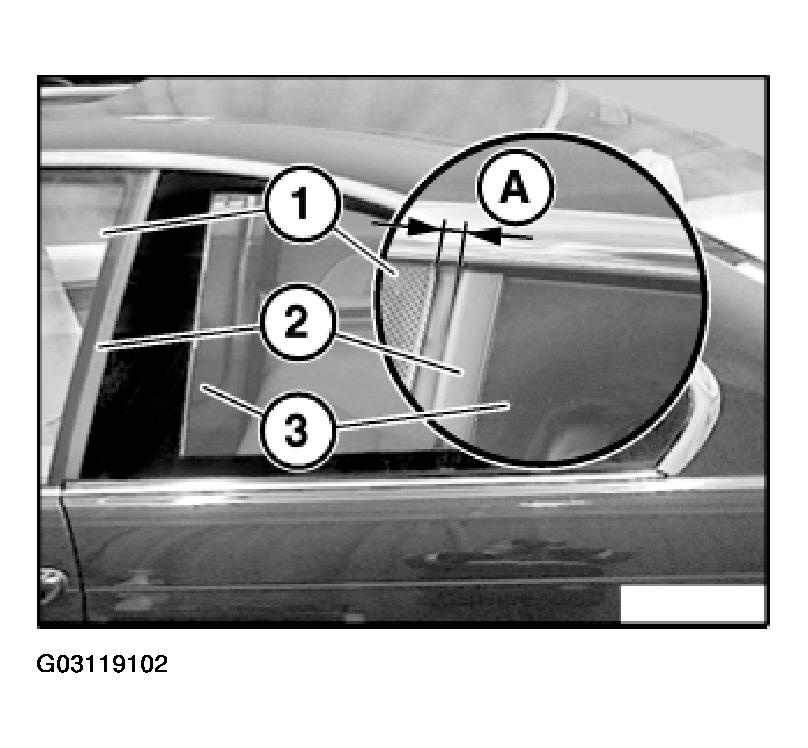

Glue cover (2) at distance (A) to door window (1) onto hinged window (3).

A 6 +/- 0.75 mm.

Fig 2: Identifying Application Area For Glue

Courtesy of BMW OF NORTH AMERICA, INC.
