51 41 018 Replacing Speaker Frame On Front Left Or Right Door Trim Panel (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel, refer to REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (COUPE, CONVERTIBLE) .

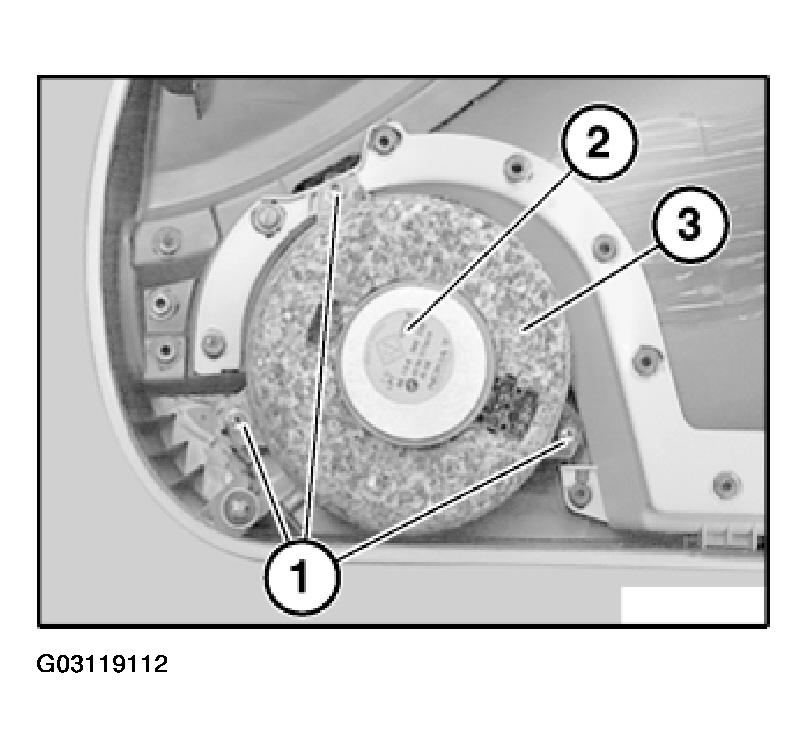

Release screws (1).

Remove speaker (2) with insulation (3).

Fig 1: Releasing Speaker Screws

G03119112

Courtesy of BMW OF NORTH AMERICA, INC.

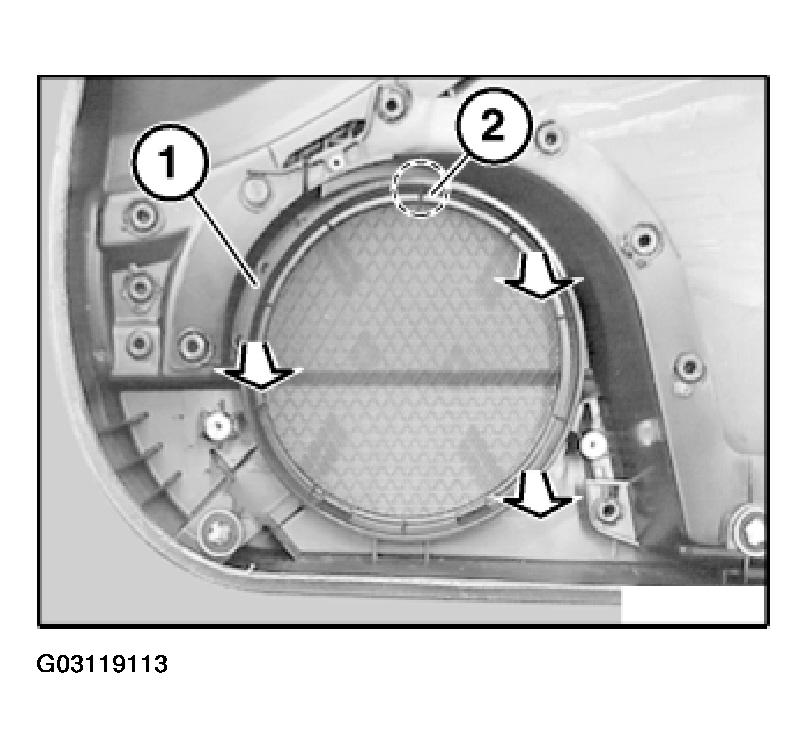

Detach cover (1).

Installation:

Fit cover (1) with path (2) at top/center on speaker frame.

Fig 2: View Of Speaker Cover
Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: When removing speaker frame (1), do not under any circumstances damage plastic pins (3).

Release plastic welds (2).

Fig 3: Locating Plastic Pins In Speaker Frame

G03119114

Courtesy of BMW OF NORTH AMERICA, INC.

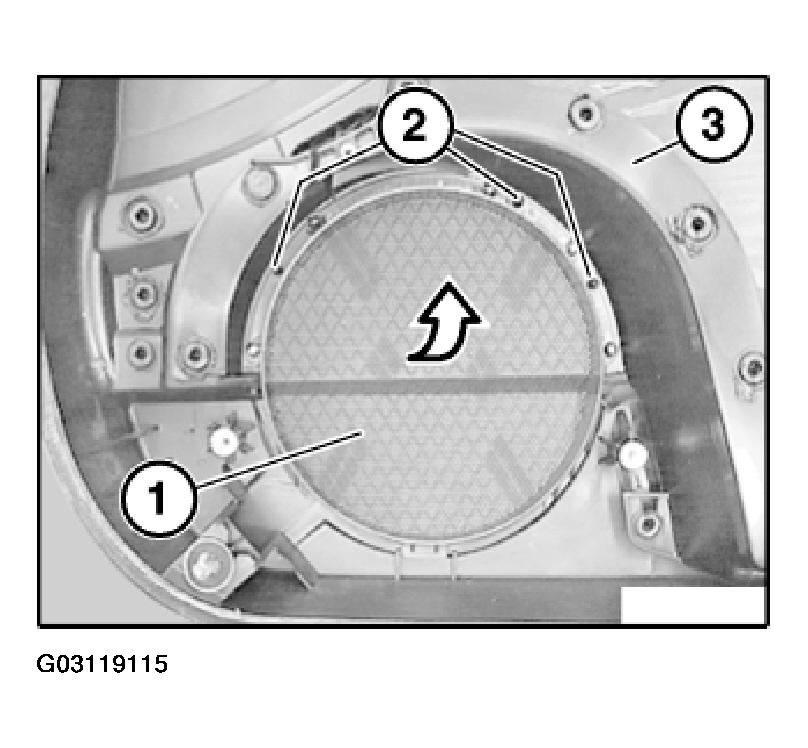

Lever speaker frame (1) out of plastic pins (2) and pull towards rear/top out of door trim panel (3).

Fig 4: Removing Speaker Frame From Plastic Pins

G03119115

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

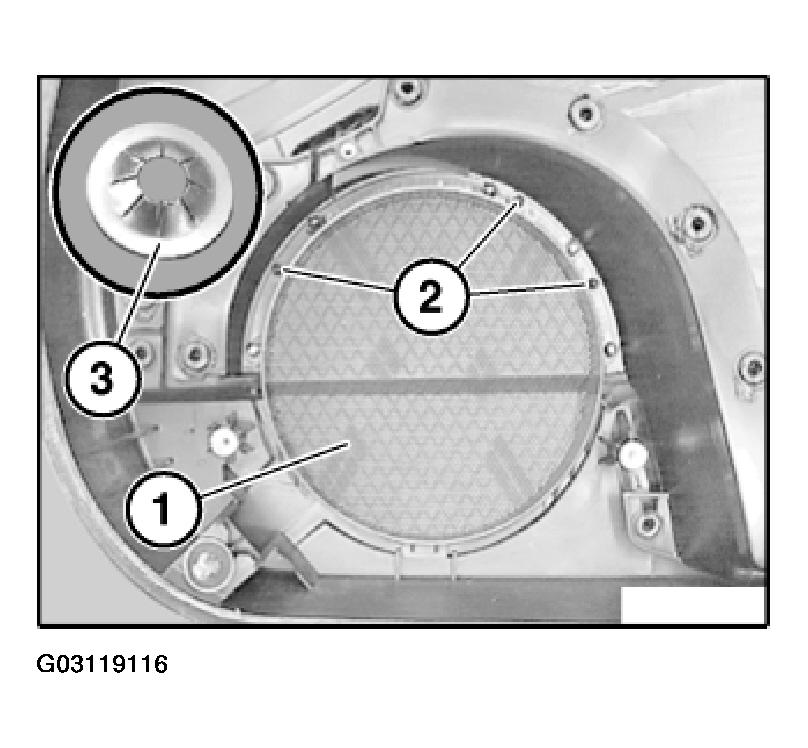

Install new speaker frame (1).

Push locking washers (3) onto plastic pins (2).

Fig 5: View Of Lock Washers On Plastic Pins

G03119116

Courtesy of BMW OF NORTH AMERICA, INC.
