51 41 001 Replacing Door Trim Panel, Front Left Or Right (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove armrest on front left or right door, refer to REMOVING AND INSTALLING ARMREST ON FRONT LEFT OR RIGHT DOOR (COUPE) .
Remove inside door opener on front left or right door, refer to REMOVING AND INSTALLING/REPLACING INSIDE DOOR OPENER FOR FRONT LEFT OR RIGHT DOOR (COUPE) .

Release screws (1).

Remove speaker (2) with insulation (3).

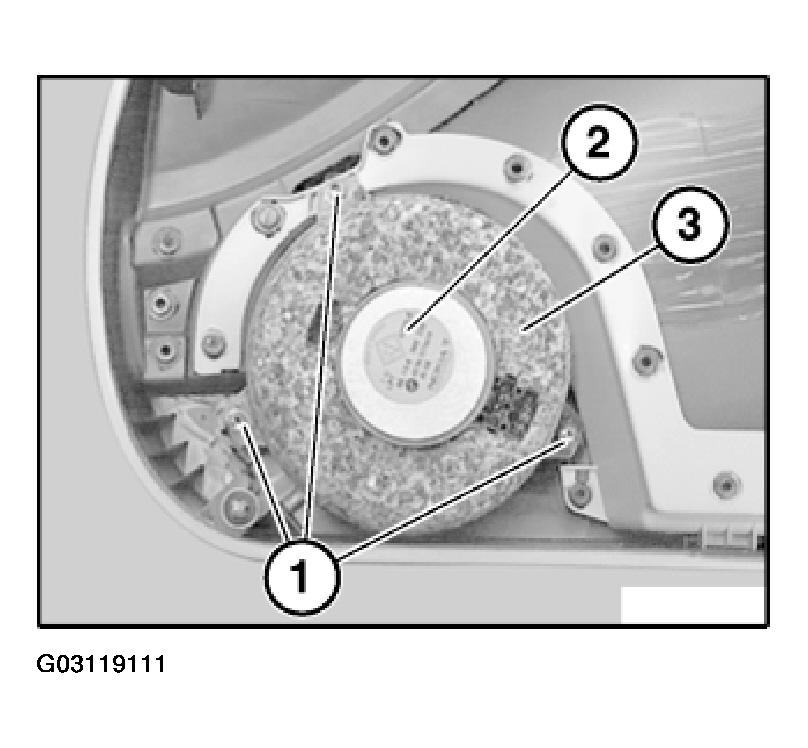

Fig 1: View Of Speaker With Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lever out sleeve for unlocking button.
