51 47 000 Removing And Installing/Replacing Front Left Or Right Entrance Cover Strip (Inside) (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Using special tool 00 9 318 (universal wedge), lever entrance cover strip (1) at front out of first clip (2) towards top.

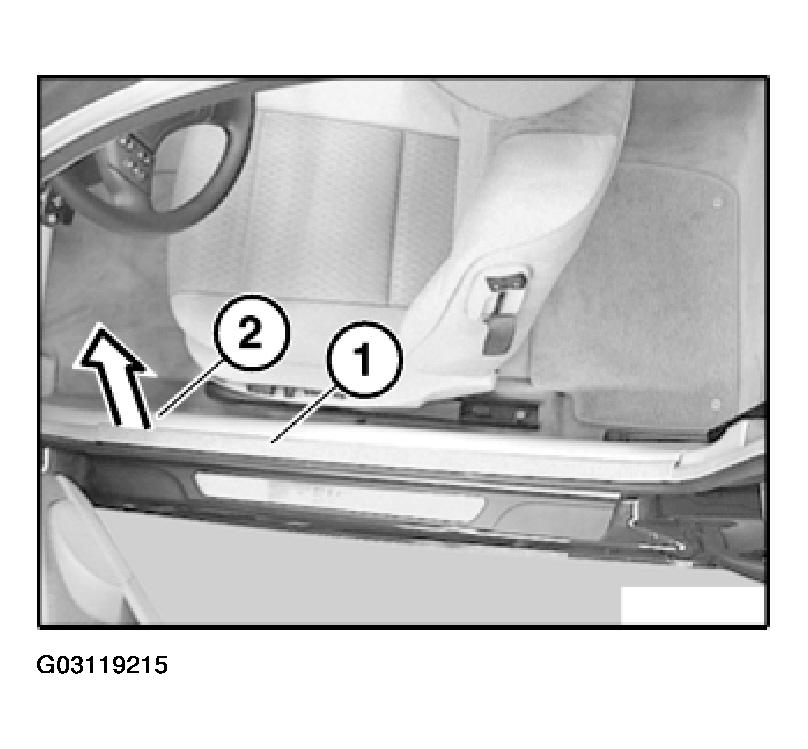

Fig 1: Locating Entrance Cover Strip Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Press radius (2) of entrance cover strip (1) downwards and at same time slide forward out of clips.

Remove entrance cover strip (1).

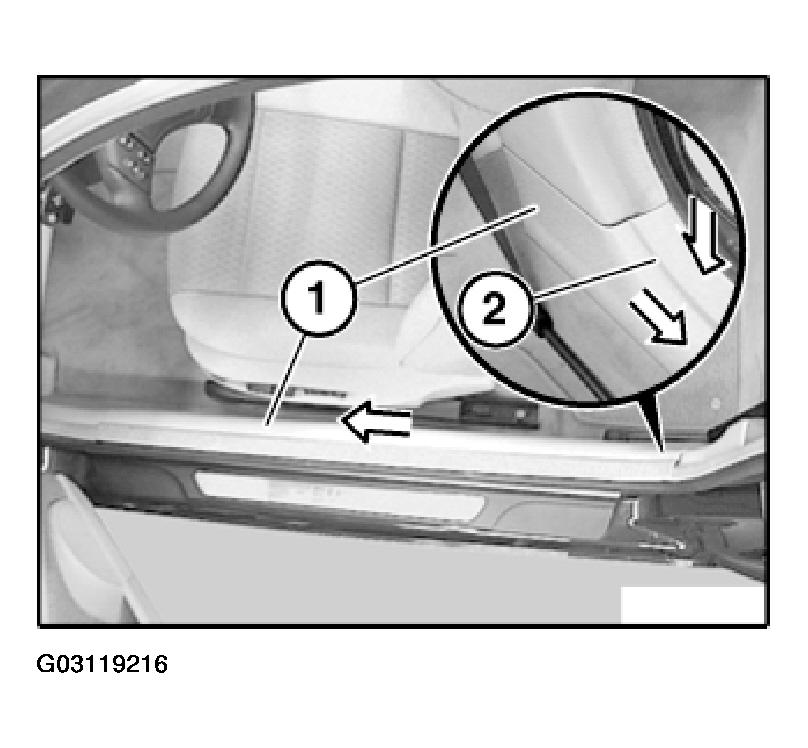

Fig 2: Identifying Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out clips (1) with pliers (head of pliers surface-ground).

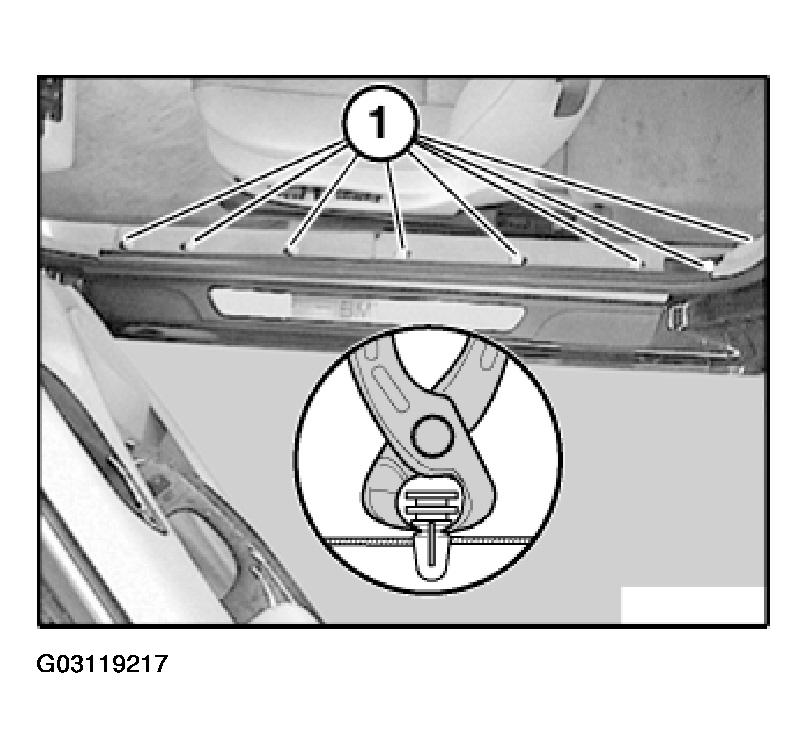

Fig 3: Removing Clips With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push clips (1) onto entrance cover strip (2).

If necessary, replace defective clips (1).

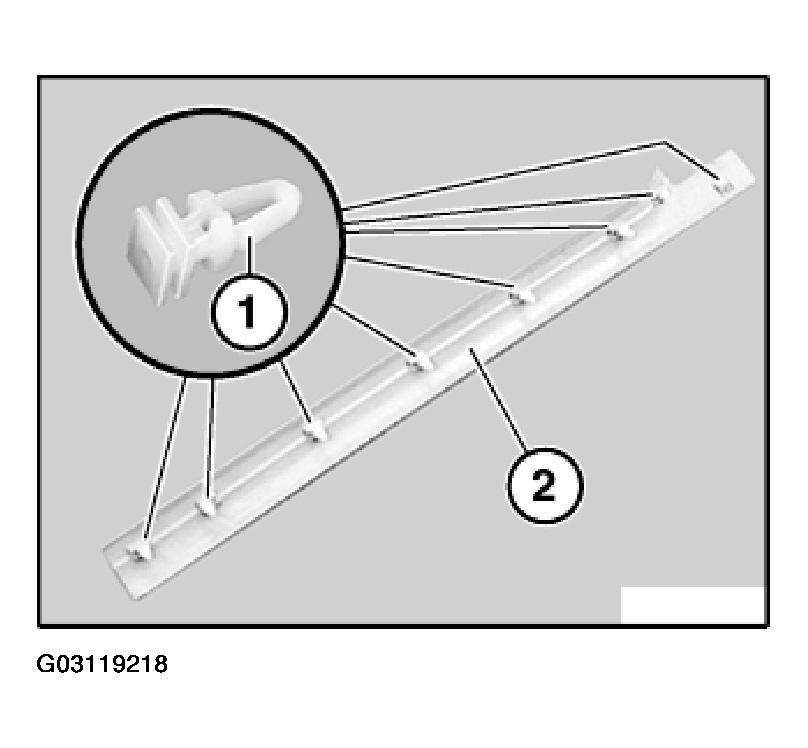

Fig 4: View Of Clips In Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
