51 47 000 Removing And Installing/Replacing Front (Inside) Left Or Right Entrance Cover Strip

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove entrance cover strip (1) with clips (2) towards top. If necessary, lever out clips from floor plate.

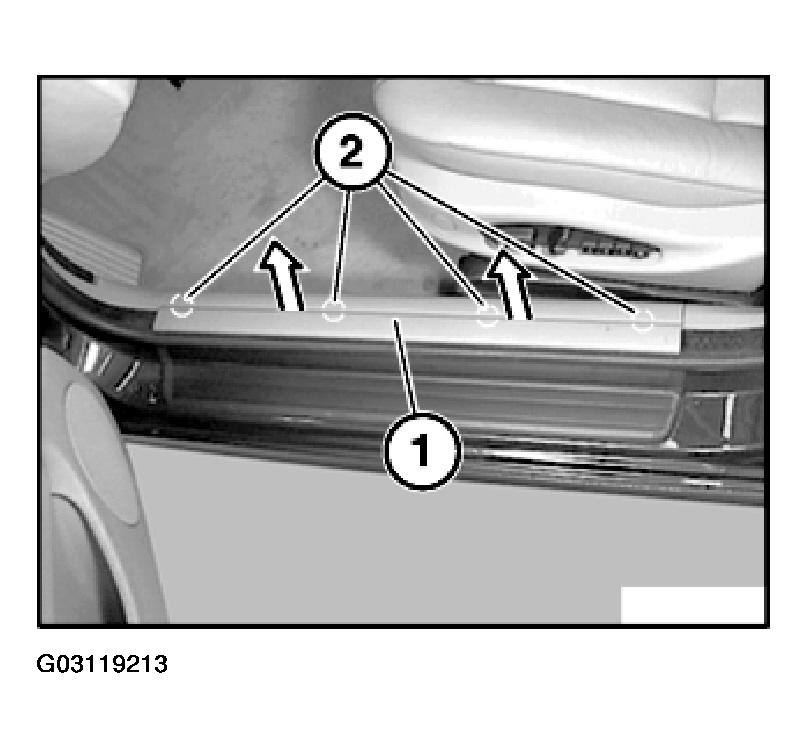

Fig 1: Removing Entrance Cover Strip With Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push clips (1) onto entrance cover strip (2).

If necessary, replace faulty clips (1).

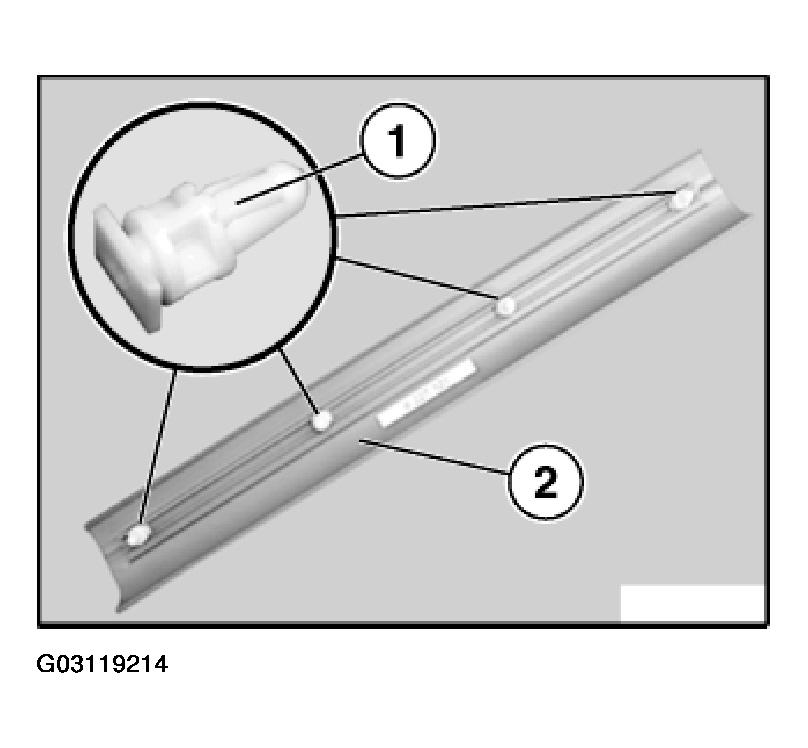

Fig 2: Locating Clips In Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
