11 40 000 Checking engine oil pressure (S50 / S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 4 390
13 3 061
13 3 063

NOTE: When the main flow oil-filter cover is released, the oil flows from the oil-filter housing back into the sump.

Unfasten oil filter cover.

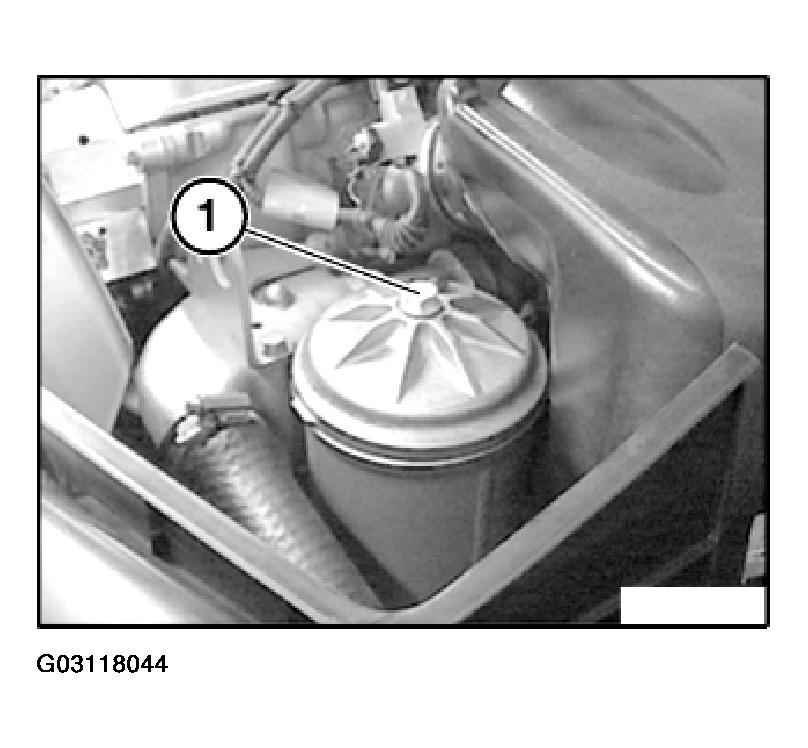

Fig 1: Unfastening Oil Filter Cover

G03118044

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Tightening torque, refer to 11 42 2AZ in ENGINE - TIGHTENING TORQUES .

Installation:

Replace sealing ring in oil-filter cover and sealing ring on bolt.

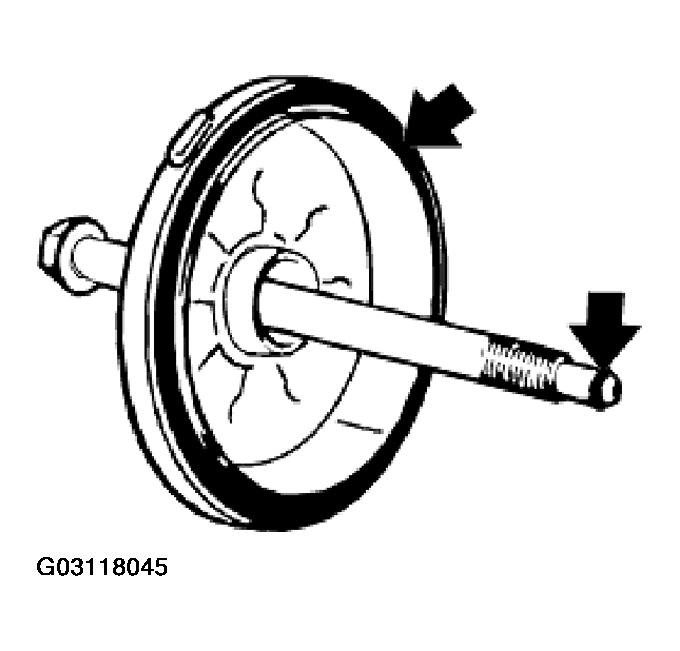

Fig 2: Locating Sealing Rings

G03118045

Courtesy of BMW OF NORTH AMERICA, INC.

Check sealing rings (1 and 2) on special tool 11 4 390, replace if necessary.

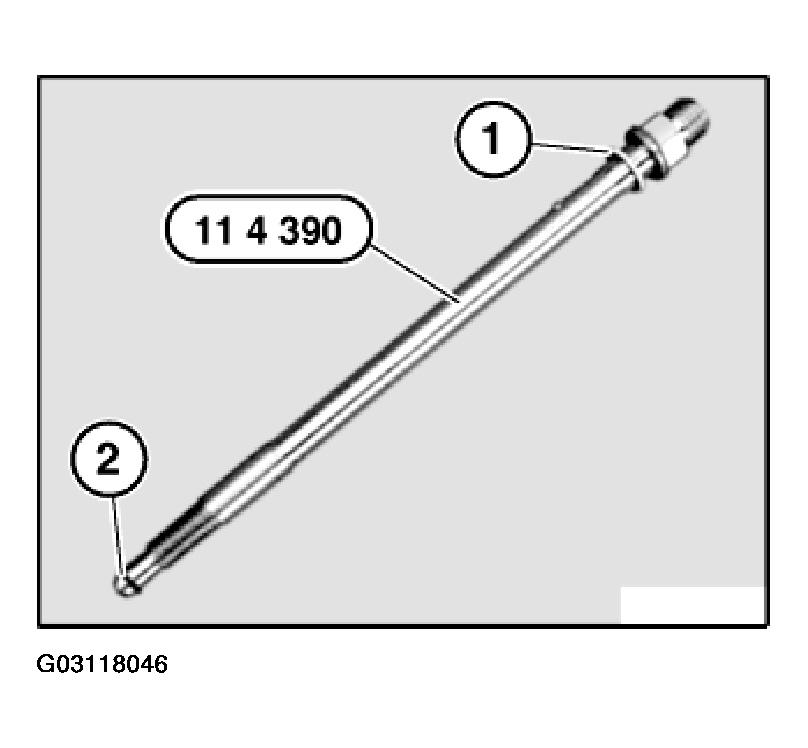

Fig 3: Identifying Sealing Rings On Special Tool

G03118046

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 4 390 and tighten down oil filter cover.

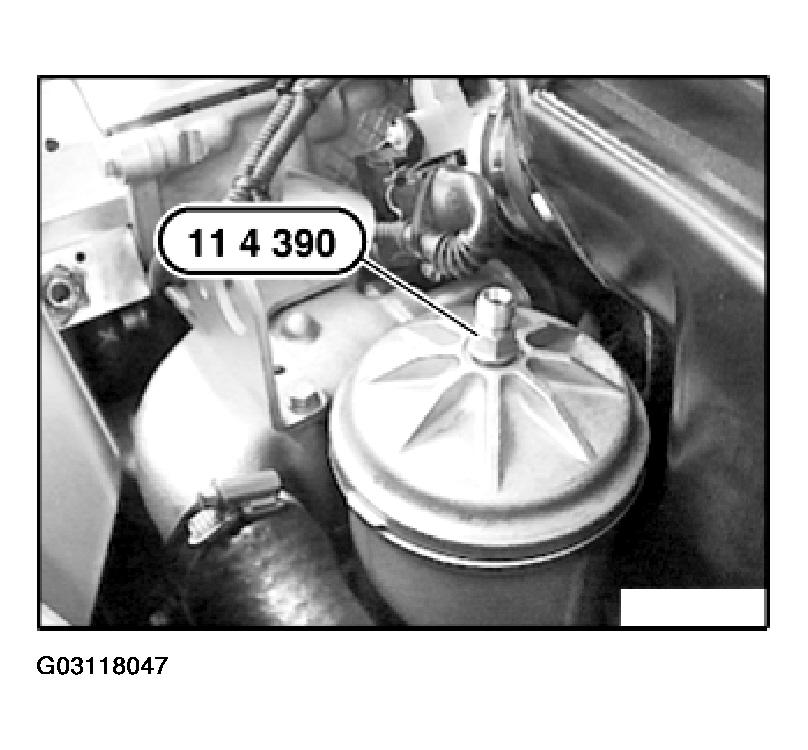

Fig 4: View Of Adapter Screw

G03118047

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tools 13 3 061/13 3 063.

Start engine and check engine oil pressure. Refer to ENGINE - TECHNICAL DATA .

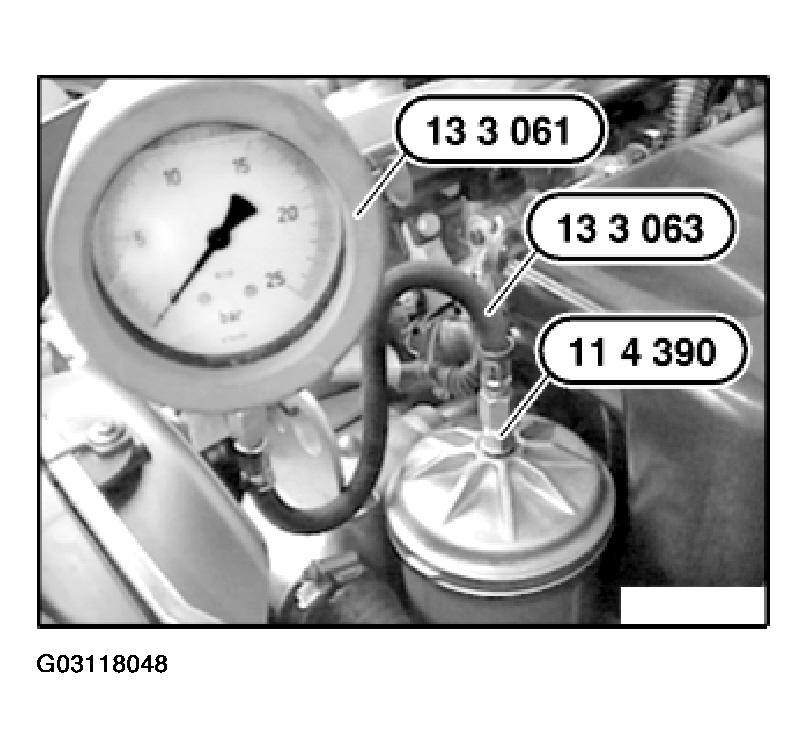

Fig 5: Identifying Pressure Gauge

G03118048

Courtesy of BMW OF NORTH AMERICA, INC.
