11 12 729 Checking Cylinder Head For Leaks - Cylinder Head Removed (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 1 402
11 1 404
11 1 431
11 1 433

Seal off coolant openings with following special tools.

Special tool 11 1 431
Special tool 11 1 433
Special tool 11 1 402
Special tool 11 1 404

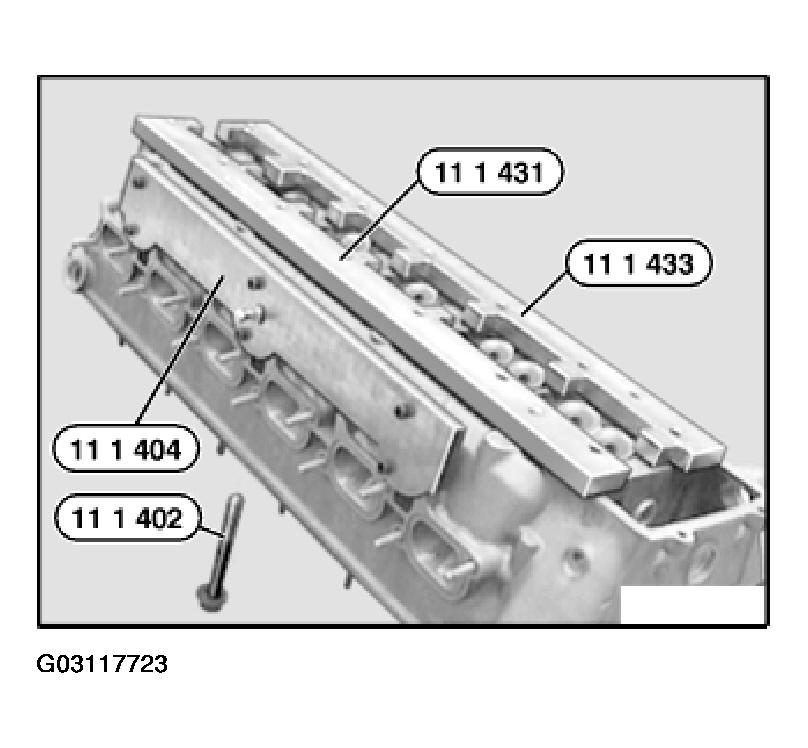

Fig 1: Sealing Off Coolant Openings With Special Tools
Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air supply to special tool 11 1 404.

Immerse cylinder head in a water bath.

Test pressure: 4.5 bar.

Check cylinder head for escaping air (cracks).

NOTE: If necessary, soften the bath water with a cleaning agent.

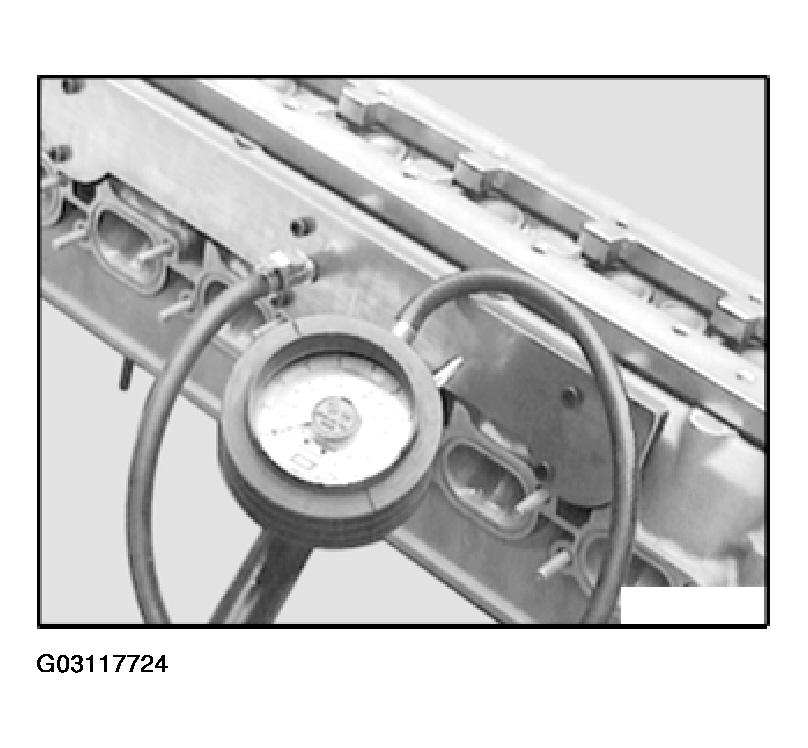

Fig 2: Connecting Compressed Air Supply To Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
