11 12 503 Disassembling And Assembling Cylinder Head - Cylinder Head Removed (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 1 490
11 0 192
11 0 342
11 0 343
11 0 345
11 1 045
11 1 065
11 1 067
11 1 071
11 3 411
11 3 412

Provide special tools for removing valve springs.

Secure special tool 11 1 065 to special tool 00 1 490.

Special tool 11 1 071
Special tool 11 1 067
Special tool 11 0 192
Special tool 11 1 045

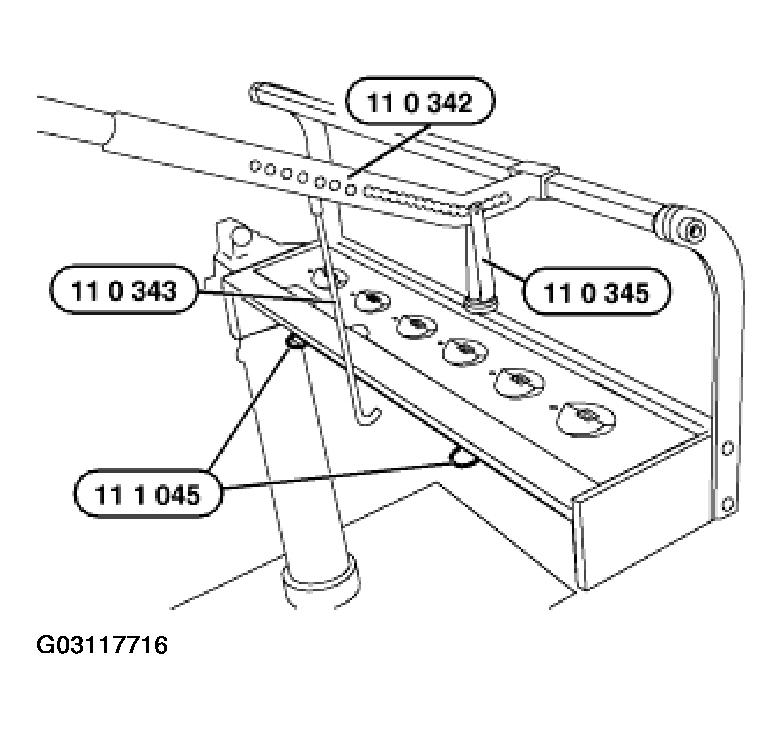

Fig 1: Identifying Special Tools For Removing Valve Springs
Courtesy of BMW OF NORTH AMERICA, INC.
Special tool 11 0 345
Special tool 11 0 342
Special tool 11 0 343
Special tool 11 3 411

Secure special tool 11 3 411 with special tool 11 1 045 in special tool 11 1 065.

Assemble special tools.

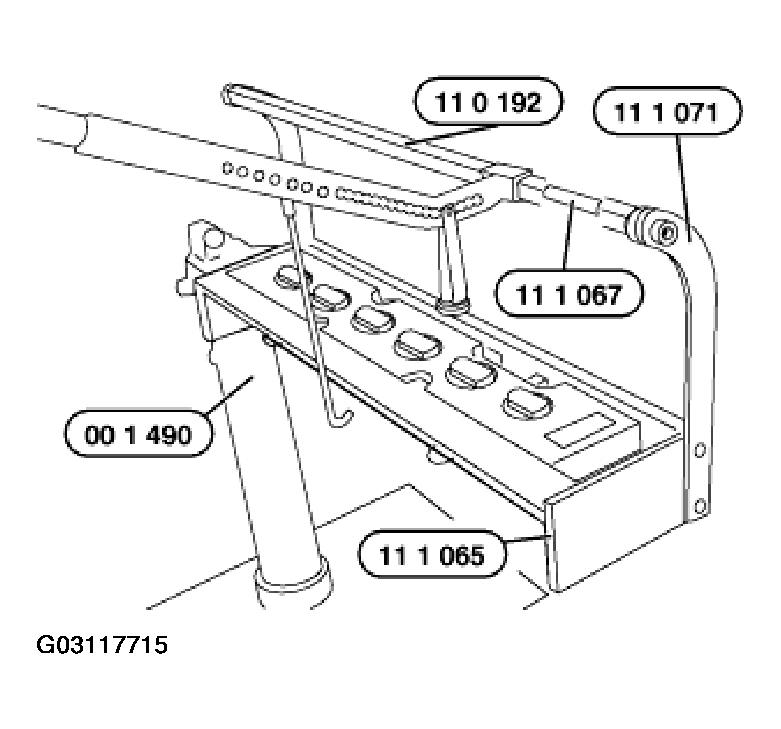

Fig 2: View Of Special Tools For Removing Valve Springs

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cylinder head to special tool 11 1 065.

NOTE: Secure cylinder head from below through locating board with special tool 11 3 412 in spark plug threads.

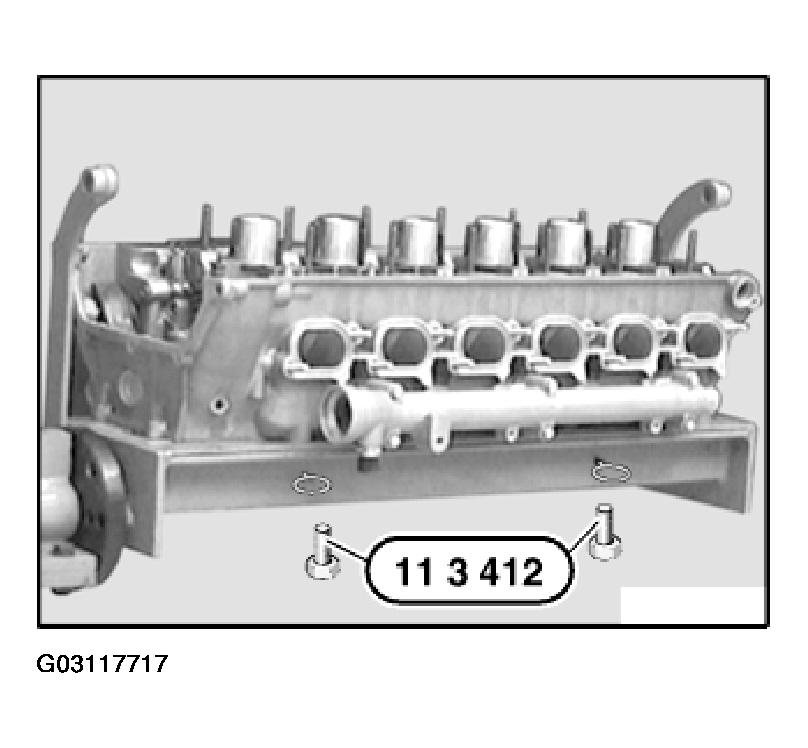

Fig 3: Securing Cylinder Head To Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove coolant pipe (1).

Installation:

Clean sealing surface.
Replace O-rings.

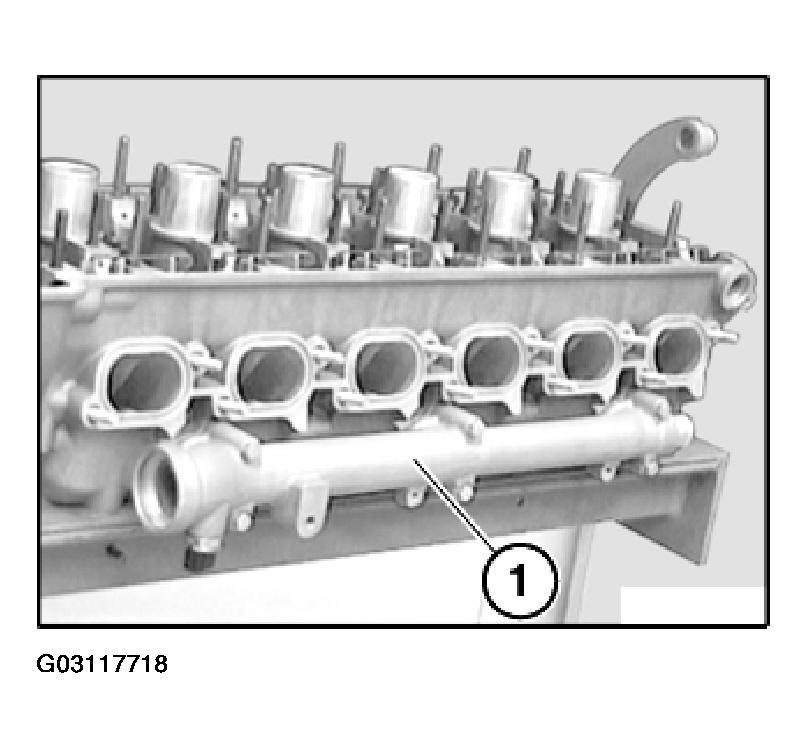

Fig 4: Removing Coolant Pipe
Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing pin (1) for tensioning rail (2).

Remove tensioning rail (2).

Installation:

Replace sealing ring.
Tightening torque of bearing pin (1) 13 N.m.

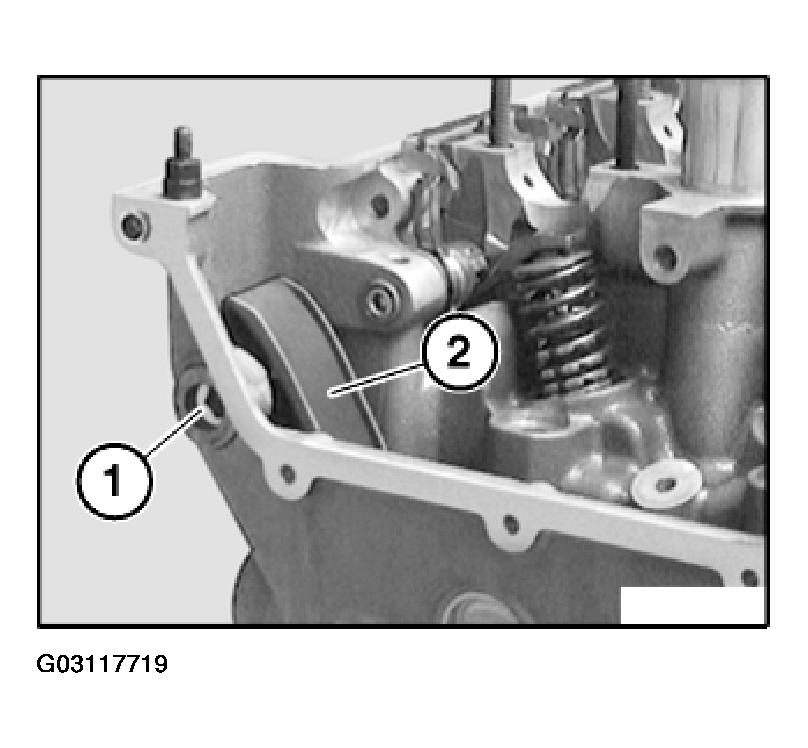

Fig 5: Removing Tensioning Rail
Courtesy of BMW OF NORTH AMERICA, INC.

Remove exhaust and inlet rocker arm shafts. Refer to 11 33 545 REMOVING AND INSTALLING/REPLACING ROCKER ARM SHAFT (S54) .

Remove all valve springs. Refer to 11 34 715 REPLACING ALL VALVE SEALS - CYLINDER HEAD REMOVED (S54) .

Replace all stem seals. Refer to 11 34 560 REPLACING ALL VALVE STEM SEALS - CYLINDER HEAD REMOVED (S50 / S54) .

Remove all valves. Refer to 11 34 552 REMOVING AND INSTALLING OR REPLACING ALL VALVES - CYLINDER HEAD REMOVED (S54) .
