11 21 500 Replacing Crankshaft (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

(Engine removed)
Remove cylinder head. Refer to 11 12 100 REMOVING AND INSTALLING/SEALING CYLINDER HEAD (S54) .
Remove lower timing case cover.
Remove pistons. Refer to 11 25 530 REMOVING AND 530 INSTALLING/REPLACING ALL PISTONS (S54) .

Remove flywheel. See 11 22 500 Removing And Installing Or Replacing Flywheel (M52/S52/M52TU/M54/S54)

Remove end cover at rear. This task is described in the article "Replacing crankshaft radial seal".

Checking axial clearance:

If permitted end float is exceeded, check crankshaft, guide bearing shells and engine block, replacing if necessary. Refer to ENGINE - TECHNICAL DATA .

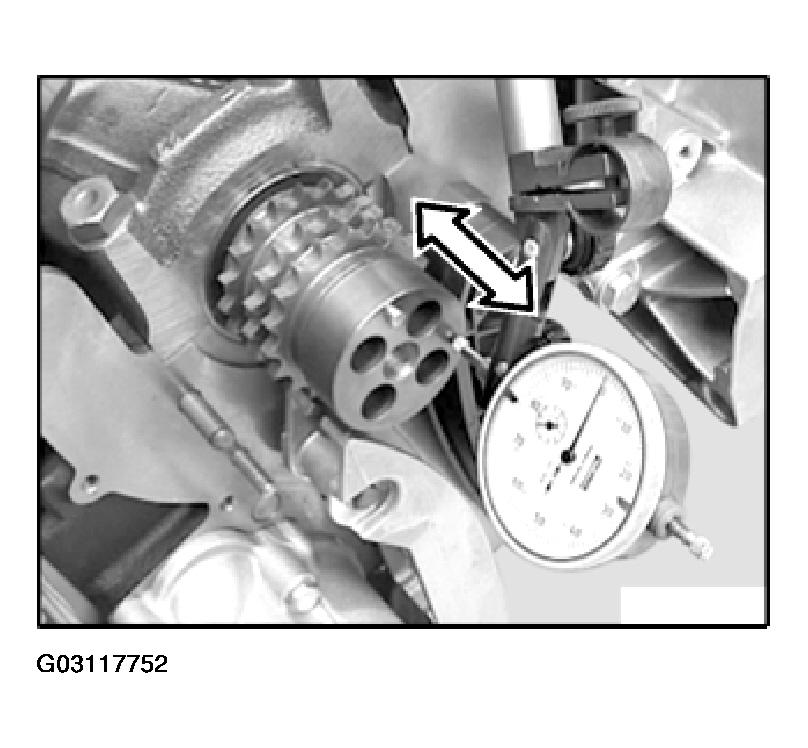

Fig 1: Checking Axial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Holders for oil lines are fitted on main bearing caps 3 and 5.

CAUTION: Holders (1 and 2) are different.

Holder (1) with elongated hole in vertical direction.

Holder (2) with elongated hole in horizontal direction.

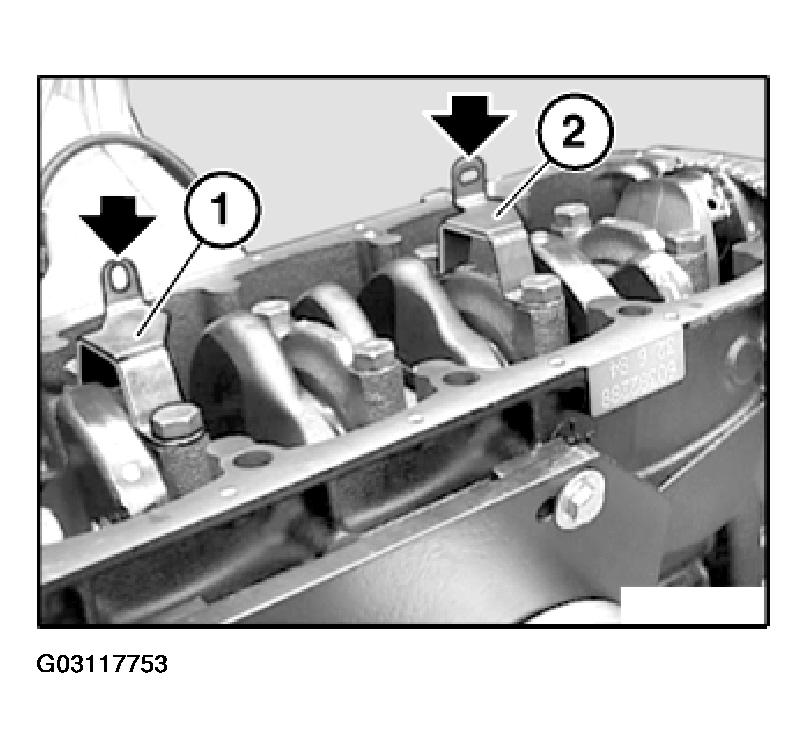

Fig 2: Locating Holders For Oil Lines On Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Main bearing caps 1 to 5 are marked on exhaust side.

Main bearing caps 6 and 7 are not marked.

Main bearing cap 6 is guide bearing.

Remove screws securing main bearing caps.

Remove main bearing caps 1 to 7.

Lever out crankshaft.

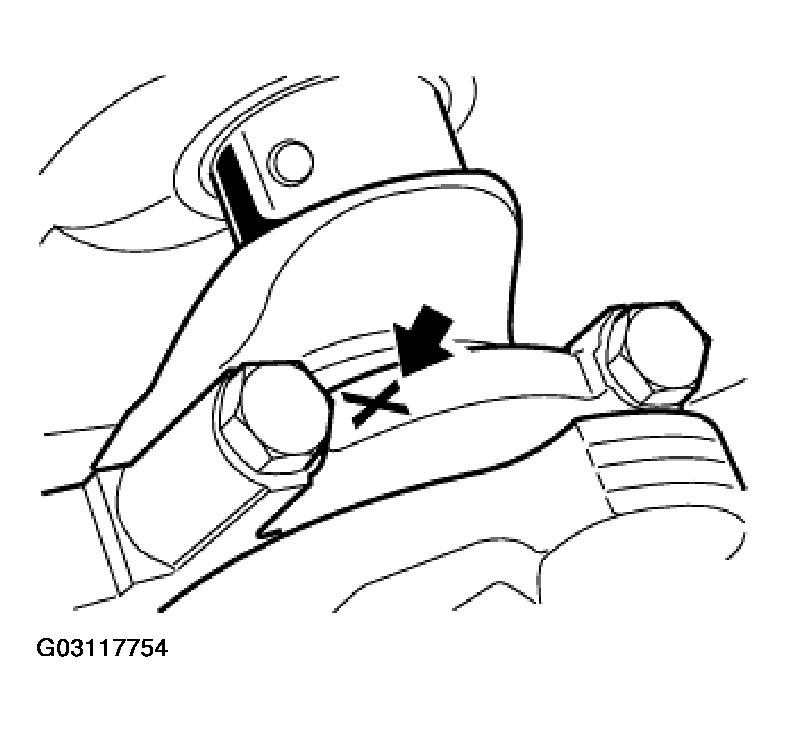

Fig 3: Locating Mark On Main Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The increment gear cannot be released without the screws being damaged or destroyed.

A crankshaft with fitted increment gear is available. If in an exceptional case increment gear has to be removed:

CAUTION: Protect crankshaft against damage.

Release screws, drill out screw heads if necessary.

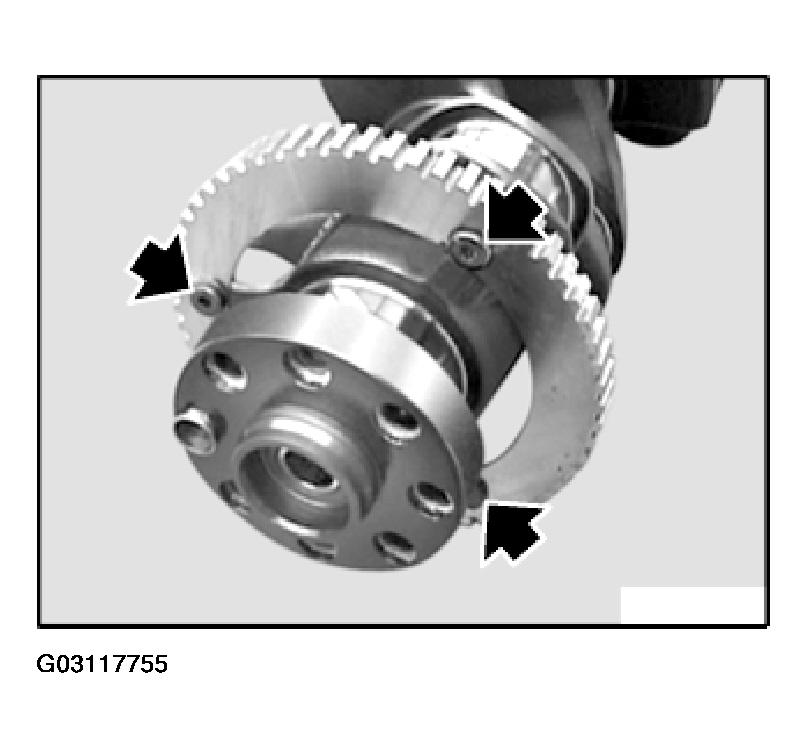

Fig 4: Identifying Increment Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace increment gear and screws.

Tighten down screws to 5 N.m.

Mark 45° angle on screw head and sensor gear.

CAUTION: Screws can be tightened down to max. 45°.

Tighten down with 40° to 45° torsion angle.

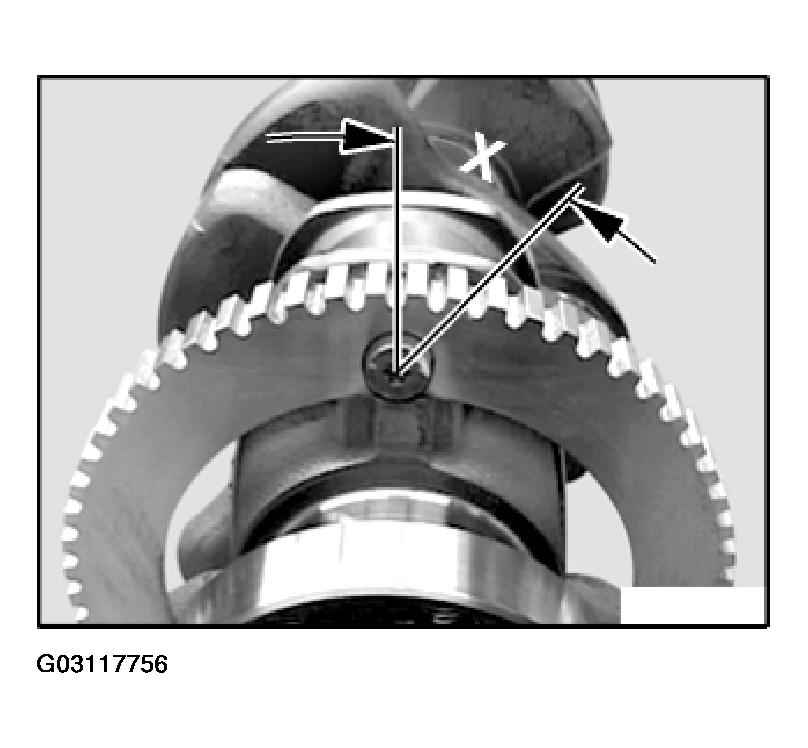

Fig 5: View Of Increment Gear

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove sprocket wheel:

Release screw in bore (1).

Detach sprocket wheel from crankshaft.

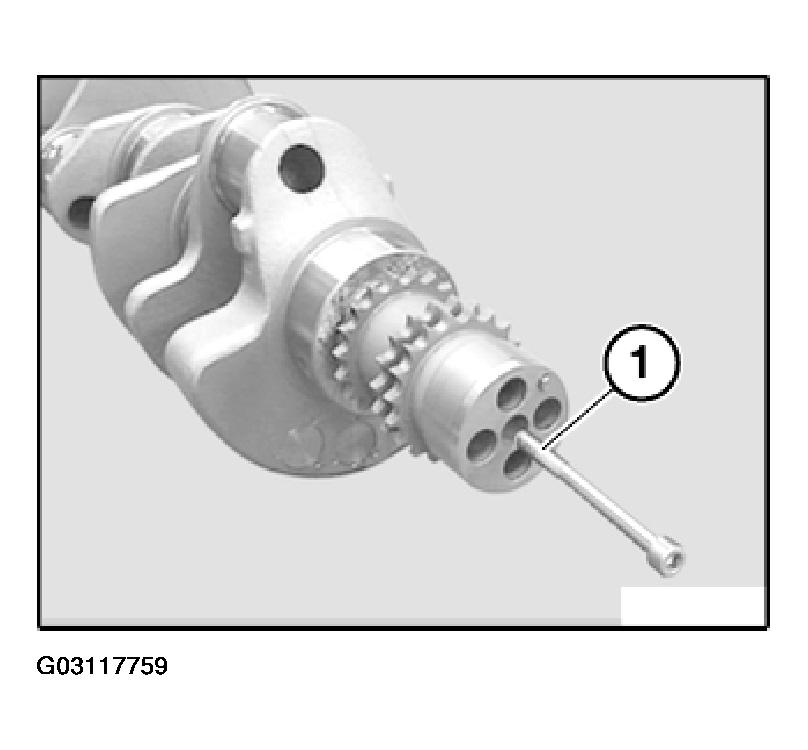

Fig 6: Identifying Screw In Sprocket Wheel Bore

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Sprocket wheel is secured with an adapter sleeve (1) to crankshaft.

Installation:

Check adapter sleeve (1) for damage and correct installation position.

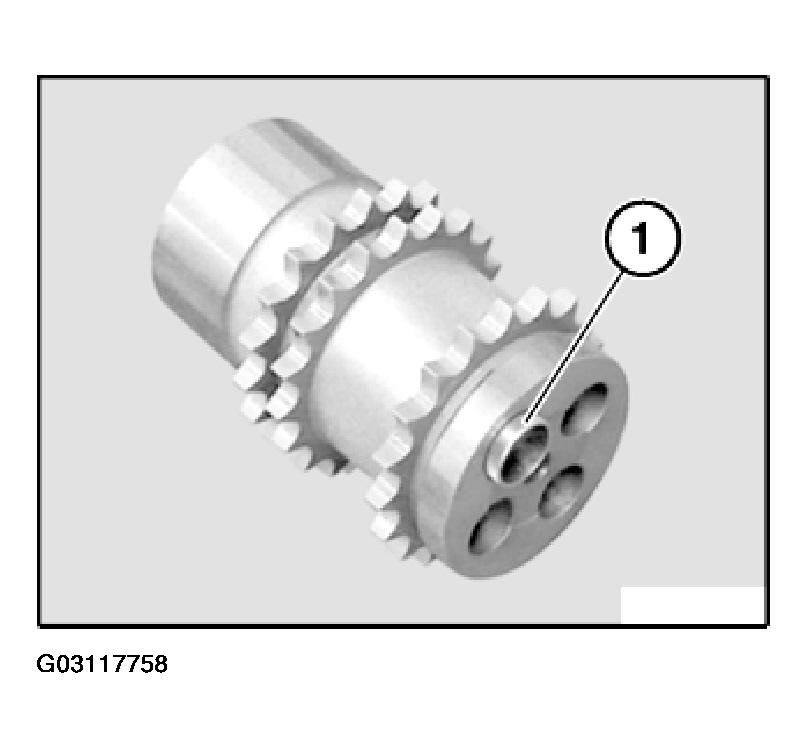

Fig 7: Locating Adapter Sleeve
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align adapter sleeve of sprocket wheel to locating bore of crankshaft and fit sprocket wheel.
Apply a thin coat of screw retaining compound to screw thread (1).

Insert screw.

Tighten down crankshaft sprocket wheel to 10 N.m.

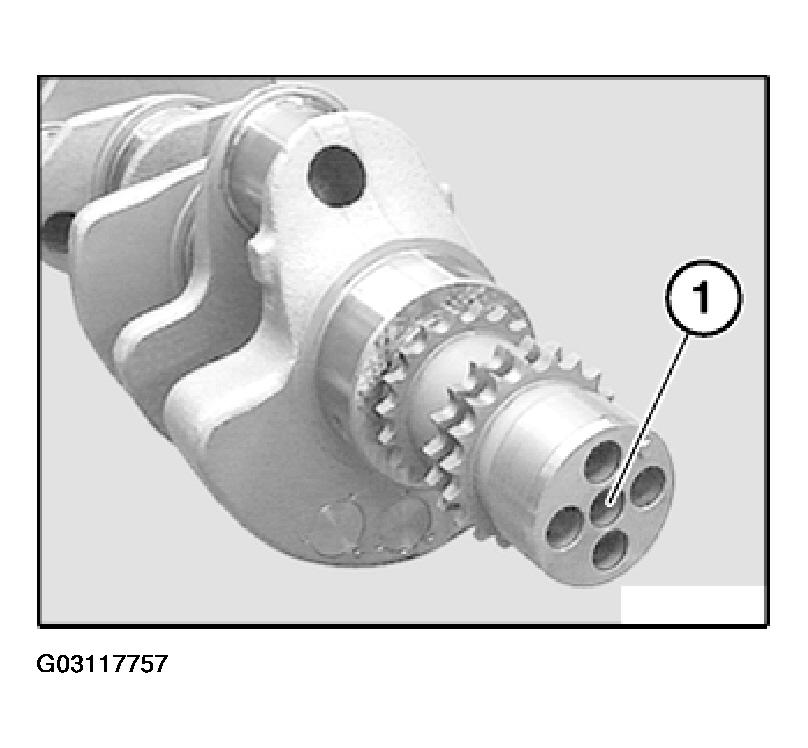

Fig 8: Installing Sprocket Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Observe grinding stage of crankshaft. Refer to ENGINE - TECHNICAL DATA .

Replace main crankshaft bearing shells. Refer to 11 21 531 REPLACING ALL CRANKSHAFT MAIN BEARING SHELLS (S54) .

Replace conrod bearing shells. Refer to 11 24 571 REPLACING ALL CONROD BEARINGS (S54) .

Replace grooved ball bearings in crankshaft. Refer to 11 21 571 REPLACING GROOVED BALL BEARING IN CRANKSHAFT (M52 / S52 / M52TU / M54 / S50 / S54) .
