67 62 000 Removing and installing/replacing flat motor for front left or right power window unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Close window in front door
- Remove sound insulation on front door, refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT

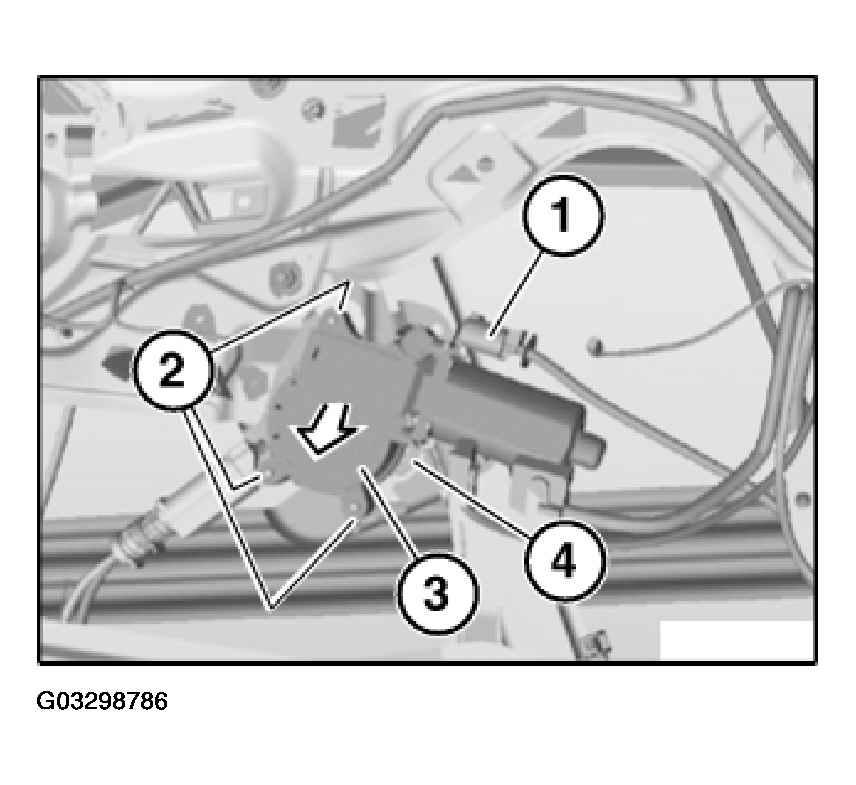

Unfasten plug connection (1) and disconnect.
Release screws (2).
Installation:
Tightening torque, 67 62 1AZ. Refer to ELECTRICAL DRIVES - TIGHTENING TORQUES .
Detach flat motor for window lift (3) in direction of arrow from window lift (4) and remove from door.
Replacement:
A normalization must be carried out in order to activate antitrapping protection.
NOTE:
Carry out following procedure twice for corresponding window.
Operating sequence for normalization:
- Open window completely.
- Operate power window switch in "Close" position (second switch stage).
- Once the upper end position has been reached, hold power window switch down for approx. 1 second more.
Normalization is thus completed.
NOTE:
Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
