67 31 521 Removing and installing/replacing drive unit for seat height adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front seat is removed. Refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT .

Unfasten plug connection (2) and disconnect.

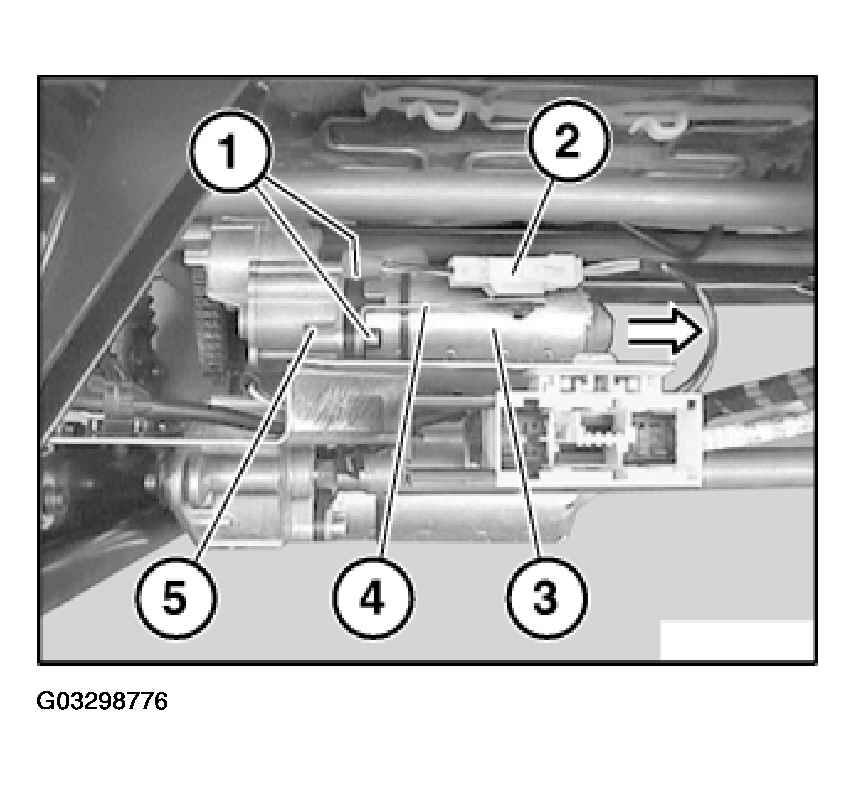

Fig 1: Removing Drive For Seat Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive for seat height adjustment (3) against falling out.

Release screws (1).

Remove drive for seat height adjustment (3) with fixture for plug connection (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for seat height adjustment (3).

Installation:

Make sure drive shaft (1) is correctly seated.

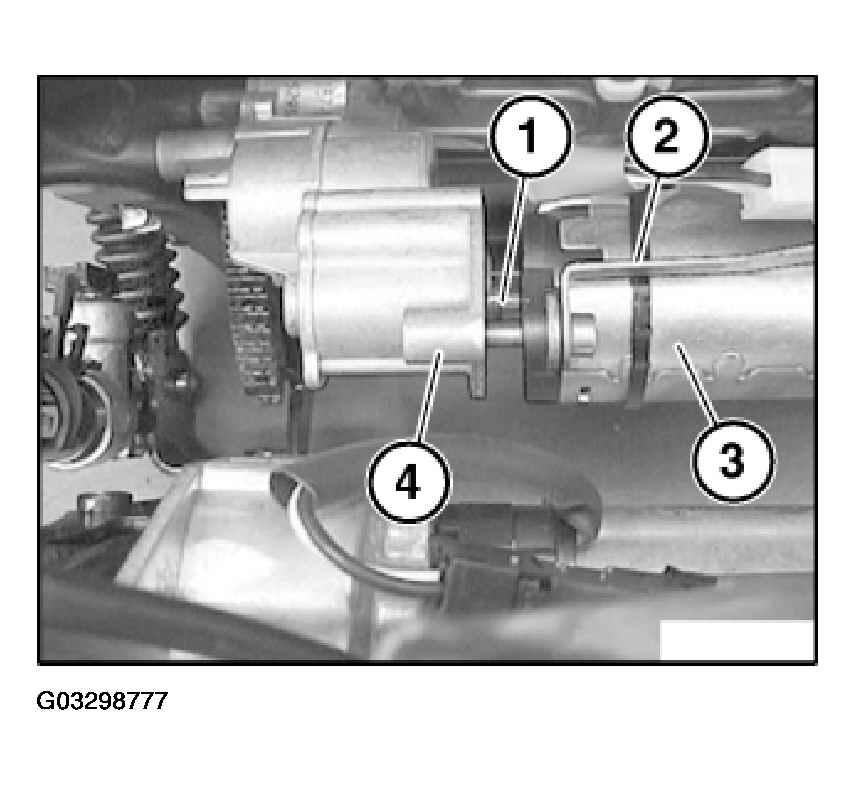

Fig 2: Installing Drive For Seat Height

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure fixture for plug connection (2) and drive for seat height adjustment (3) are correctly seated on flange (4).
