67 31 501 Removing and installing/replacing drive unit for longitudinal seat adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front seat is removed. Refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT .

Unlock plug housing (1) and unclip in direction of arrow.

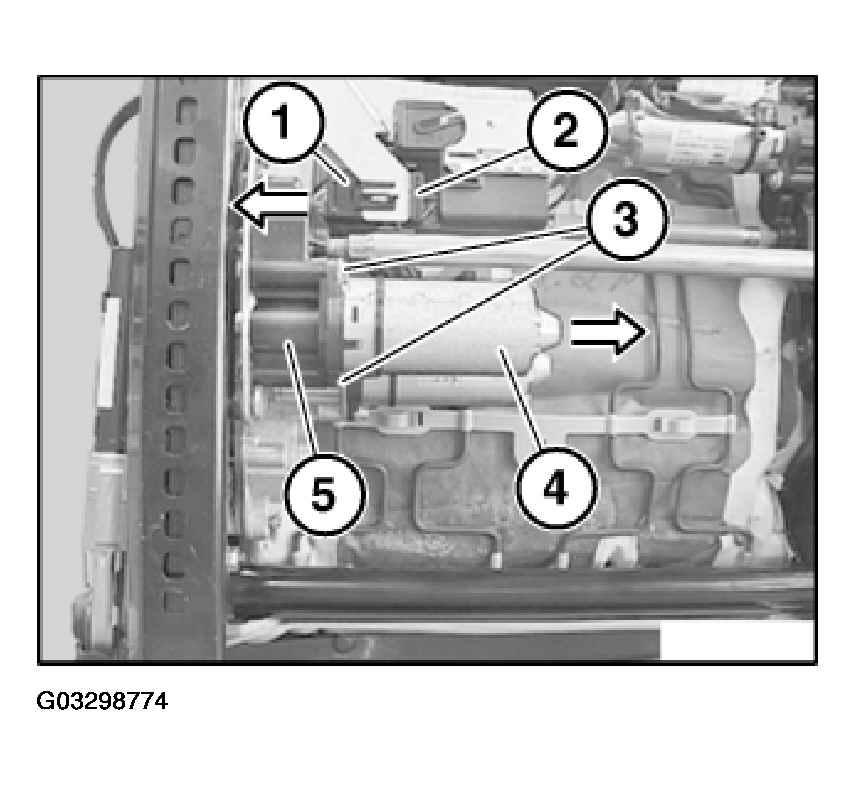

Fig 1: Removing Drive For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

NOTE: Secure drive for longitudinal seat adjustment (4) against falling out.

Release screws (3) and remove drive for longitudinal seat adjustment (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for longitudinal seat adjustment (4).

Installation:

Make sure drive shaft (1) is correctly seated.

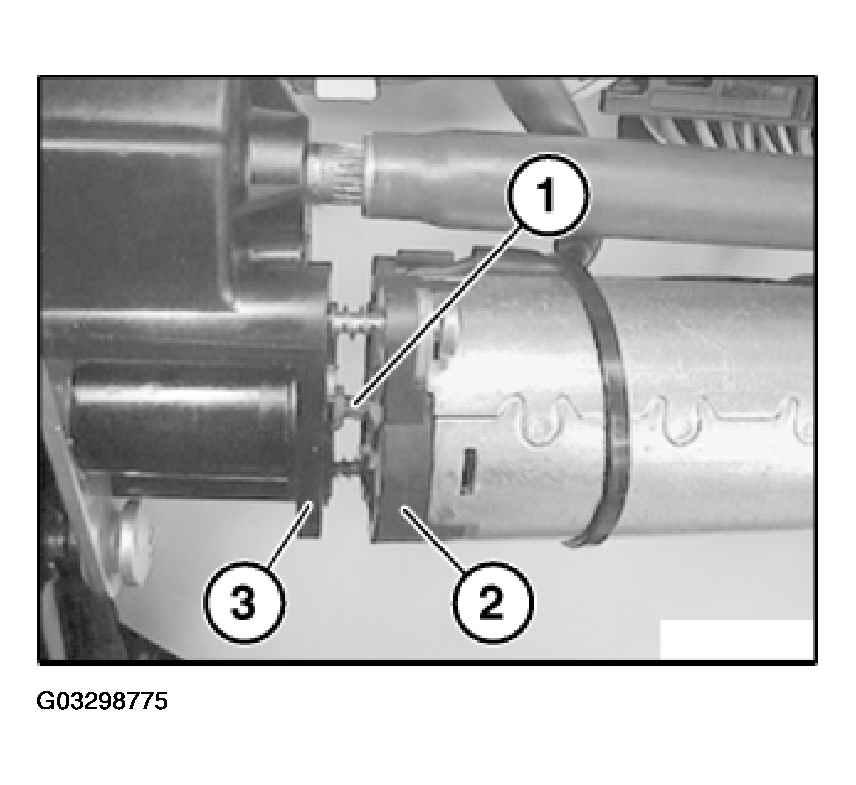

Fig 2: Identifying Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure drive for longitudinal seat adjustment (2) is correctly seated on flange (3).
