67 11 600 Removing and installing/replacing servodrive in storage box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lock on rear storage box. Refer to 51 16 248 REMOVING AND INSTALLING/REPLACING LOCK ON REAR STORAGE BOX .

Release screws (1).

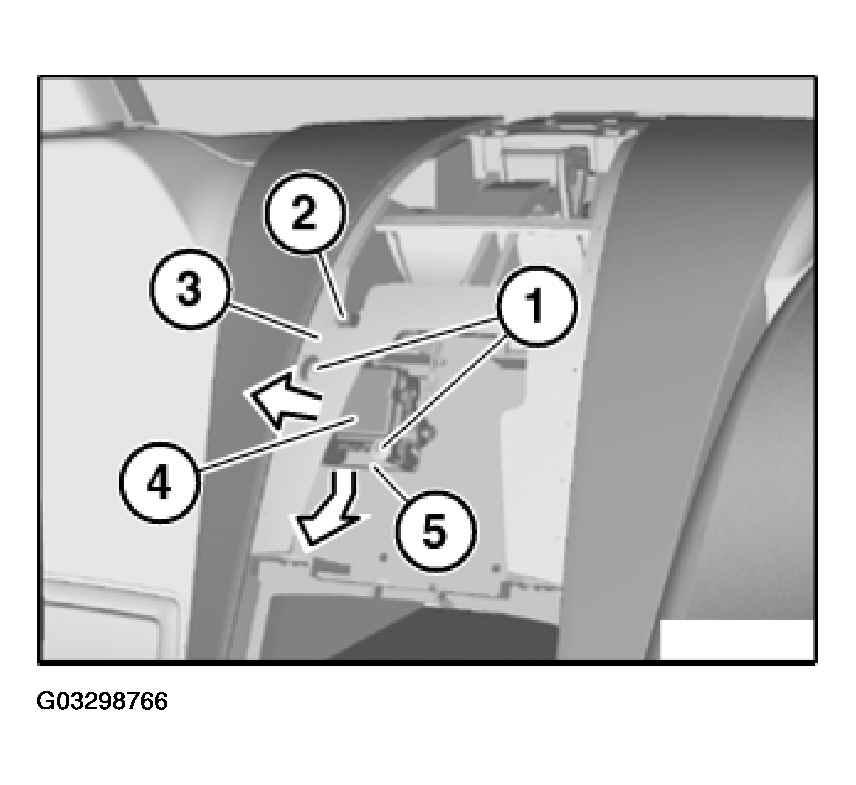

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

If necessary, raise storage box trim (3) slightly and feed servodrive (4) as illustrated out of recess in storage box (5).

Remove servodrive (4).
