65 13 080 Removing and installing/replacing speaker (mid-range speaker in rear door trim)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove upper section of side trim at rear. Refer to 51 43 010 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT UPPER SIDE TRIM SECTION .

Release screws (1).

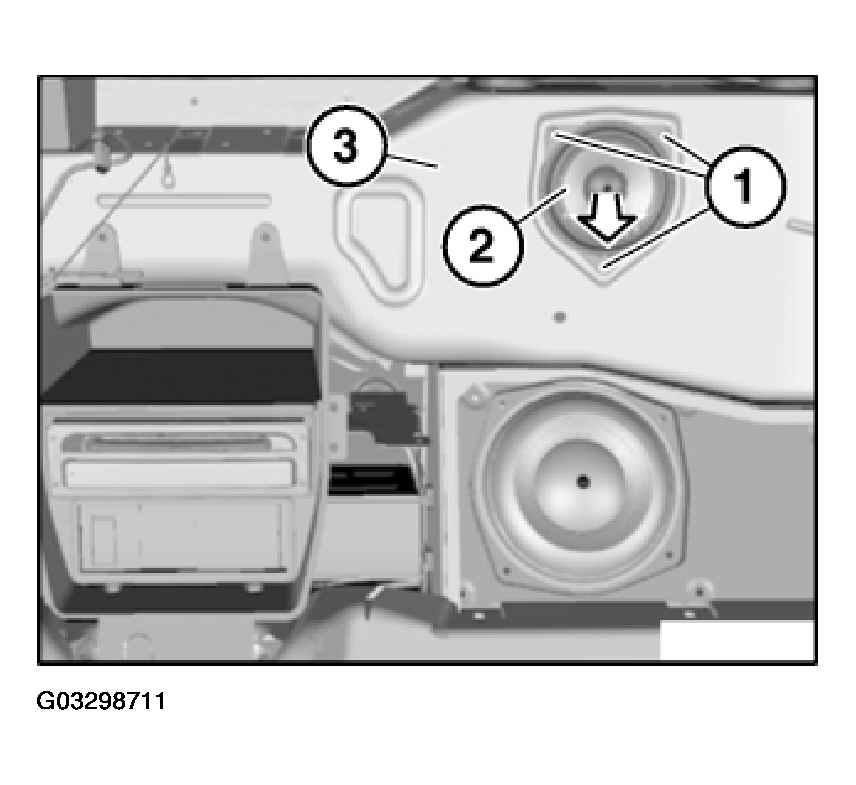

Fig 1: Removing Rear Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear speaker (2) in direction of arrow from mounting plate (3).

Unlock plug connection behind and disconnect.

Remove speaker (2).
