65 13 050 Removing and installing/replacing speaker (treble speaker in mirror triangle trim)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

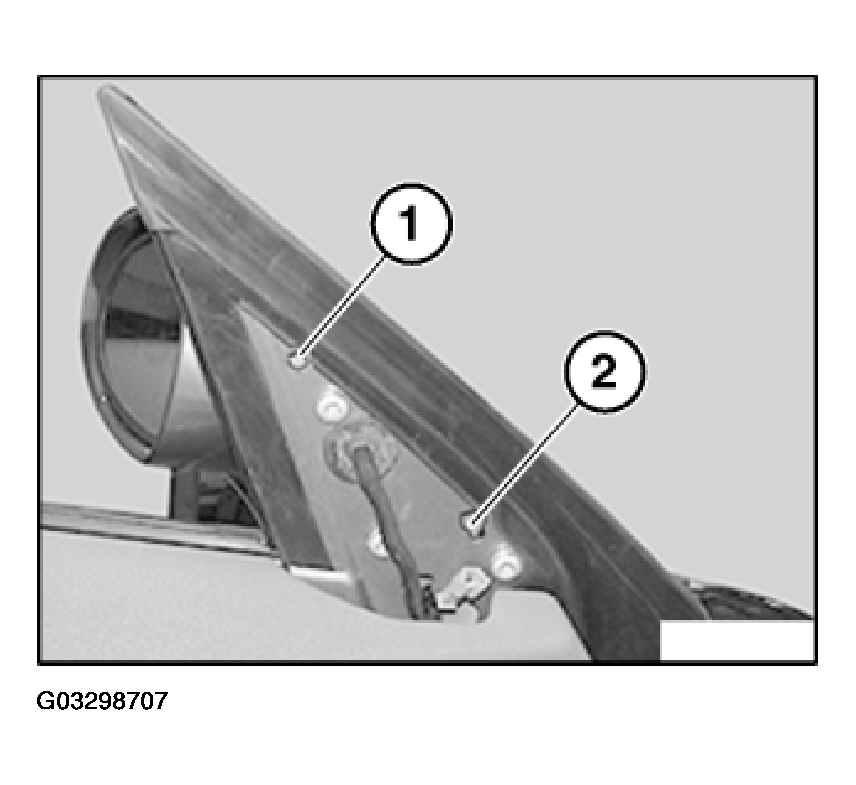

NOTE: Mirror triangle trim is clipped into place at top (1) and secured at bottom via a vertical guide (2).

Fig 1: View Of Mirror Triangle Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip mirror triangle trim (1) at top out of catch (2) and feed out at bottom in direction of arrow from mounting (3).

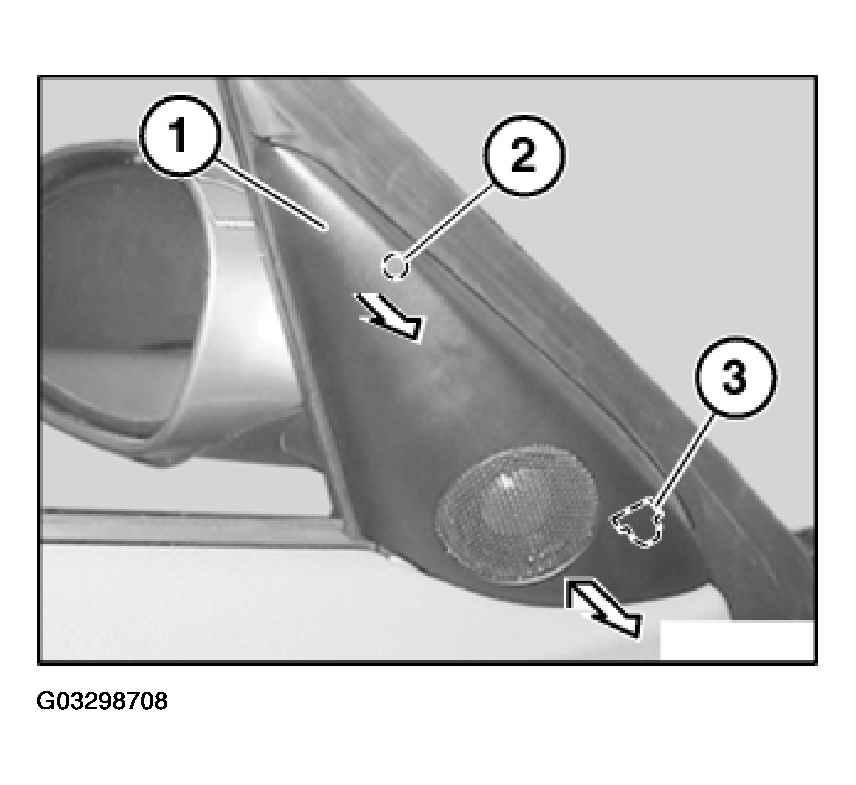

Fig 2: Removing Mirror Triangle Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection underneath and disconnect.

Remove mirror triangle trim (1).

Installation:

Guide (1) and clip (2) of mirror triangle trim (3) must not be damaged.

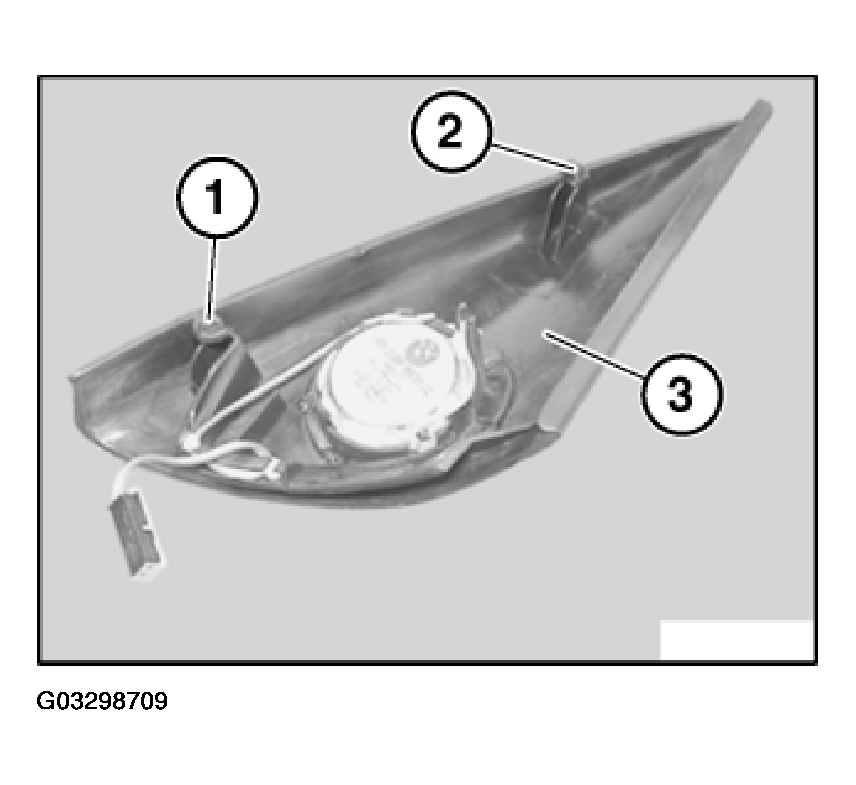

Fig 3: Locating Guide And Clip Of Mirror Triangle Trim

Courtesy of BMW OF NORTH AMERICA, INC.
