63 14 015 Removing and installing/replacing rear left or right side marker lamps

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Loosen screws (1).

Unlock retaining hook (2) and remove side marker lamp (3) towards rear.

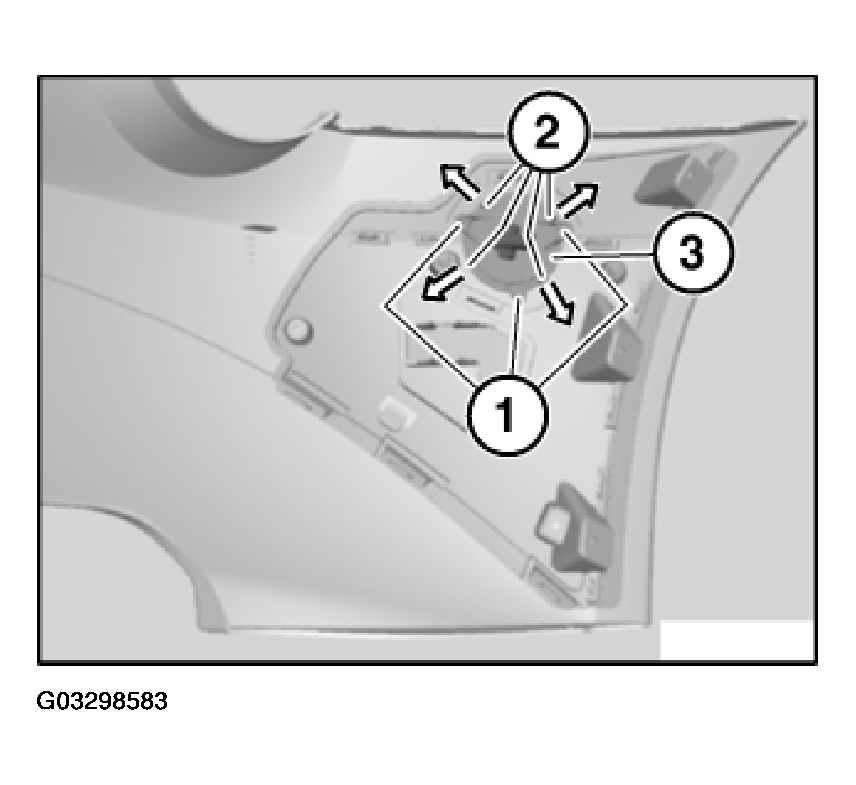

Fig 1: Unlocking Retaining Hook
G03298583Courtesy of BMW OF NORTH AMERICA, INC.
