54 34 160 Removing and installing/replacing right convertible top catch (automatic)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front convertible top fabric . See 54 34 120 Replacing Convertible Top Fabric .

Remove cover (2).

1 = Left cover

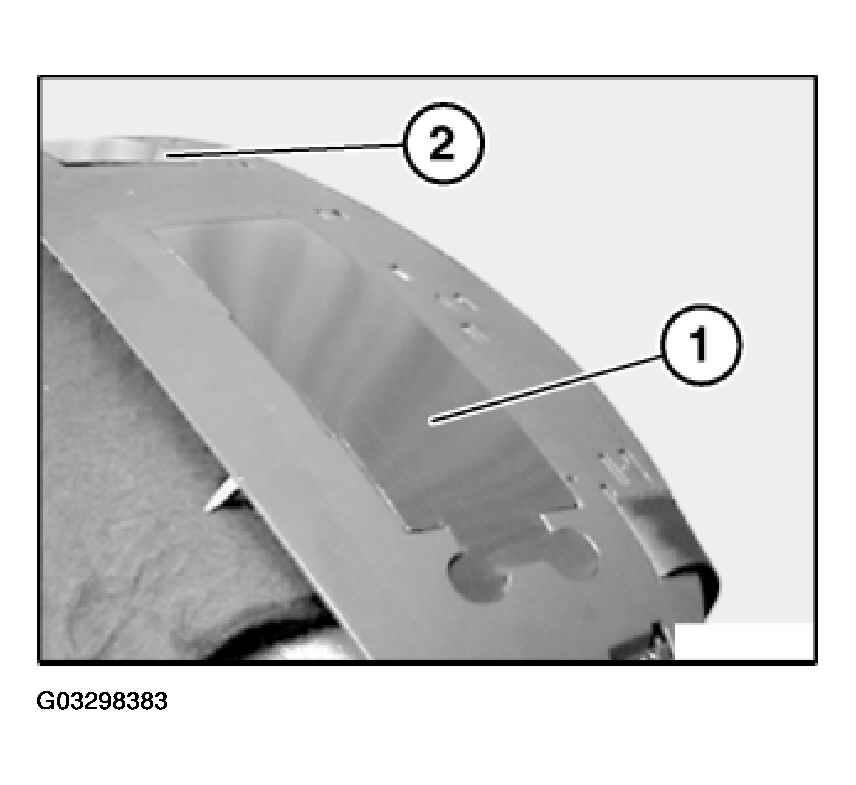

Fig 1: Removing Left Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1), turn reinforcement to one side.

Release screws (2), press engine frame downwards slightly.

Release screws (3), remove holder and lock.

Installation:

Replace screws (2).

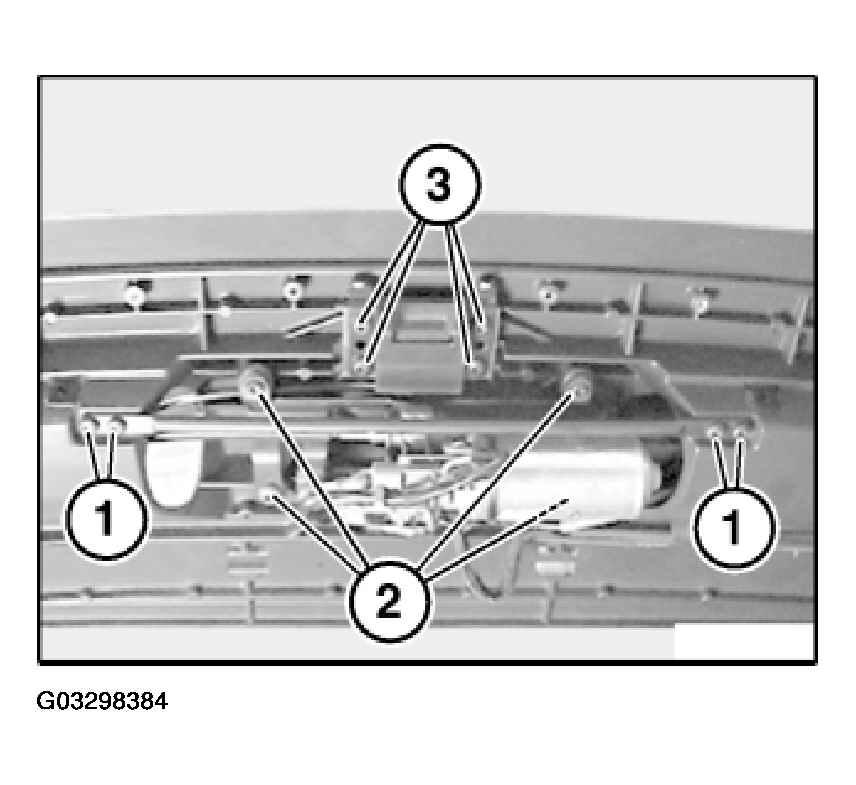

Fig 2: Releasing Screws Removing Holder And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Tightening torque, see 54 31 15AZ (replace screws) in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Feed out catch (2) with Bowden cable towards rear top, detaching drive shaft (3) from catch and feeding out Bowden cable (4) with sensor.

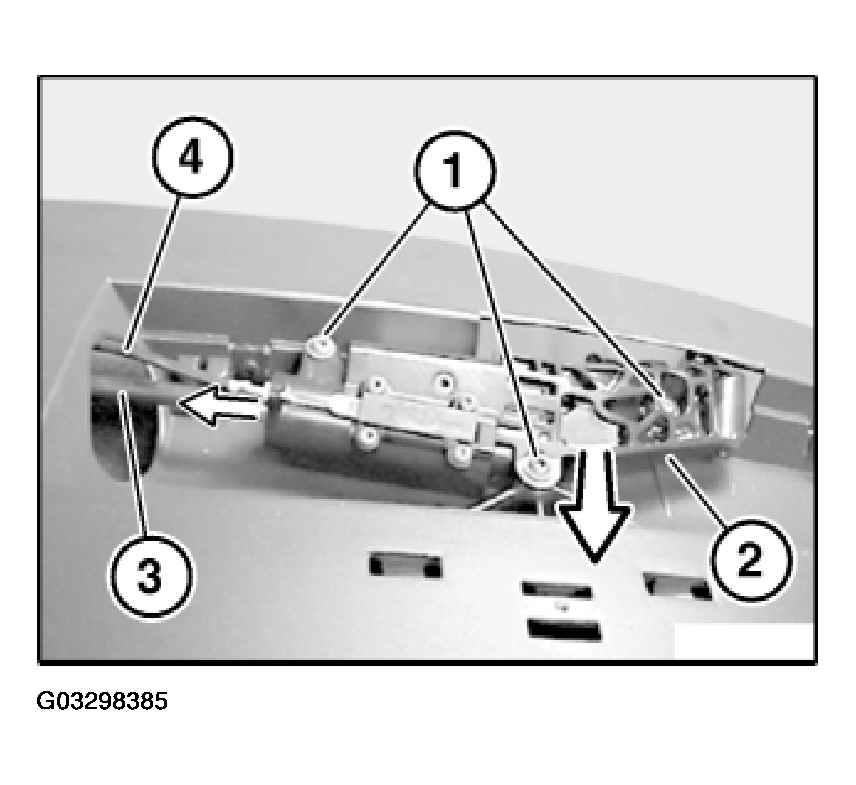

Fig 3: Detaching Drive Shaft From Catch And Feeding Out Bowden Cable With Sensor
