54 34 029 Replacing Bowden cable for EH convertible top emergency release mechanism

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .
Remove emergency release mechanism from hydraulic unit. See 54 34 005 Removing And Installing/Replacing Hydraulic Unit For Convertible Top Drive .

Release screws and/or drill out rivets.

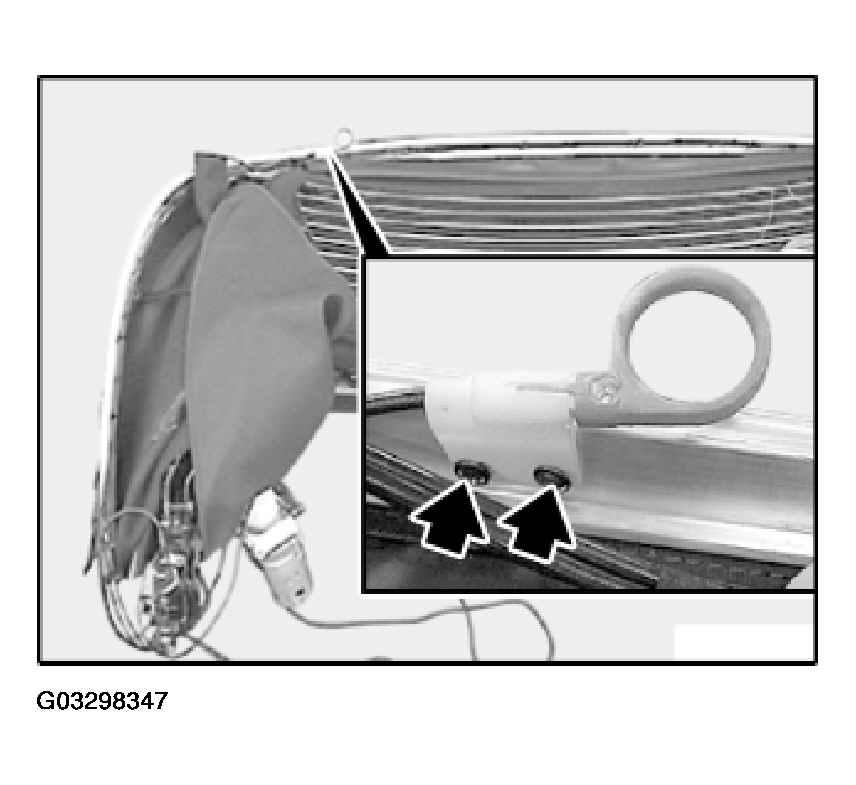

Fig 1: Releasing Screws And Drill Out Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable in area A from hydraulic lines (cable ties) and feed out of holder if necessary.

Installation:

Using scan tool, carry out function check .

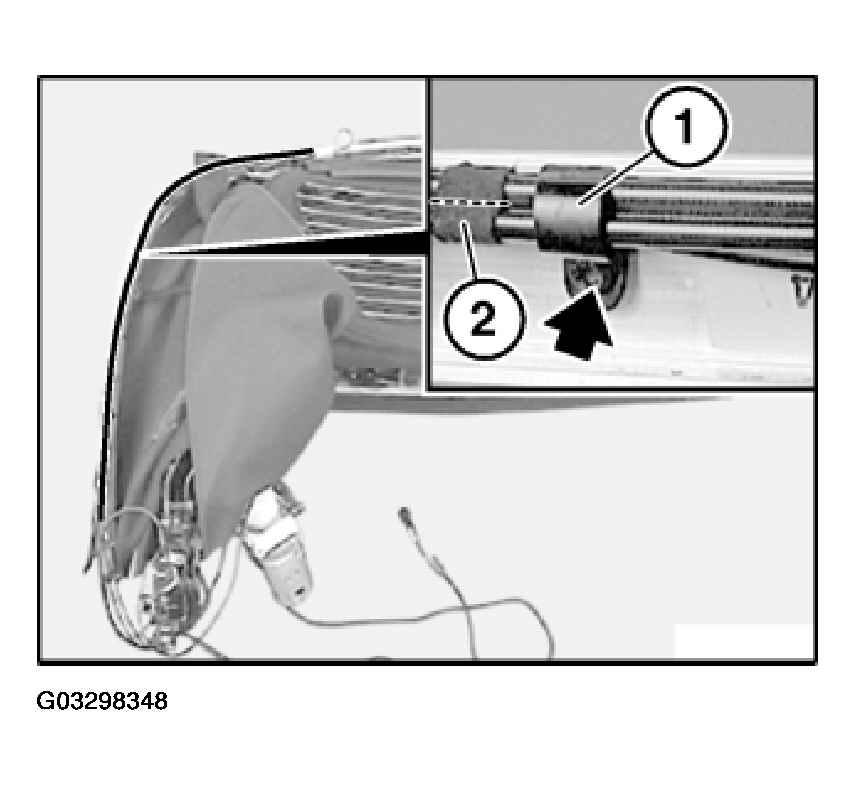

Fig 2: Disconnecting Bowden Cable In Area From Hydraulic Lines

Courtesy of BMW OF NORTH AMERICA, INC.
