54 31 160 Replacing convertible top strip

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .

Release screws (1) of front strap on convertible top strip.

Feed front strap (2) out of convertible top strip.

Replacement only:

Feed cover (3) out of convertible top strip.

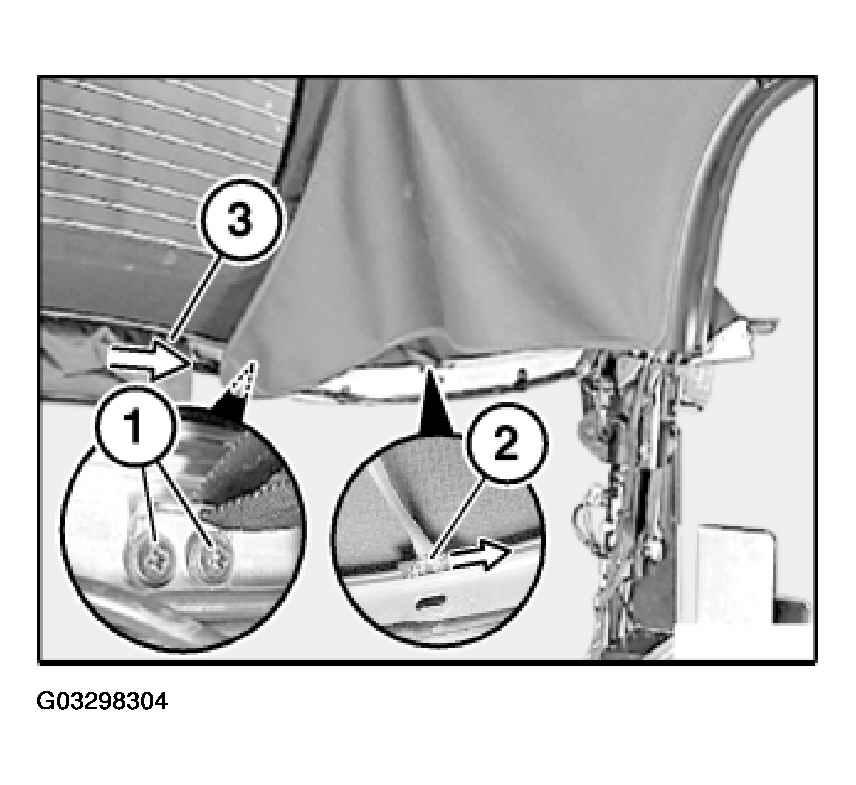

Fig 1: Feeding Front Strap Out Of Convertible Top Strip

G03298304

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

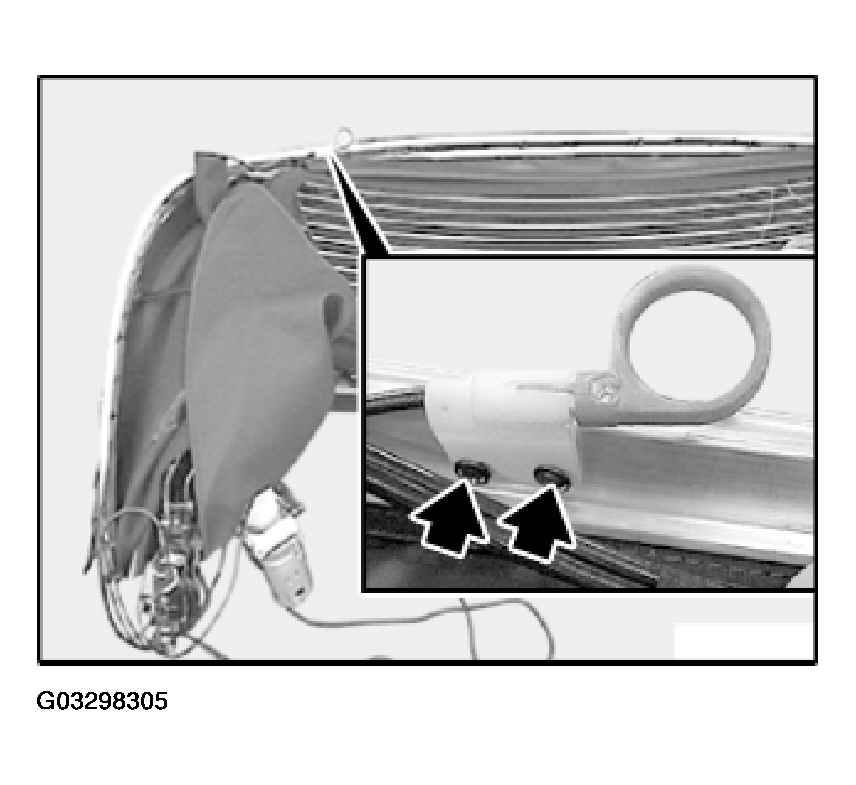

Fig 2: Unfastening Screws

G03298305

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release holder of hydraulic lines and emergency release Bowden cable.

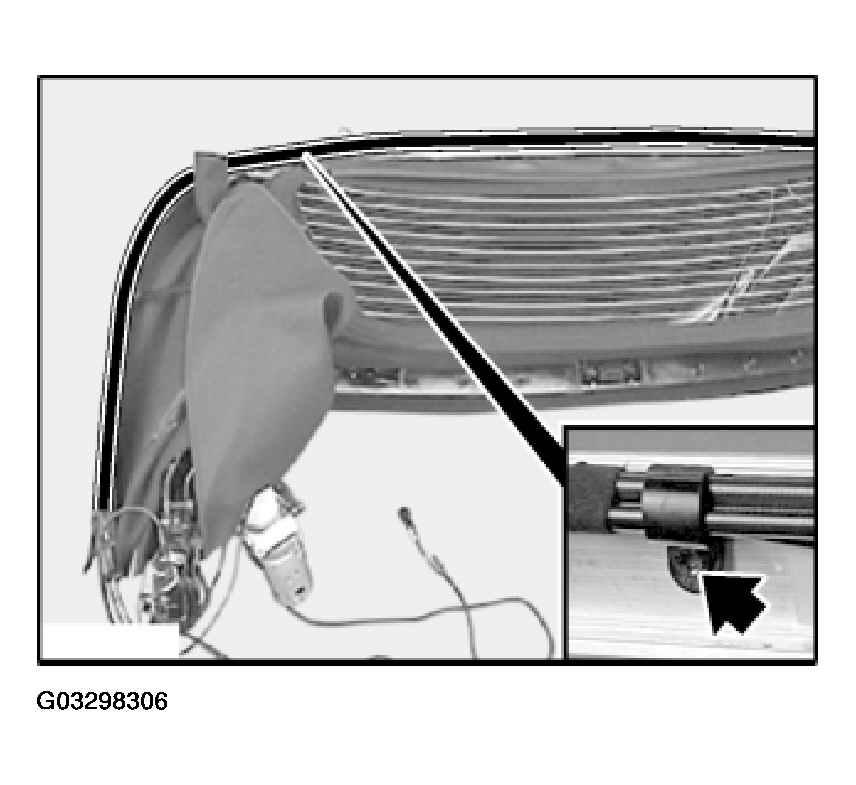

Fig 3: Releasing Holder Of Hydraulic Lines

G03298306

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws on left/right side.

Feed fabric welt out of clamp.

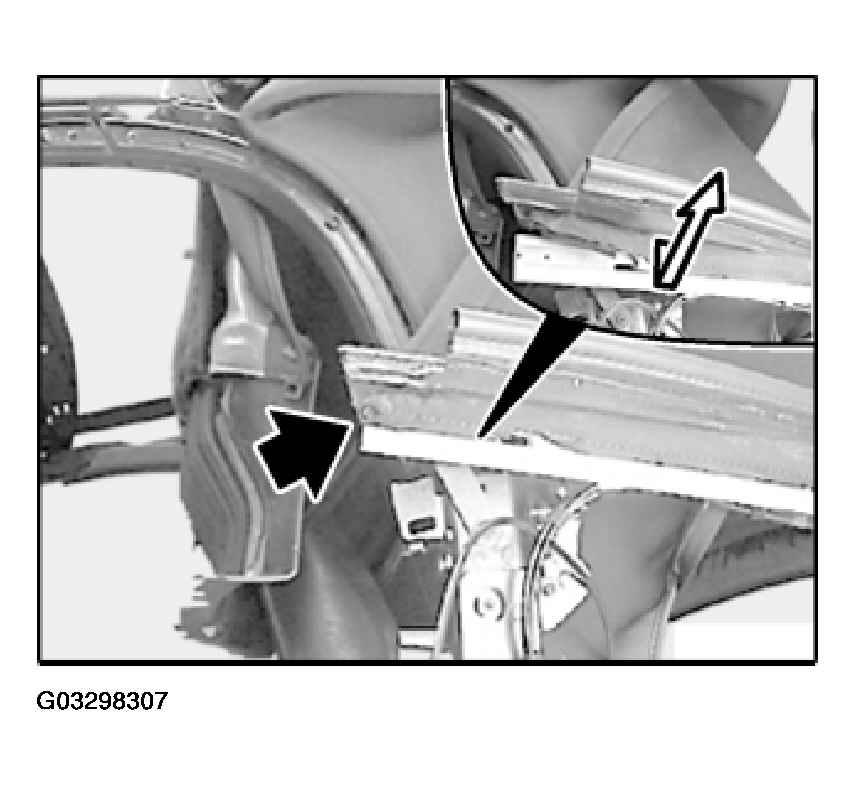

Fig 4: Feeding Fabric Welt Out Of Clamp

G03298307

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws on left/right side.

Feed out fabric welt further.

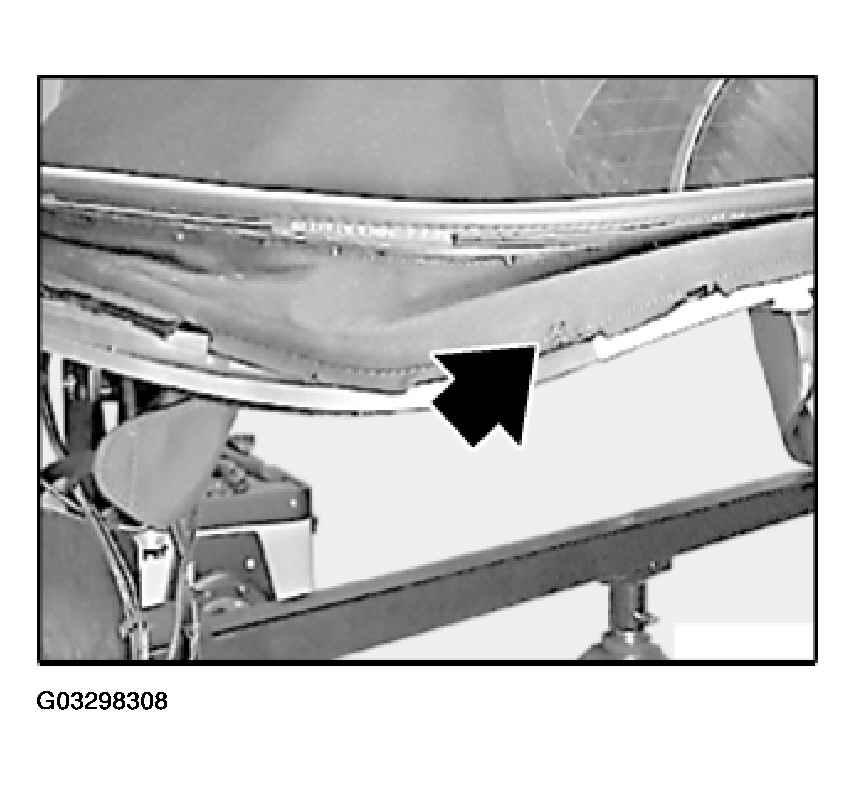

Fig 5: Feeding Out Fabric Welt Further

G03298308

Courtesy of BMW OF NORTH AMERICA, INC.

Feeding belt out of convertible top strip:

Raise welt
Remove welt towards rear bottom

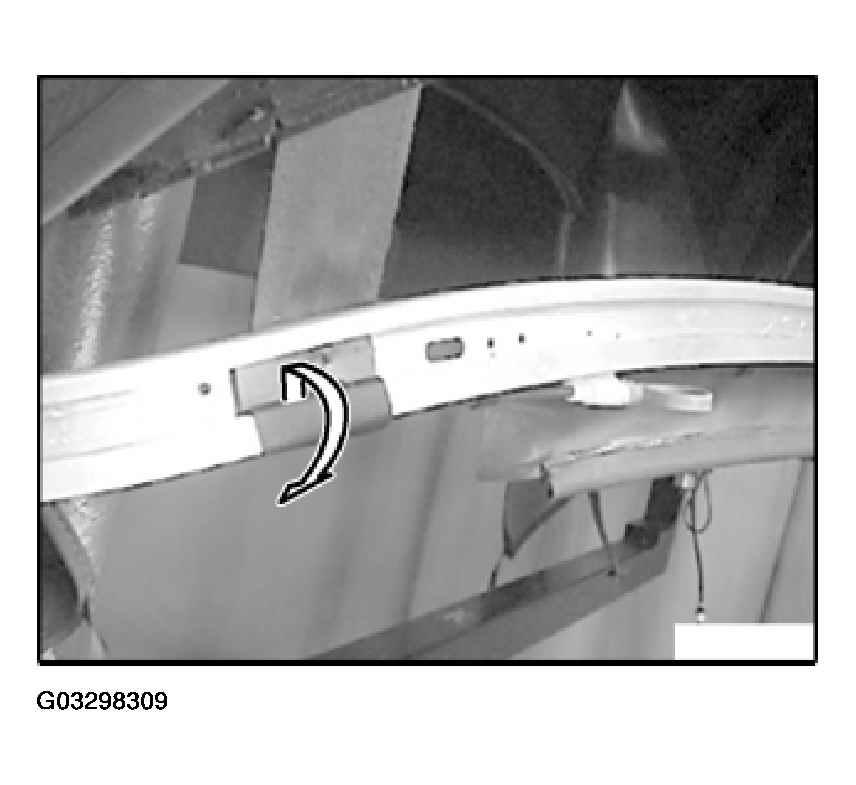

Fig 6: Removing Welt Towards Rear Bottom
Courtesy of BMW OF NORTH AMERICA, INC.
