54 31 000 Adjusting convertible top

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .

If the convertible top or the B-pillar is replaced, it may be necessary to adjust the convertible top width:

Measure internal distance between right and left B-pillars (convertible top fastening point).
Measure external distance between shims on main support from right to left.
In event of discrepancies of +/- 3 mm, release screws (1) and remove or install shims (2).
Shims are 1 mm thick.

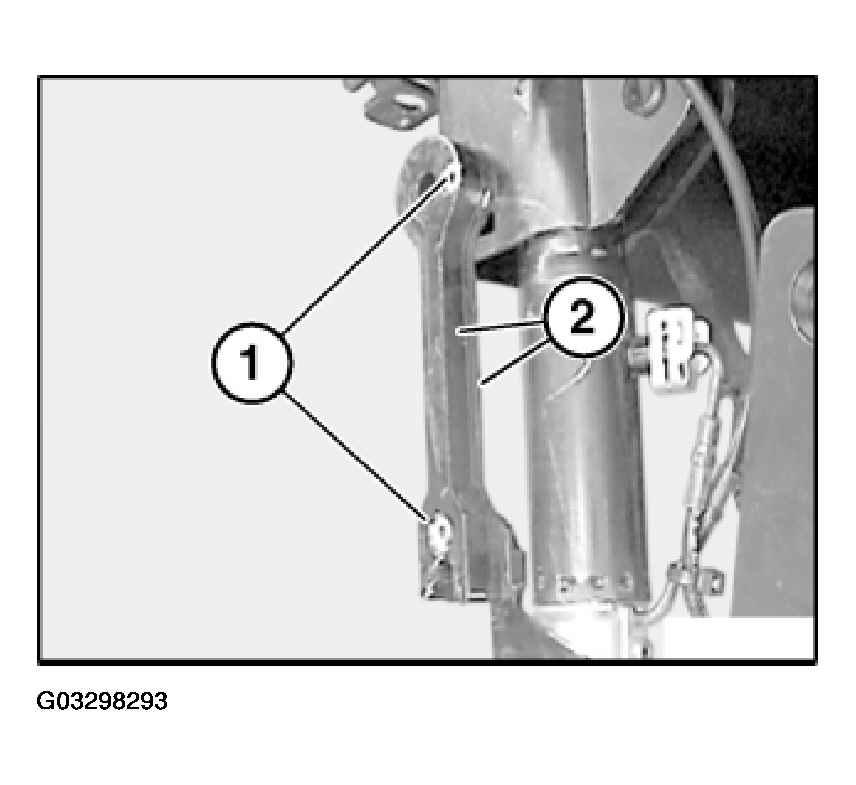

Fig 1: Removing And Installing Shims
Courtesy of BMW OF NORTH AMERICA, INC.

Further adjustments are not possible.
