54 31 200 Removing and installing/replacing hard top mounting

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release rear side trim panel upper section on B-pillar. See 51 16 235 REMOVING AND INSTALLING PANEL FOR REAR STORAGE BOX.

Release screw.

If necessary, press mounting downwards a little and remove towards front top from main support.

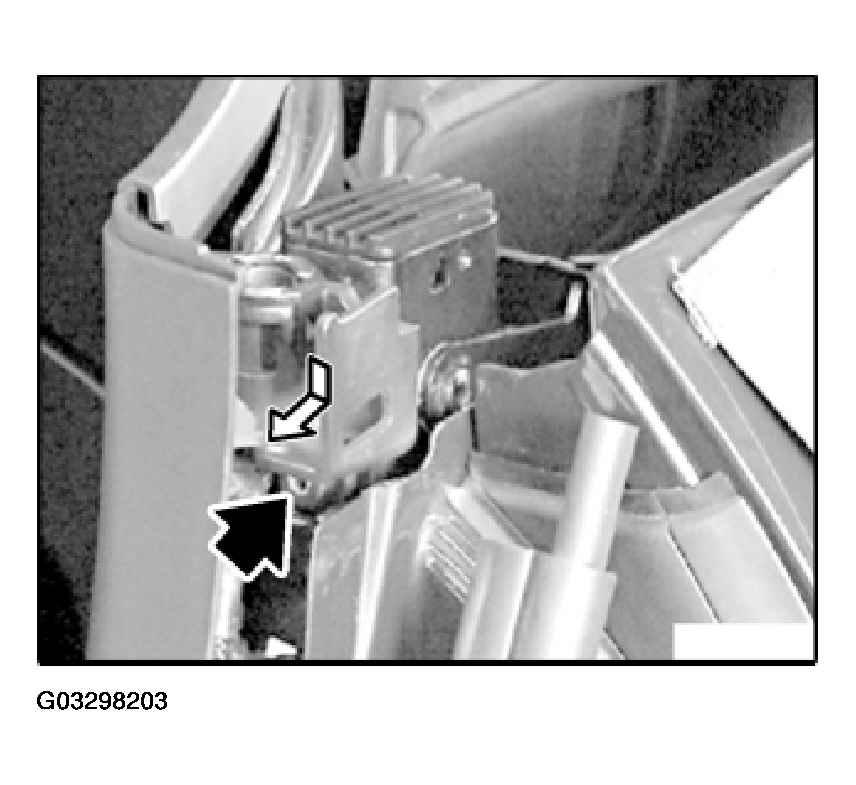

Fig 1: Removing Hardtop Mounting Toward Front Top From Main Support

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip contact tube and lay to one side.

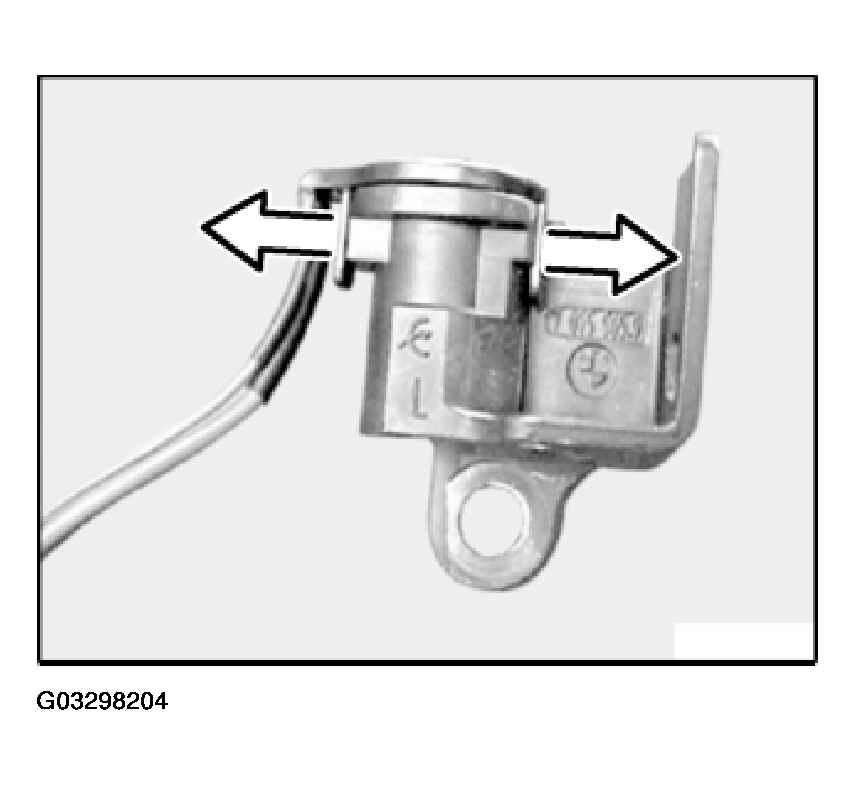

Fig 2: Unclipping Contact Tube And Laying Aside

Courtesy of BMW OF NORTH AMERICA, INC.

With contact tube replacement only:

Remove rear storage cover. See 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .
Disconnect plug connection.
Disconnect cable

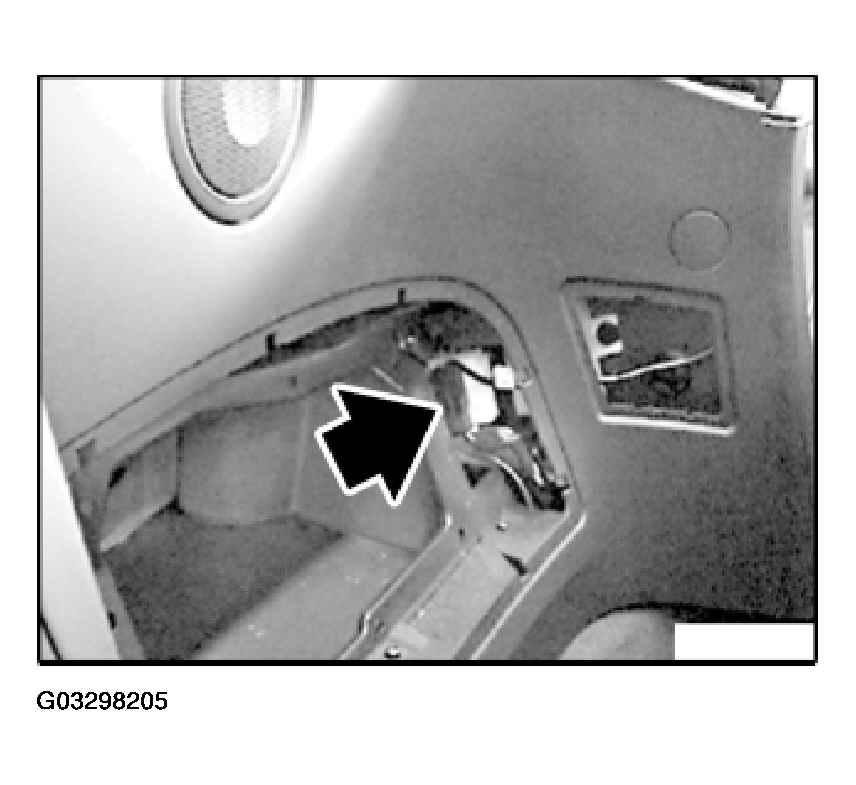

Fig 3: Removing Rear Storage Cover
Courtesy of BMW OF NORTH AMERICA, INC.
