54 31 150 Removing and installing/replacing tension belts

Necessary preliminary tasks:

• Remove convertible top  . See 54 34 101 Removing And Installing Complete Convertible Top .
• Partially remove convertible top fabric  (without main support and without last bow). See54 34 120 Replacing Convertible Top Fabric .

Feeding out belt at bow 1:

• Release screws (1) on left/right on inside
• Retract convertible top a little
• Pull belt slightly and retract fastening clip
• Feed out start of belt to center over opening (2) towards top

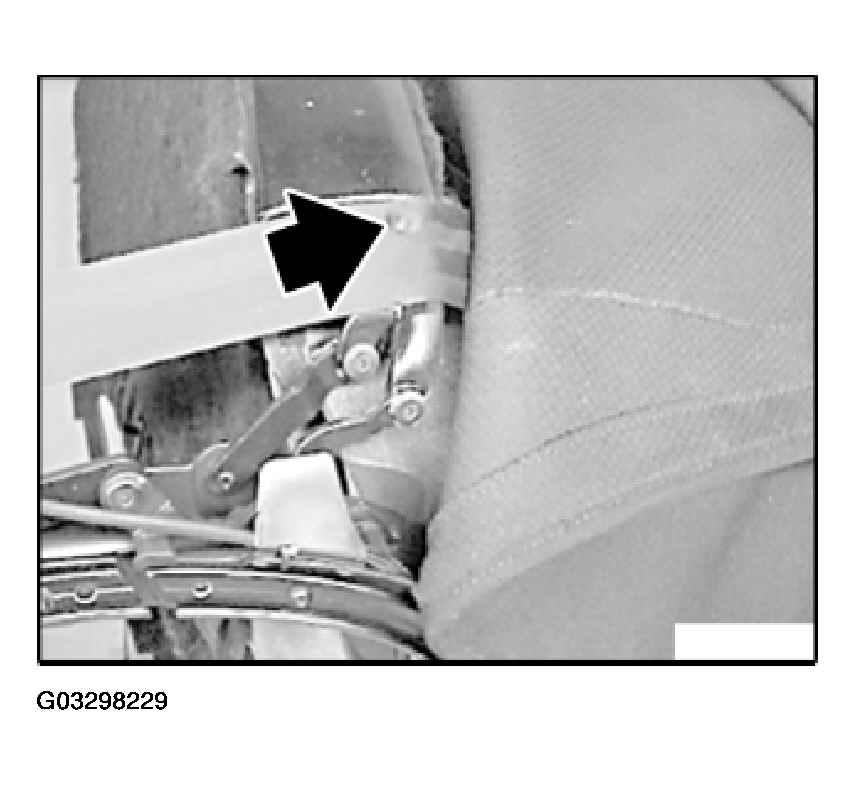

  Fig 1: Feeding Out Start Of Belt To Center Over Opening Towards Top

  Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws on left/right side.

Installation:

Fit belt first at bow 1 to obtain tension. Then insert screw here.

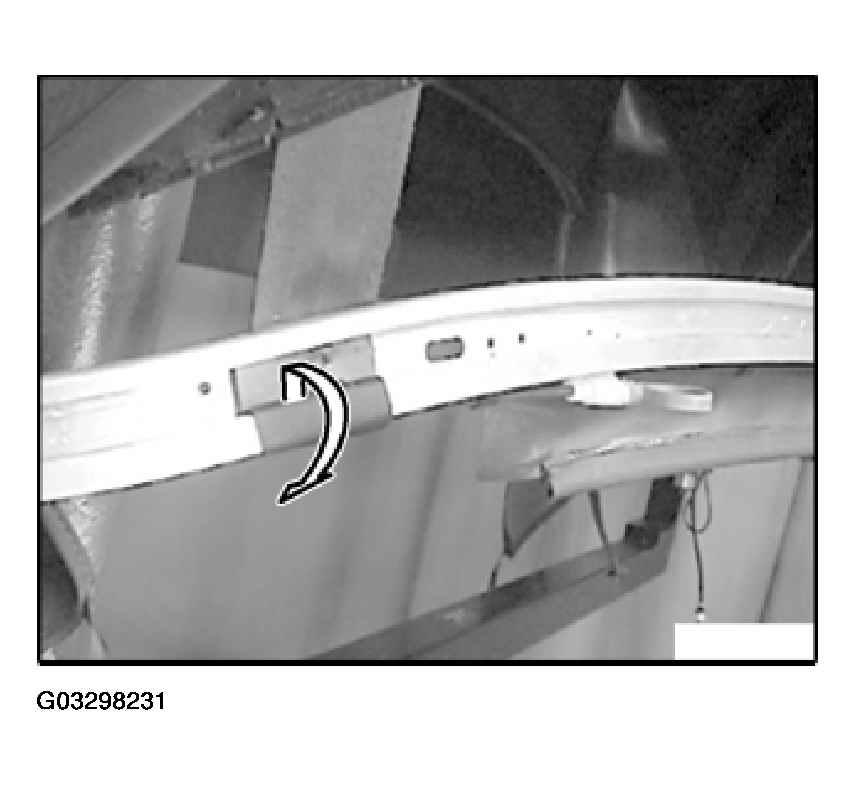

Fig 2: Installing Belt First At Bow To Obtain Tension

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws on left/right side.

Installation:

Guide belt clip from rear over last bow.

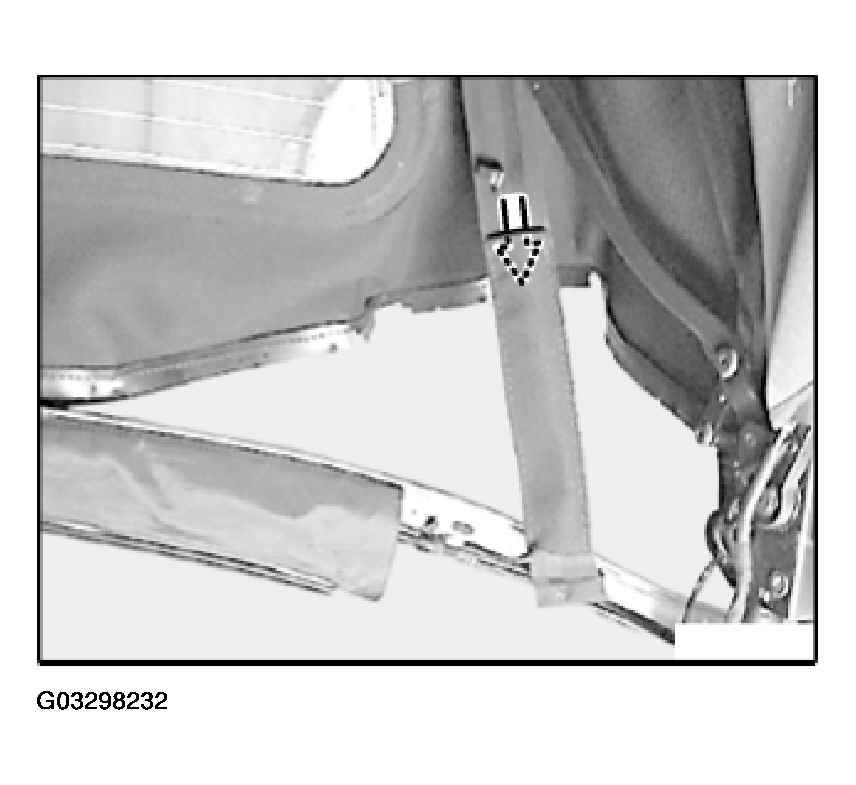

Fig 3: Installing Guide Belt Clip From Rear Over Last Bow

Courtesy of BMW OF NORTH AMERICA, INC.

Feeding belt out of convertible top strip:

• Raise welt
• Remove welt towards rear bottom

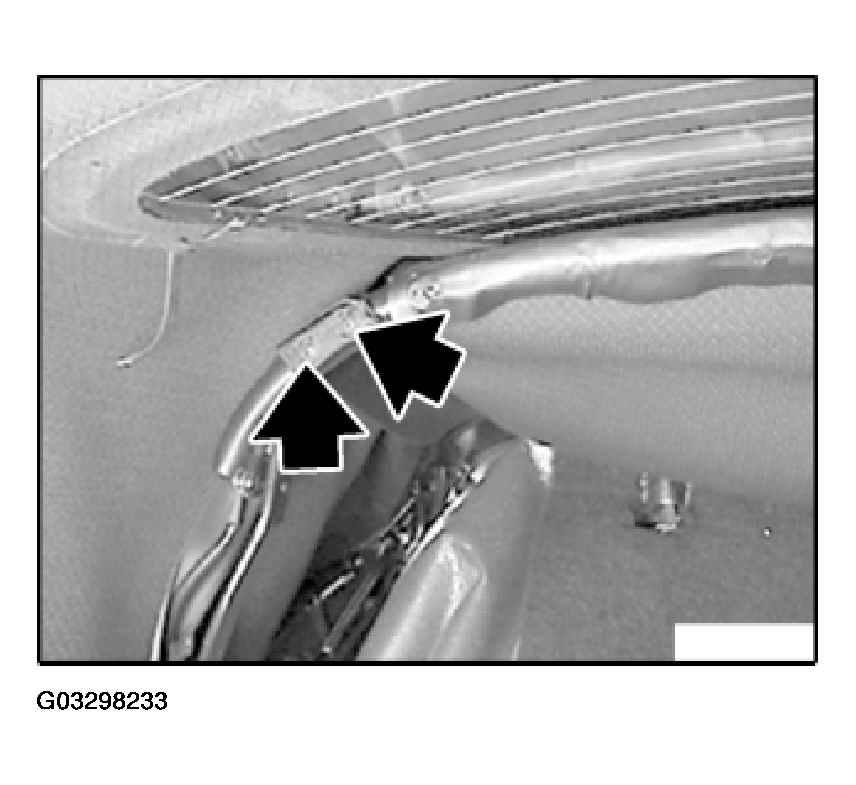

  Fig 4: Removing Welt Towards Rear Bottom

  Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cable towards bottom.

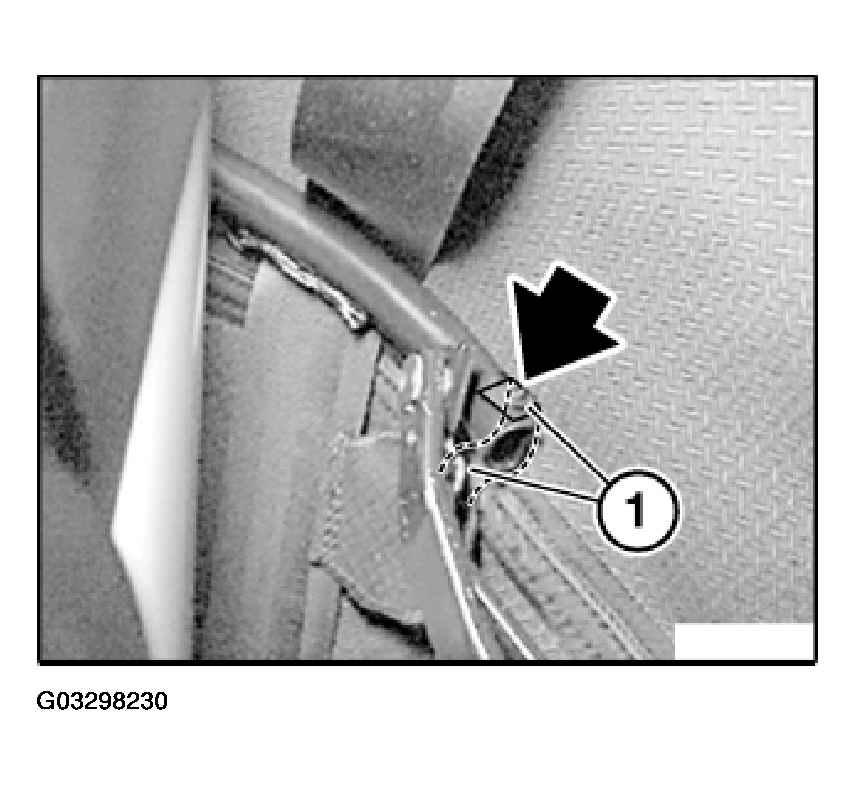

Fig 5: Feeding Out Cable Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Feed out belt.

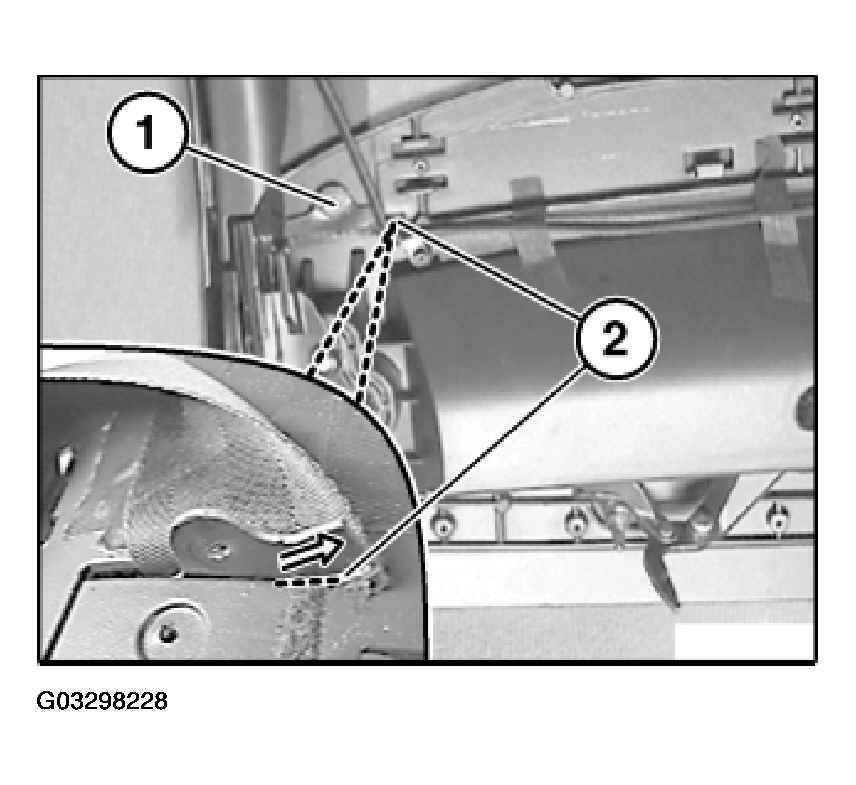

Fig 6: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to right (1) and left (2) version.

3 = Rear

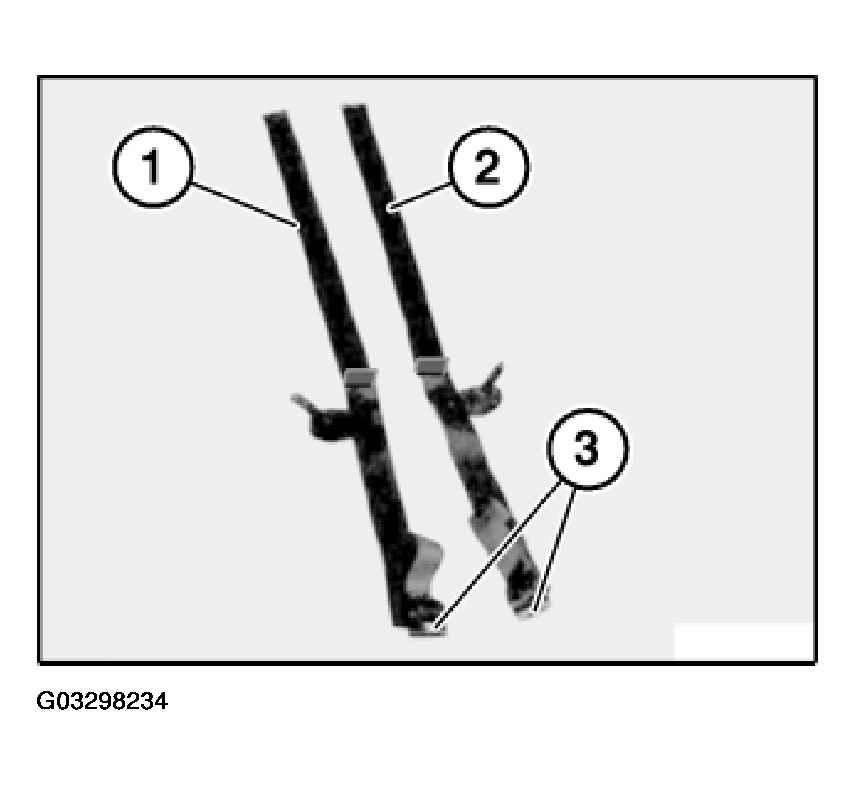

Fig 7: Paying Attention To Right And Left Version

Courtesy of BMW OF NORTH AMERICA, INC.
