54 31 055 Removing and installing/replacing gas spring strut on convertible top (mechanical)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .

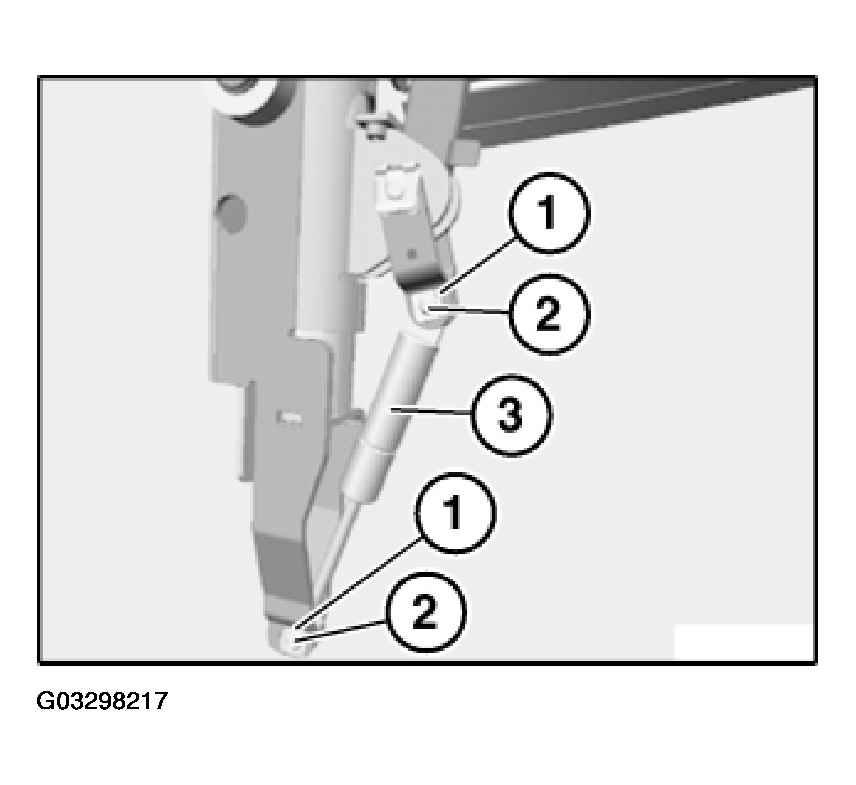

Detach retainers (1).
Press out pin (2).
Remove gas spring strut (3).
