54 31 017 Removing and installing/replacing main mount for convertible top

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .

Only on right side:

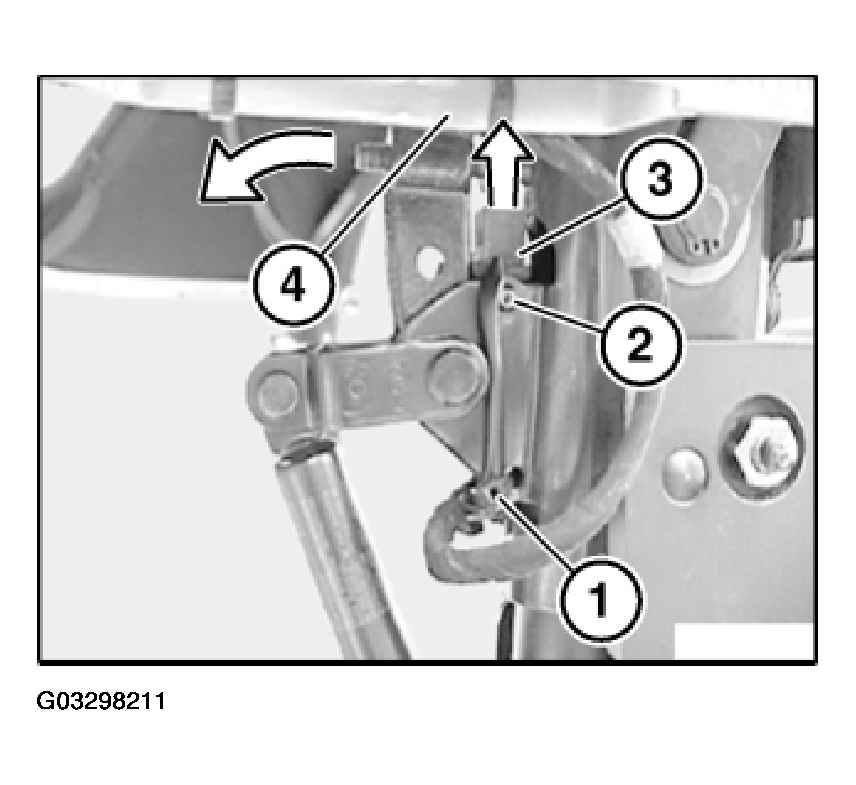

Disconnect cable tie (1), release screw (2), if necessary raise convertible top (4) slightly and remove micro-switch (3) towards top.

NOTE: Further information in MG 61

Fig 1: Removing Micro-Switch Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

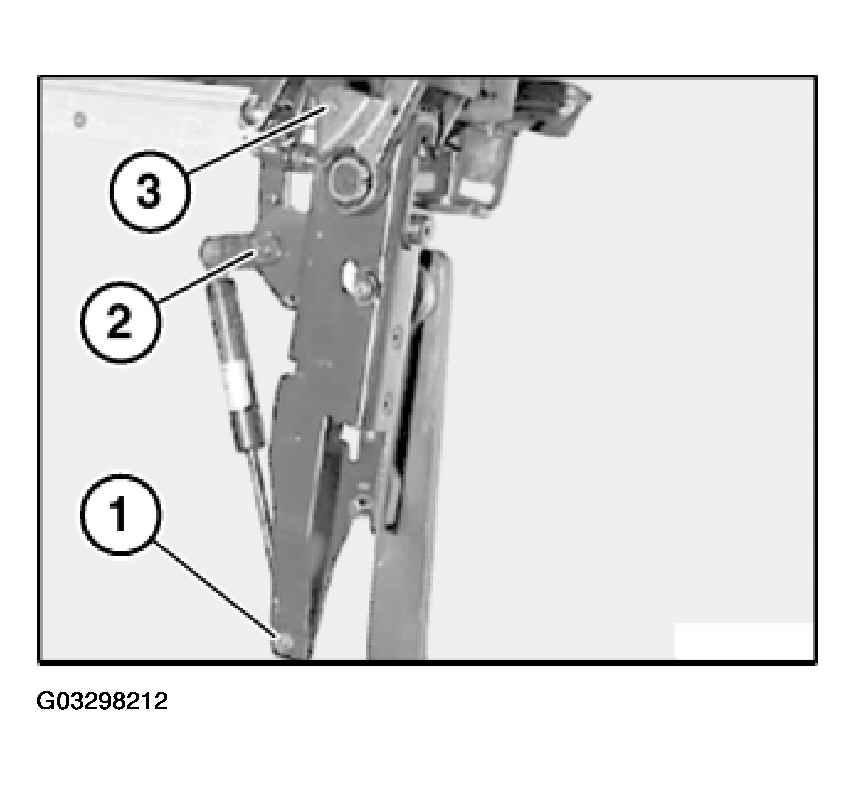

Release pins (1 and 2) and remove.

Release screw (3).

Tightening torque, see 54 31 14AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Fig 2: Releasing Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover.

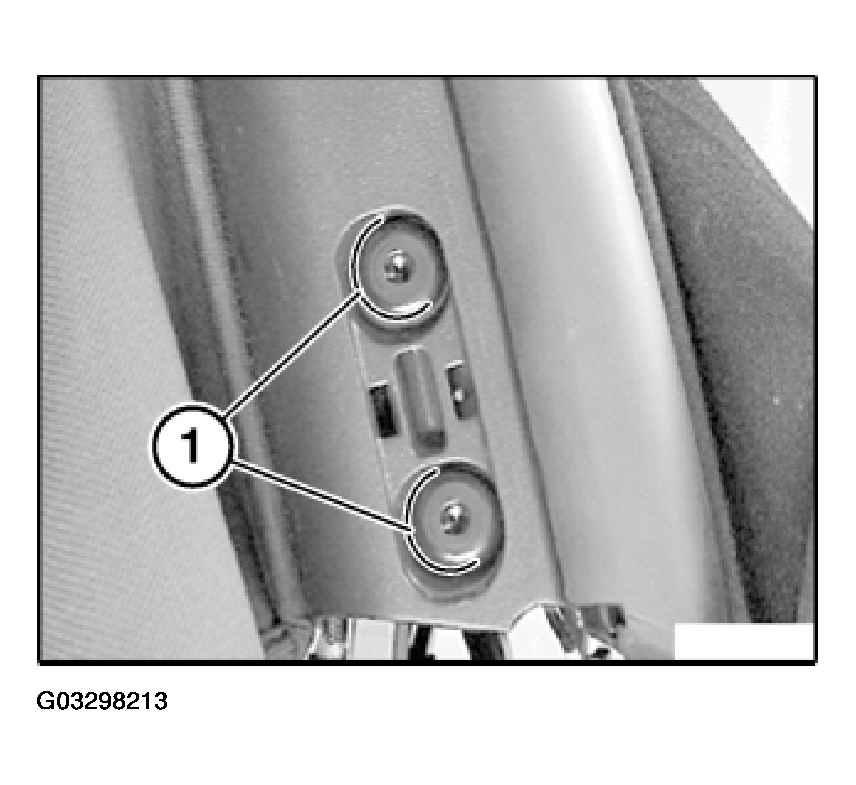

Mark position of screw heads (1).

Fig 3: Marking Position Of Screw Heads

Courtesy of BMW OF NORTH AMERICA, INC.

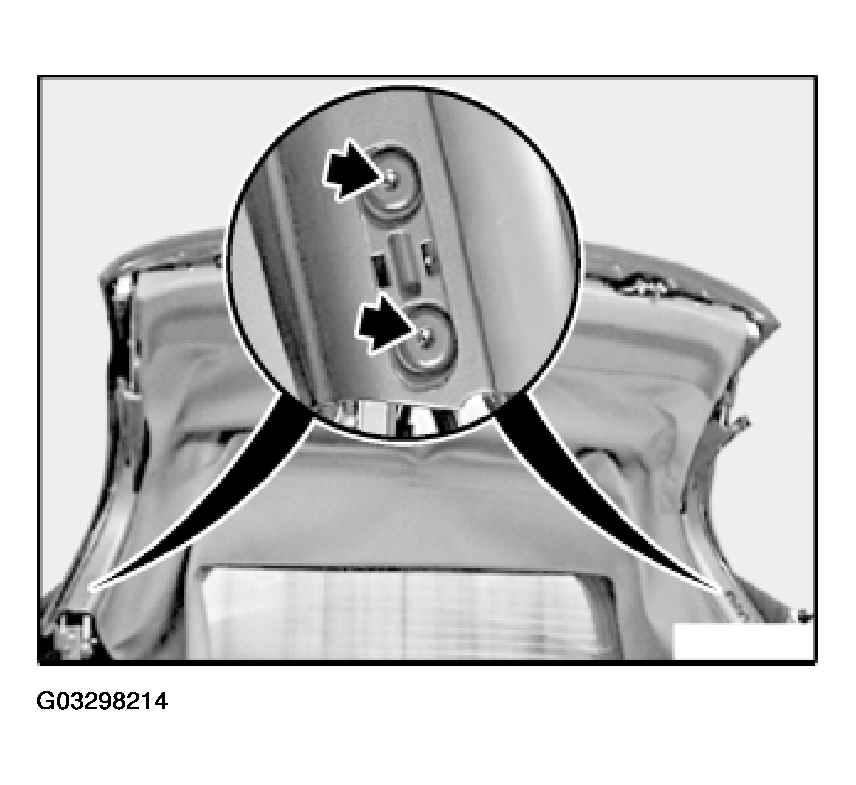

Release screws and remove main mount.

Installation:

Fit thin spacer between bracket and frame.

Return screws to their original location, then tighten down screws.

Tightening torque, see 54 31 12AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Fig 4: Releasing Screws And Removing Main Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

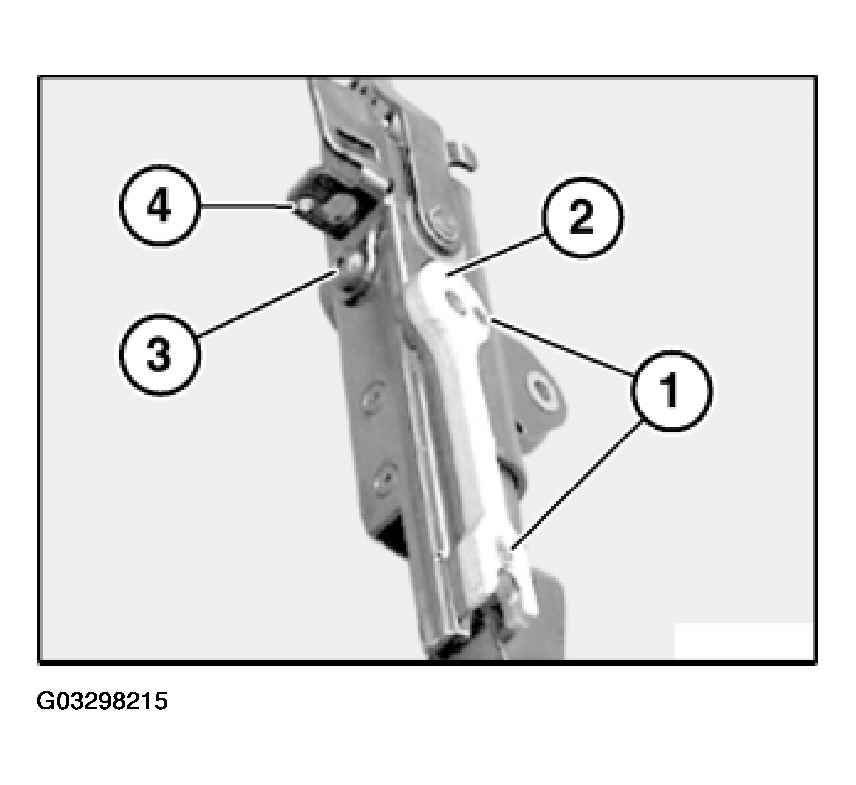

Release screws (1) and remove spacers (2).
If necessary, release screw (3) and remove hardtop mounting (4).

Fig 5: Releasing Screws, Spacers, Screw & Hardtop Mounting
Courtesy of BMW OF NORTH AMERICA, INC.
