54 31 000 Adjusting convertible top

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove main bearing cover trim. Measure gap between inside edge of side panel and main bearing. Ideal dimension is 51-53 mm.

For adjustment work only: remove convertible top. See 54 34 101 Removing And Installing Complete Convertible Top . Release screws (1) and remove shim (2) or place underneath. Shims are one mm thick.

Check ideal adjustment of door window glass after completing adjustment work on convertible top. Initialize power windows.

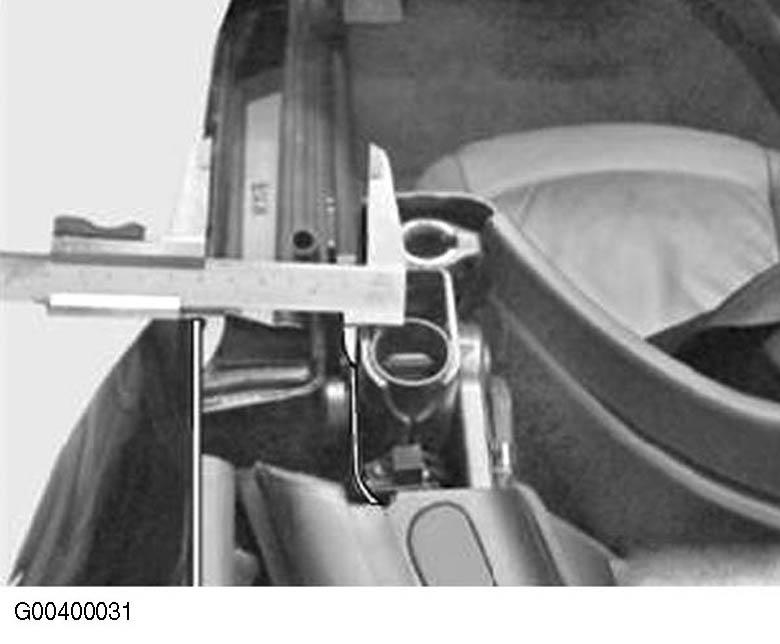

Fig 1: Measuring Gap Between Inside Edge Of Side Panel & Main Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

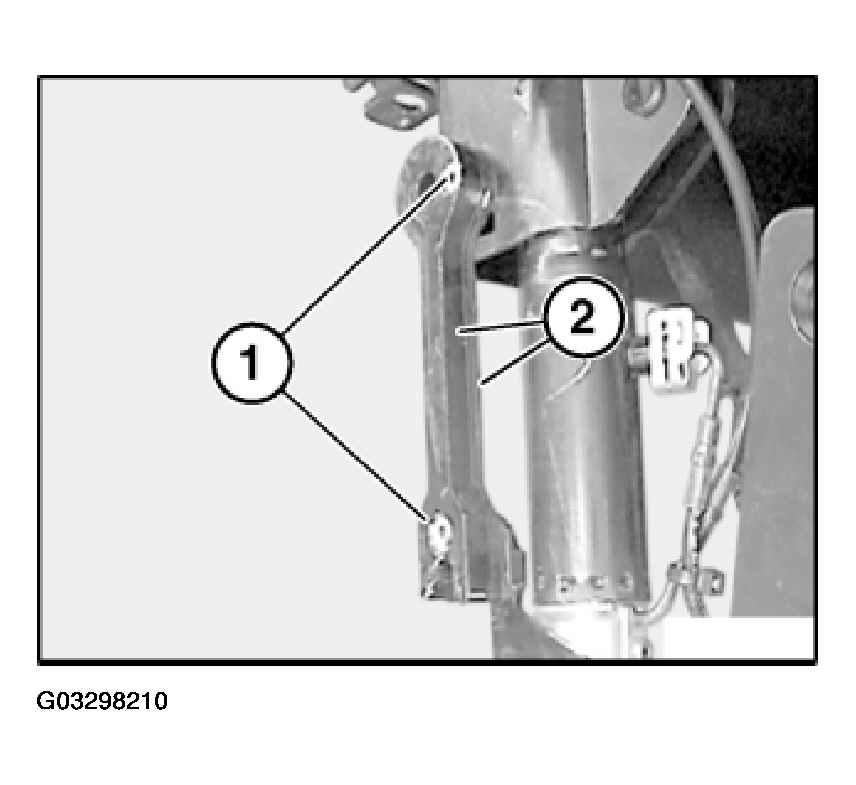

Fig 2: Releasing Screws And Removing Shims

Courtesy of BMW OF NORTH AMERICA, INC.
