51 24 050 Removing and installing/replacing lock (lock cylinder) for rear lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lock cylinder trim (rear lid trim).

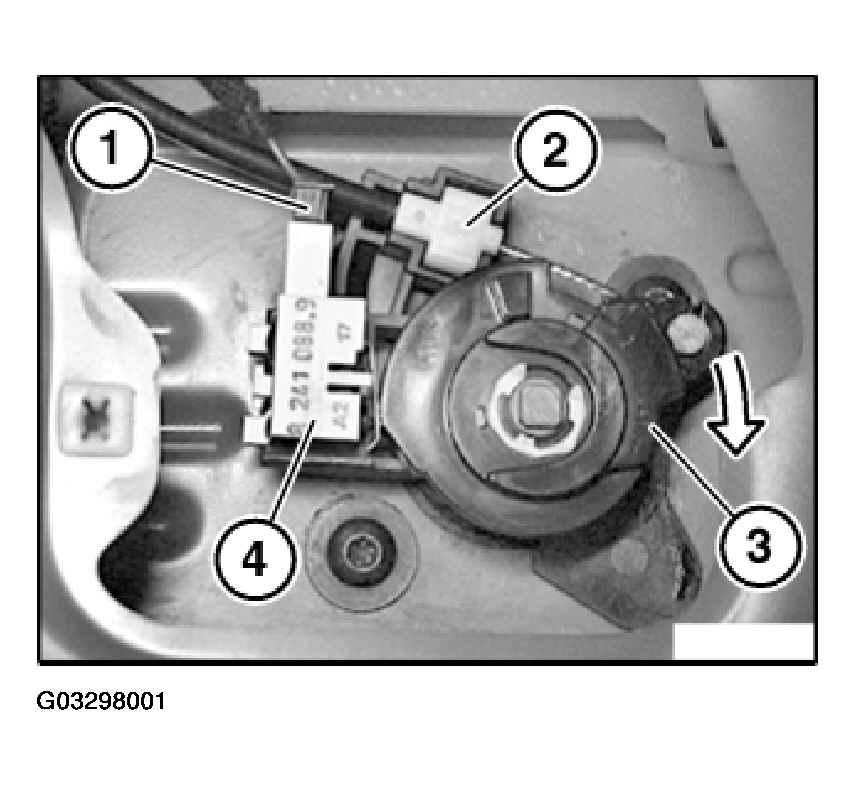

Disconnect plug connection (1) on microswitch.

Detach Bowden cable (2) from holders.

Move lock actuator (3) in direction of arrow up to end stop.

Fig 1: Moving Lock Actuator In Direction Of Arrow Up To End Stop

G03298001

Courtesy of BMW OF NORTH AMERICA, INC.

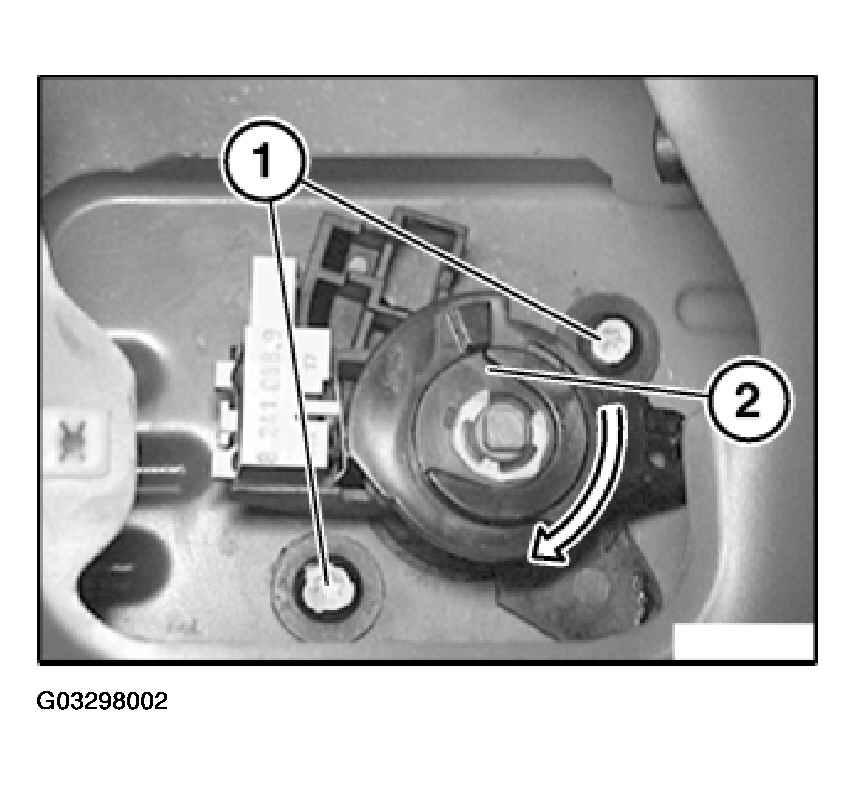

Release screws (1) and turn complete lock (2) in direction of arrow.

Fig 2: Releasing Screws And Turning Complete Lock In Direction Of Arrow

G03298002

Courtesy of BMW OF NORTH AMERICA, INC.

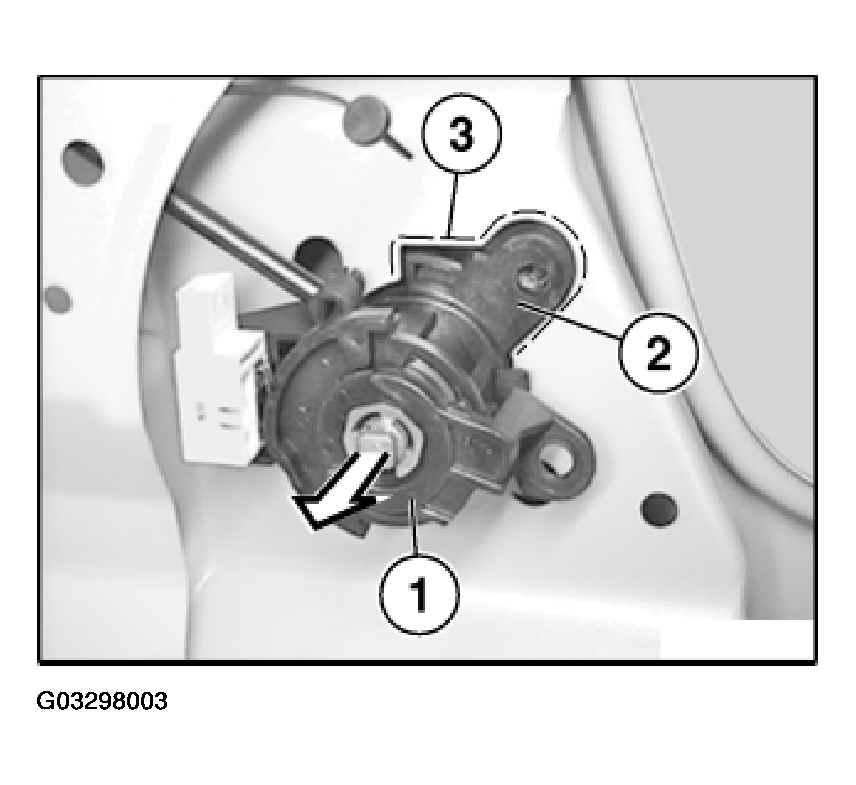

Turn lock (1) to right until guide (2) is located in metal cutout (3).

Remove lock in direction of arrow.

Fig 3: Removing Lock In Direction Of Arrow

G03298003

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.

Replacement only:

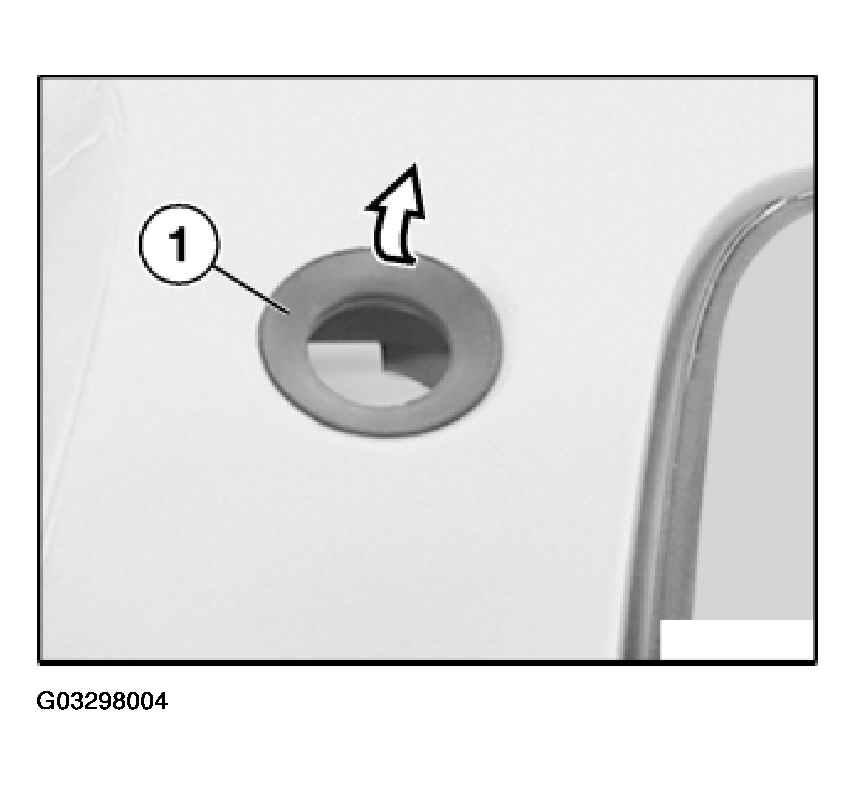

Pull off rubber grommet (1).

Fig 4: Pulling Off Rubber Grommet

G03298004

Courtesy of BMW OF NORTH AMERICA, INC.
