51 43 201 Removing and installing or replacing trim for front left or right roof pillar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove 51 44 150 Trim For Front Roofliner .
NOTE:
The illustrations show the removal of the panel for the left roof pillar.
The panel for the right roof pillar is removed in the same way.

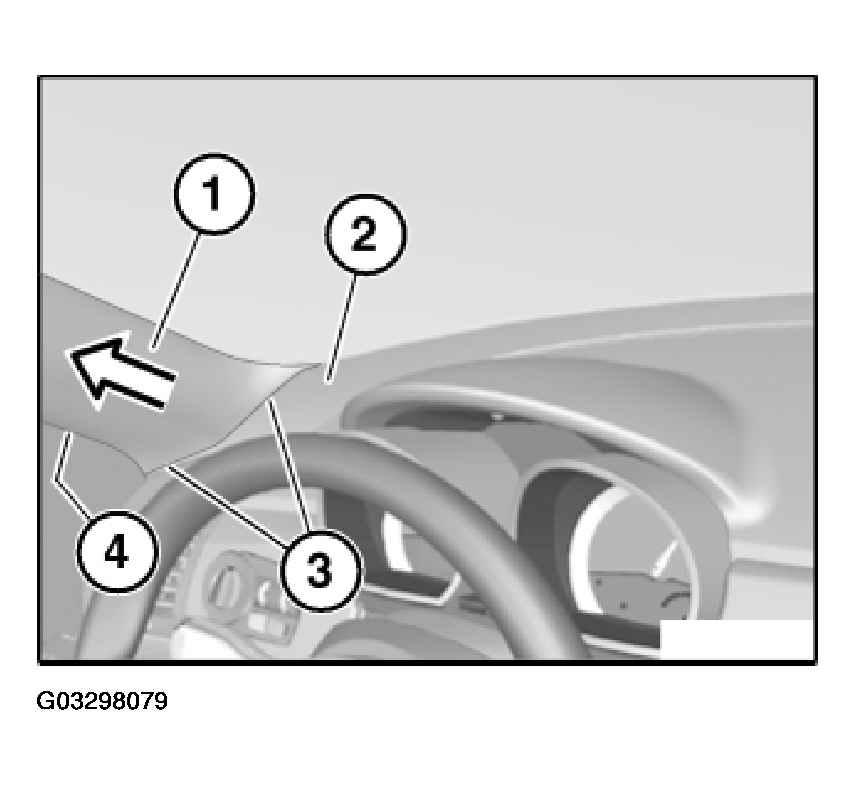

Feed panel for roof pillar (1) in direction of arrow out of instrument panel trim (2) and remove.
Installation:
Make sure guides (3) of roof pillar panel (1) are correctly seated in associated openings of instrument panel trim (2).
Feed in roof pillar panel (1) under seal (4).
