51 43 031 Removing and installing/replacing cover on rear left or right rollover protection bar

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required: 00 9 317.

IMPORTANT: Risk of damage! If necessary, tape off covers (1 and 2).

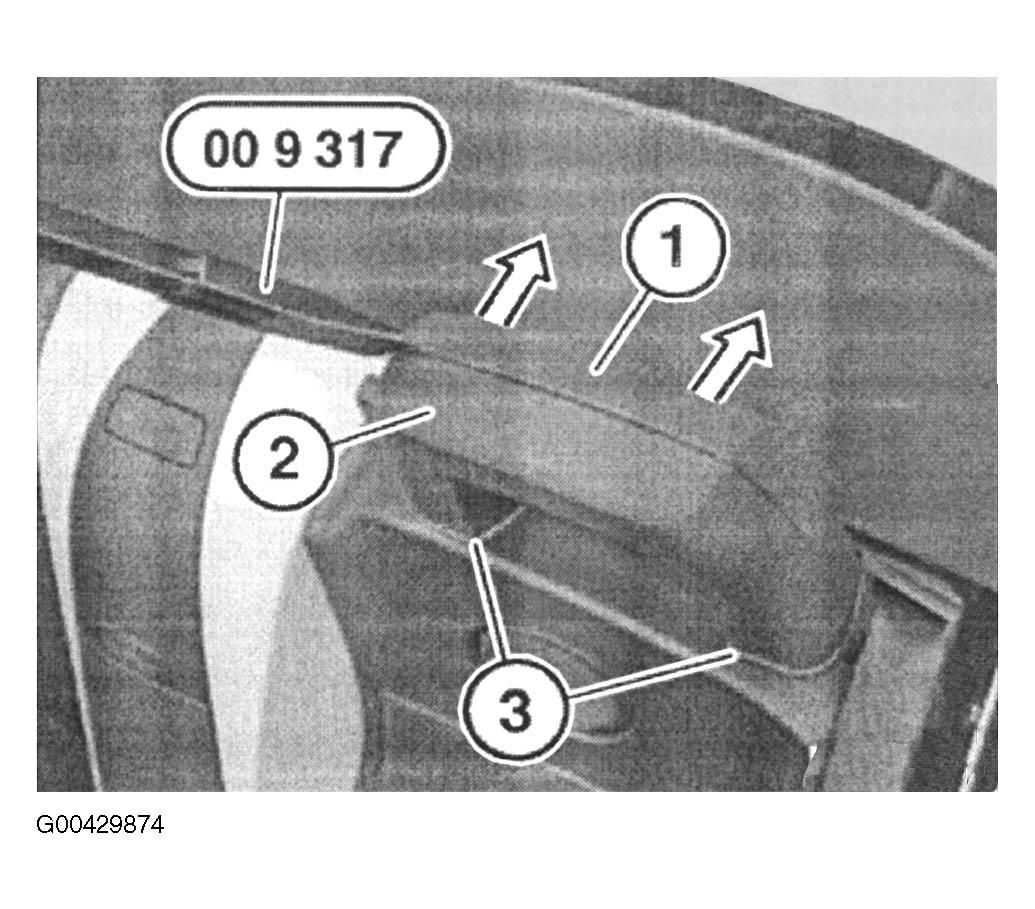

Carefully slide special tool 00 9 317 between covers (1 and 2) and detach cover (1) in direction of arrow from catches.

Installation: Fit cover (1) correctly in intermediate rings (3).

Fig 1: Fitting Cover (1) In Intermediate Rings (3)

Courtesy of BMW OF NORTH AMERICA, INC.

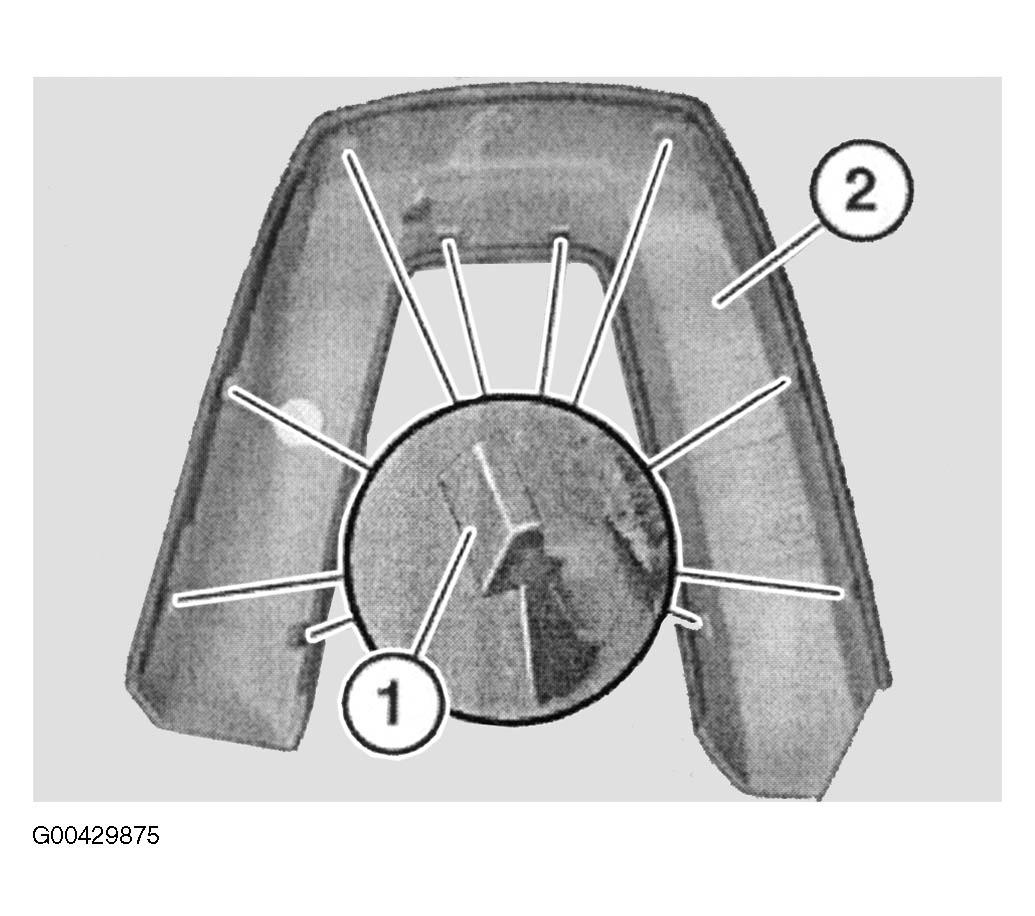

Catches (1) on cover (2) must not be damaged.

Fig 2: Ensuring Catches On Cover Are Not Damaged

Courtesy of BMW OF NORTH AMERICA, INC.
