51 43 030 Removing and installing/replacing cover on front left or right rollover protection bar

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover on rear rollover protection bar.

On version with wind deflector, lever out plugs (1) with needle and release screws underneath. Take off holder (2).

Installation: Replace plugs (1).

Fig 1: Removing Holder (2)

Courtesy of BMW OF NORTH AMERICA, INC.

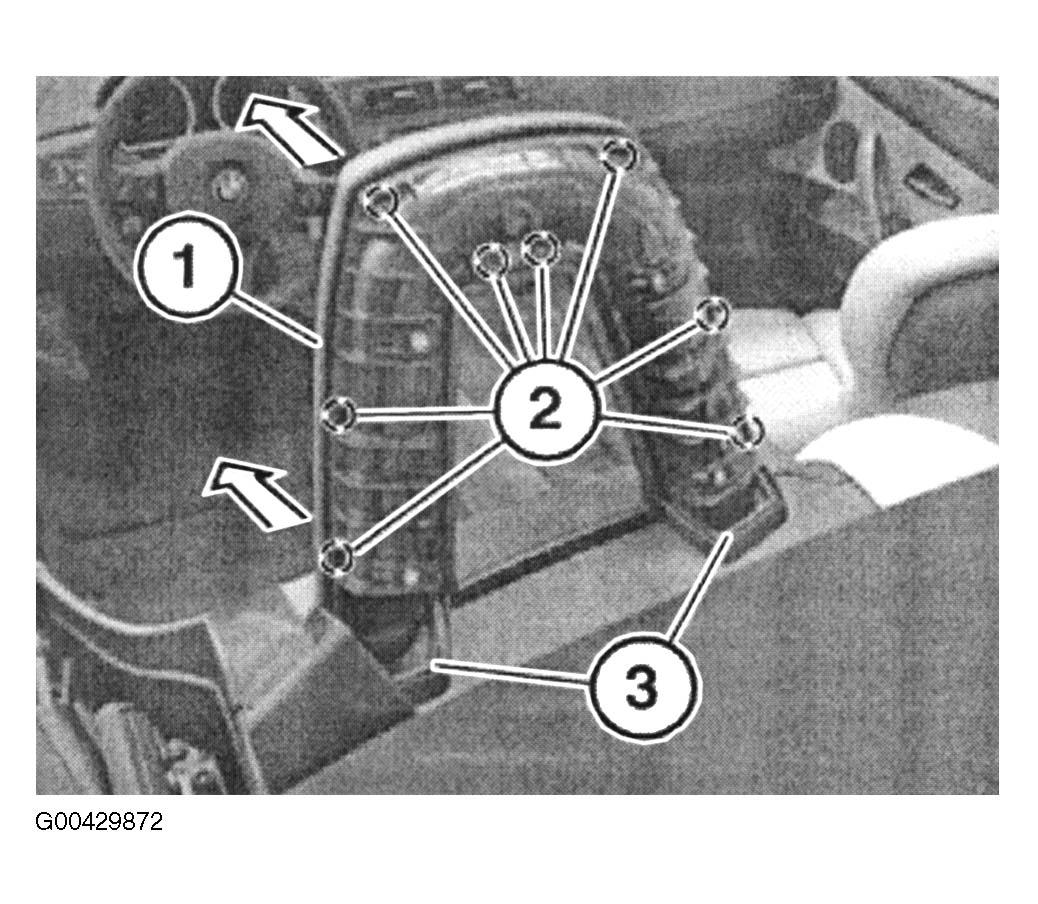

Release catches (2) and remove cover (1) in direction of arrow. Installation: Fit cover (1) correctly in intermediate rings (3).

Fig 2: Removing Cover In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

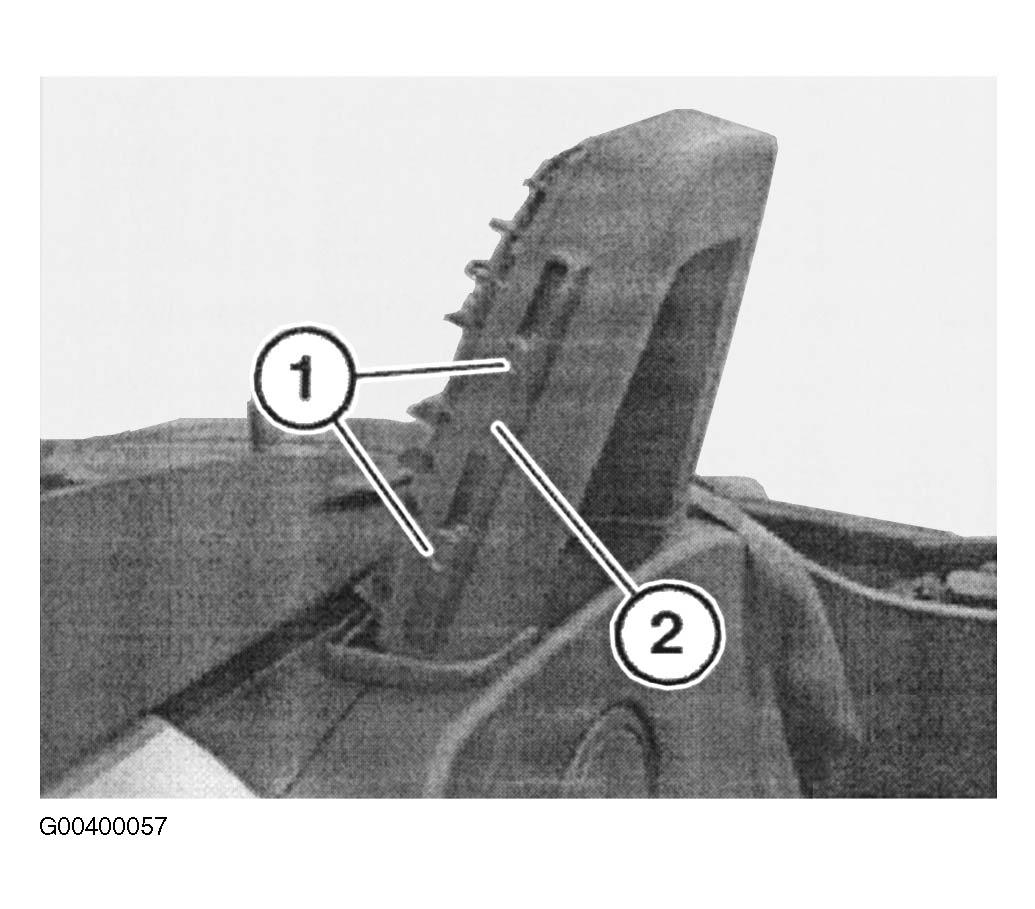

Installation: Ensure catches (1) on cover (2) are not damaged.

Fig 3: Identifying Catches (1) On Cover (2)

Courtesy of BMW OF NORTH AMERICA, INC.
