51 12 050 Removing and installing/replacing carrier for rear bumper trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Remove Rear Bumper Trim . Remove Trim On Tail Panel .

If necessary, unclip aerial (1) in area (2).

Release nuts (1) on left/right and remove carrier (2) straight towards rear. Tightening torque, see 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

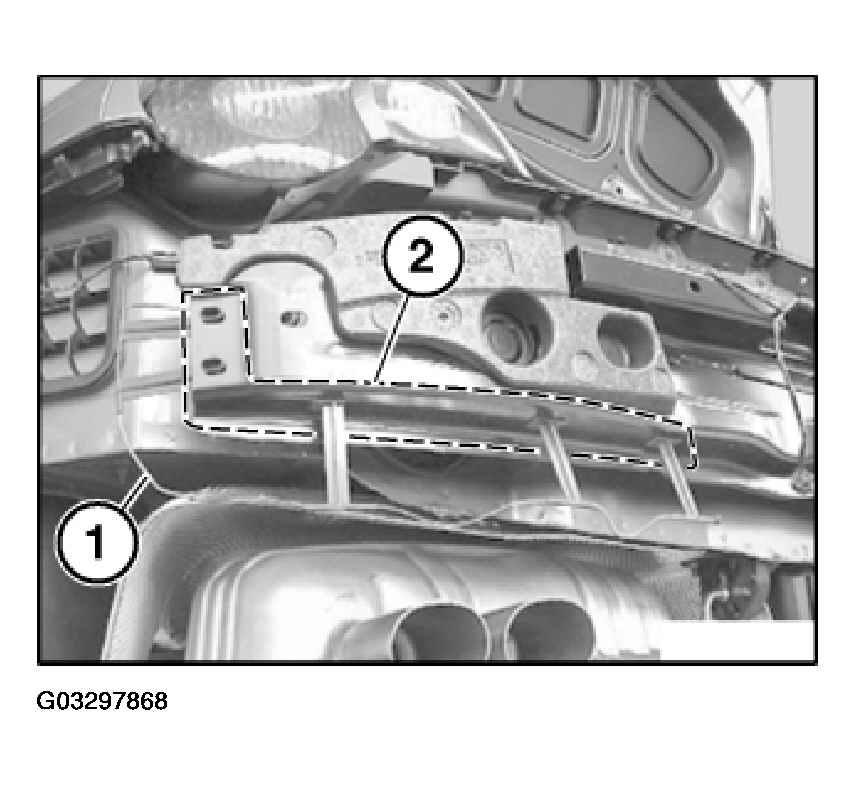

Fig 1: Unclipping Aerial (1) In Area (2)

Courtesy of BMW OF NORTH AMERICA, INC.

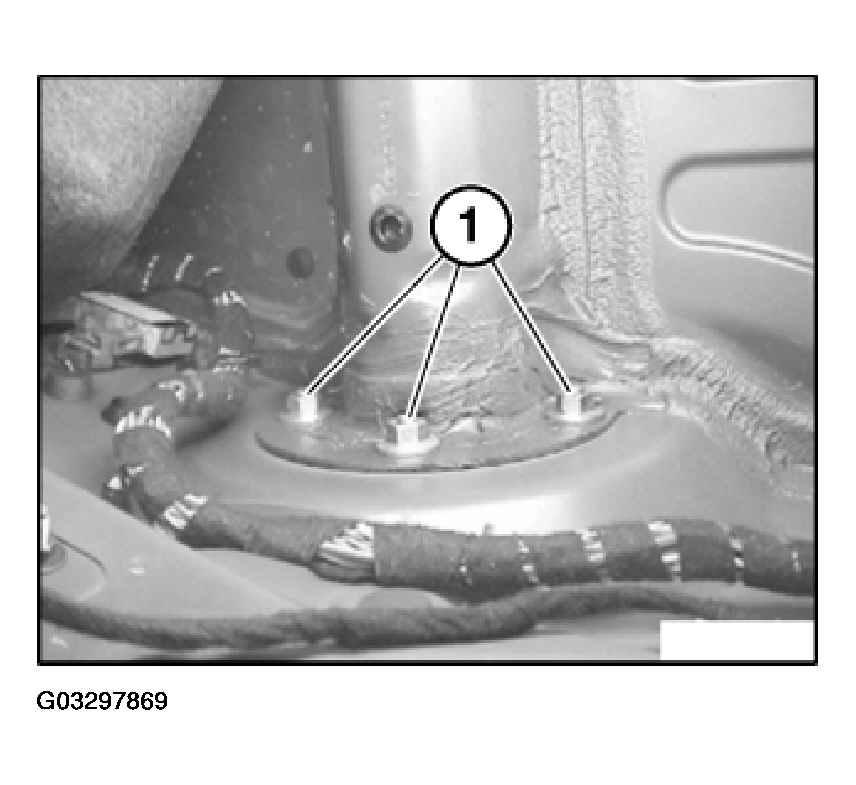

Fig 2: Releasing Nuts (1) On Left/Right & Remove Carrier (2)

Courtesy of BMW OF NORTH AMERICA, INC.
