51 16 340 Removing and installing/replacing fastener for right glovebox (without active knee protection)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Open right glovebox.

Release screws (1) and remove fastener for right glovebox (2) from right glovebox (3).

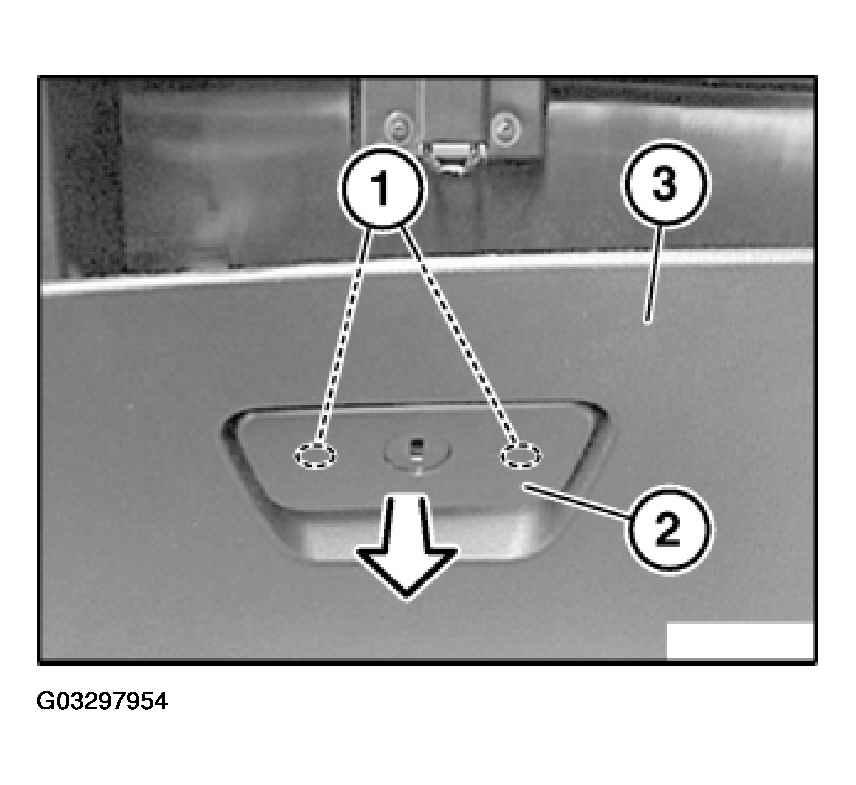

Fig 1: Releasing Screws (1) And Removing Fastener For Right Glovebox (2) From Right Glovebox (3)

Courtesy of BMW OF NORTH AMERICA, INC.
