51 71 447 Removing and installing or replacing panel for cover on left or right side member

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1 and 2). Release clips (3).

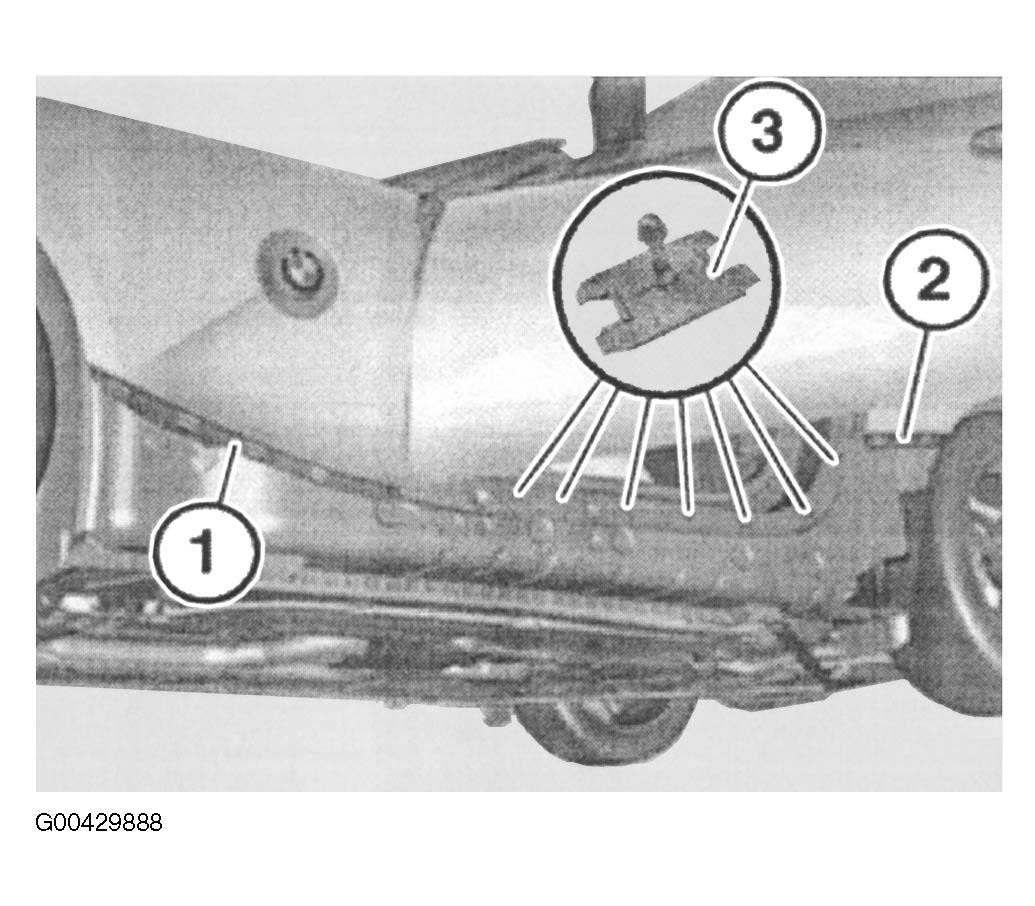

Fig 1: Releasing Screws (1 & 2), & Releasing Clips (3)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip panel (1) in areas (A and B) from holders in direction of arrow.

Release panel (1) at clips (2) and remove in direction of arrow.

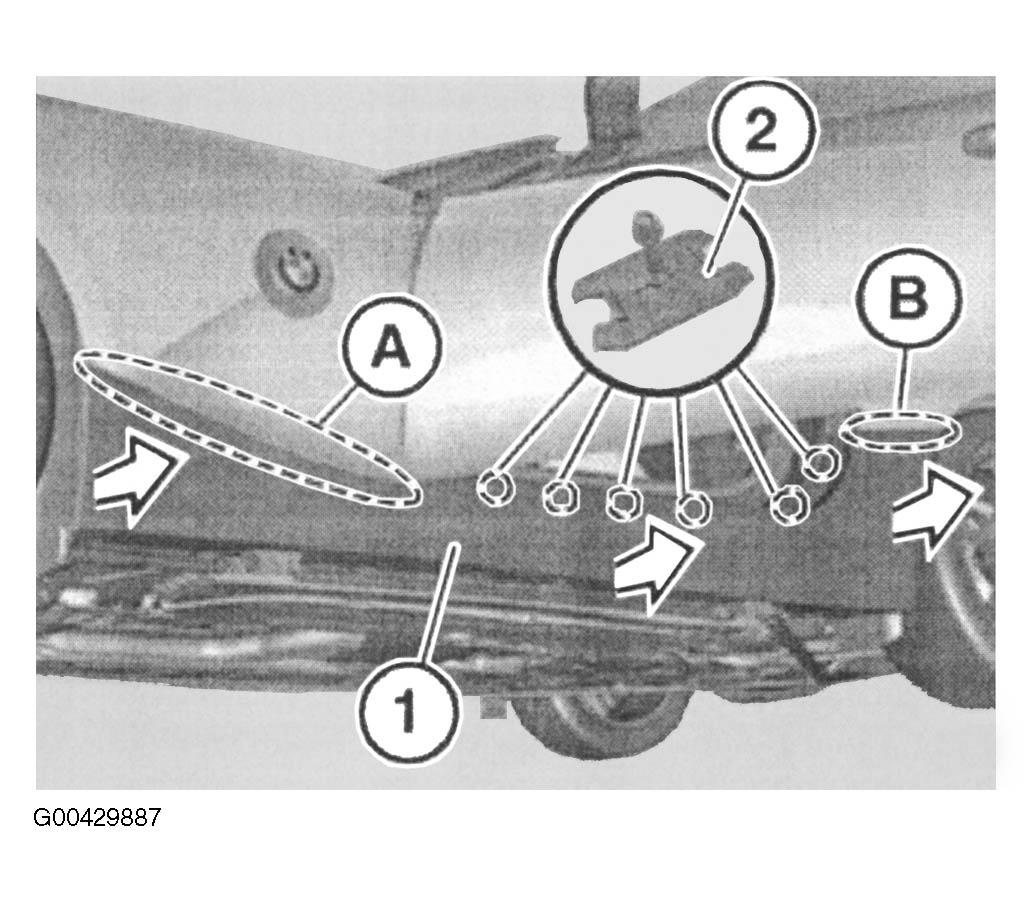

Fig 2: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Catches of panel (1) in areas (A and B) must not be damaged.

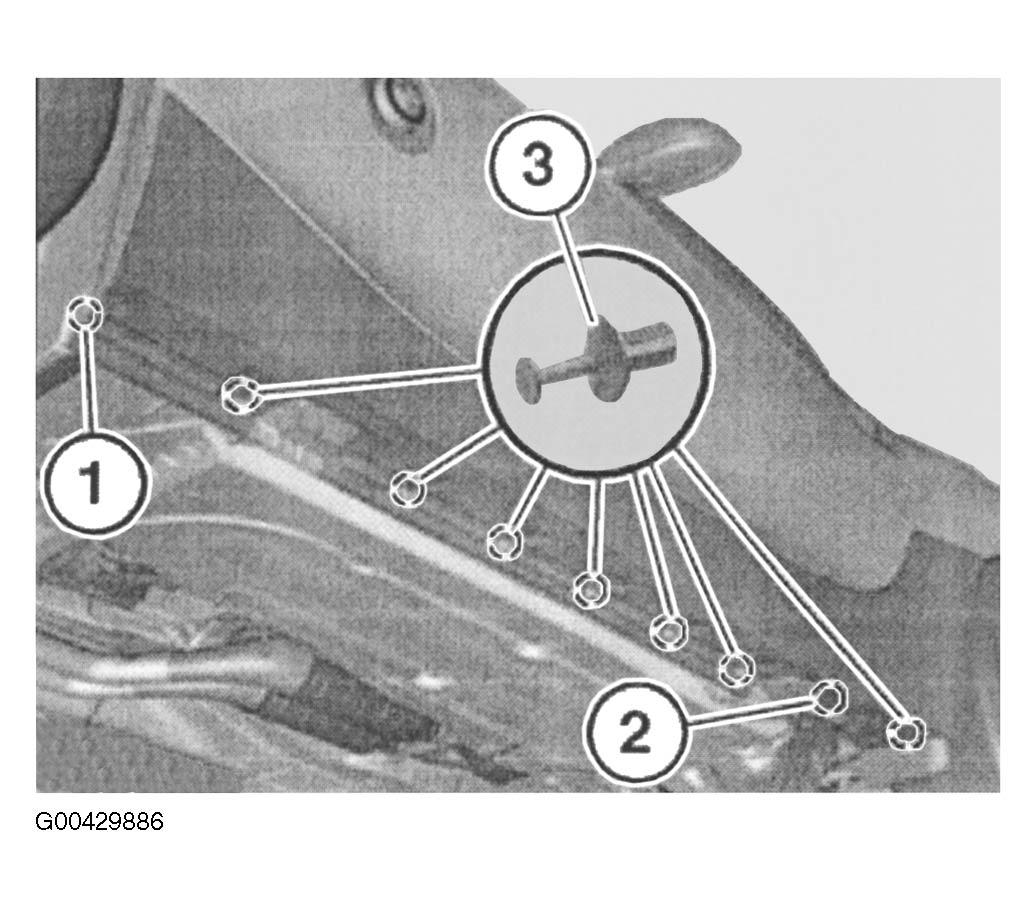

Fig 3: Identifying Holders & Clips

Courtesy of BMW OF NORTH AMERICA, INC.
