51 71 390 Removing and installing/replacing reinforcement plate on rear axle
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 120
IMPORTANT:
Vehicles must not be driven without reinforcement plates.
Driving without the reinforcement plate may damage the vehicle body.
Screws of reinforcement plate must be tightened to torque and then tightened down with special tool 00 9 120.
Driving without the reinforcement plate may damage the vehicle body.
Screws of reinforcement plate must be tightened to torque and then tightened down with special tool 00 9 120.

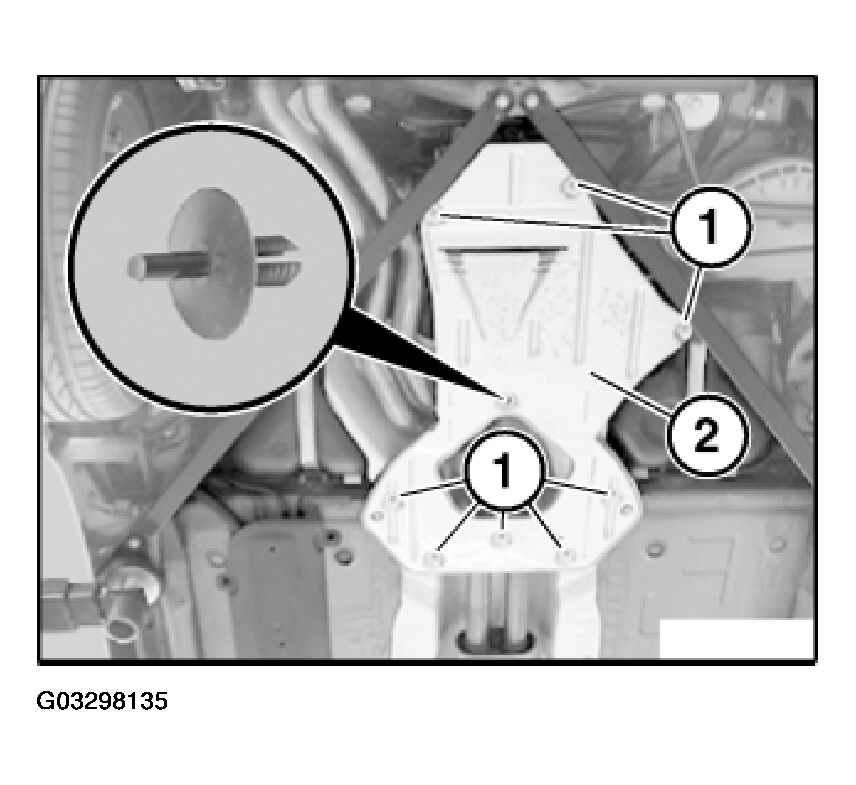

Removing heat shield (2):
- Release clip.
- Release screws (1).

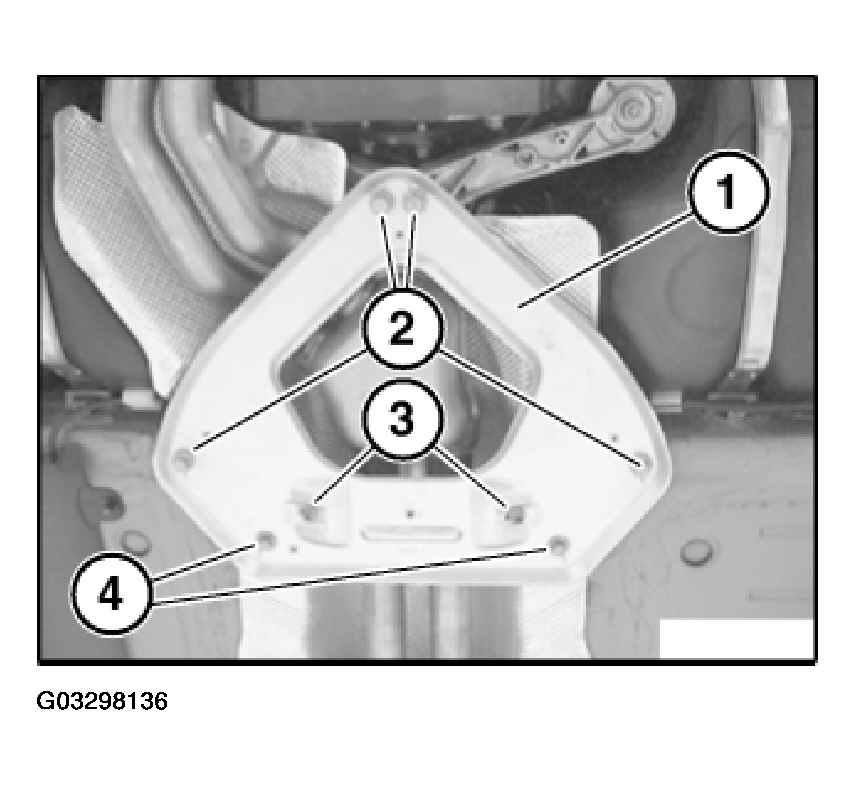

Release nuts (3), screws (4) and screws (2) and remove reinforcement plate (1).
Installation:
Replace screws (2).
- Insert screws.
- Tighten down screws (2) to torque and then to angle of rotation,
Tightening torque, see 51 71 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
- Tighten down screws (4) and nuts (3),
Tightening torque, see 51 71 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
