51 71 371 Removing and installing/replacing tension strut on left or right spring strut dome
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 120
IMPORTANT:
Vehicles must not be driven without tension struts.
Driving without tension struts may damage the vehicle body.
Tension strut nuts must be tightened to torque and then tightened down with special tool 00 9 120.
Driving without tension struts may damage the vehicle body.
Tension strut nuts must be tightened to torque and then tightened down with special tool 00 9 120.

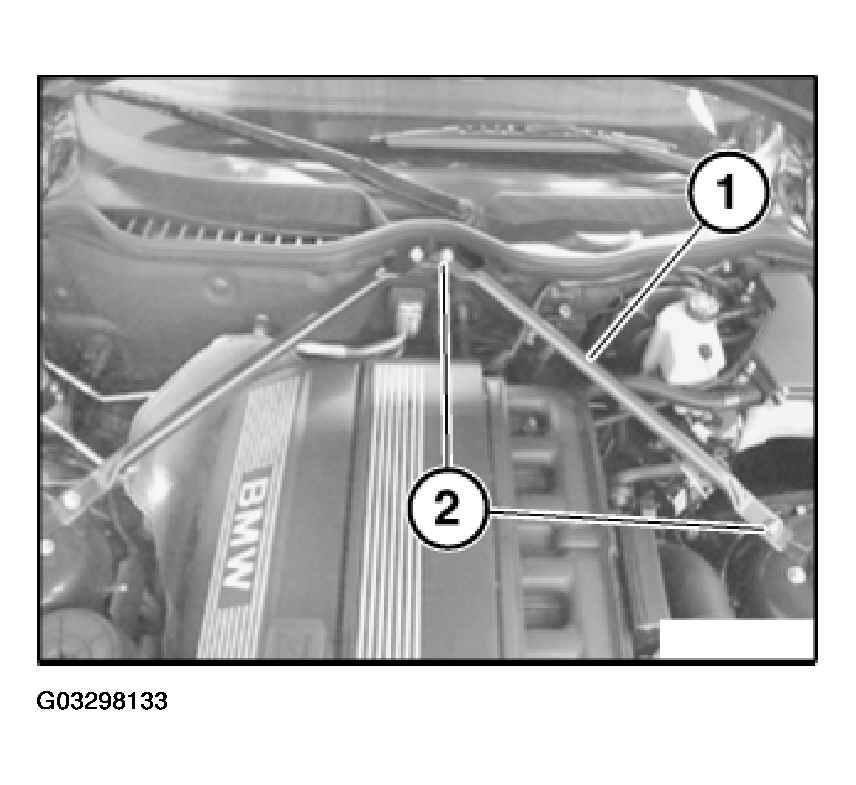

Release nuts (2) and remove tension strut (1).
Installation:
Tighten down nuts (2) to torque and then to angle of rotation,
Tightening torque, see 51 71 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
