51 71 038 Removing and installing/replacing front left or right wheel arch cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before removing front right wheel arch cover, unclip two cable holders in area of bulkhead.

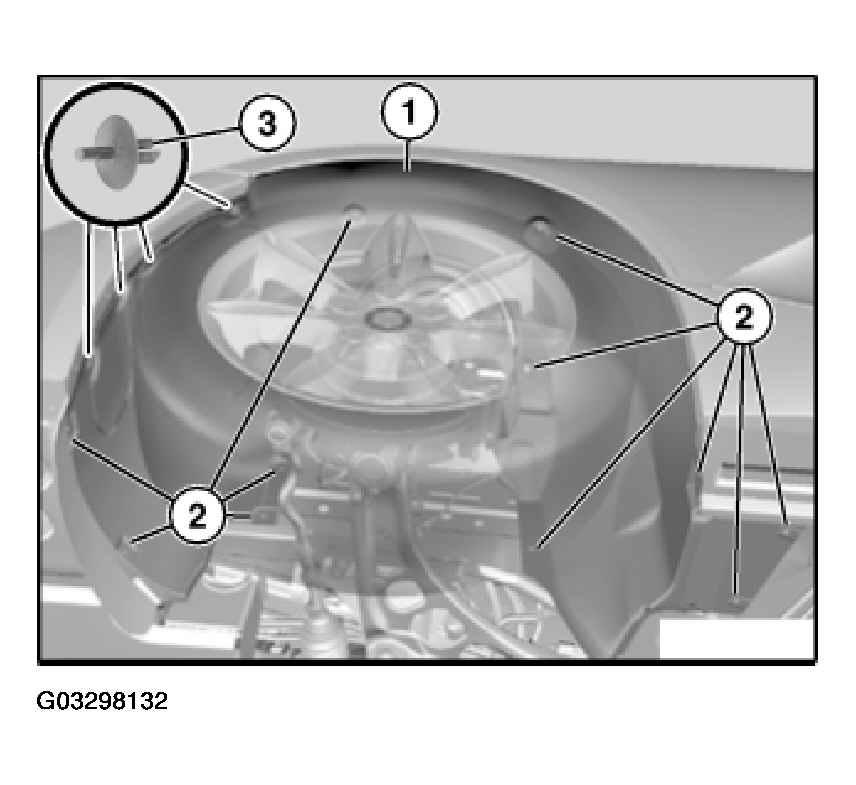

Release expansion rivets (3).
Loosen screws (2).
Remove front wheel arch cover (1).
Installation:
Make sure front wheel arch cover is correctly seated on side wall.
