51 13 115 Removing and installing/replacing cowl panel cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both windshield wiper arms. See 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS .

Slacken screws (1) on electronics box cover (2).

Remove cover (2).

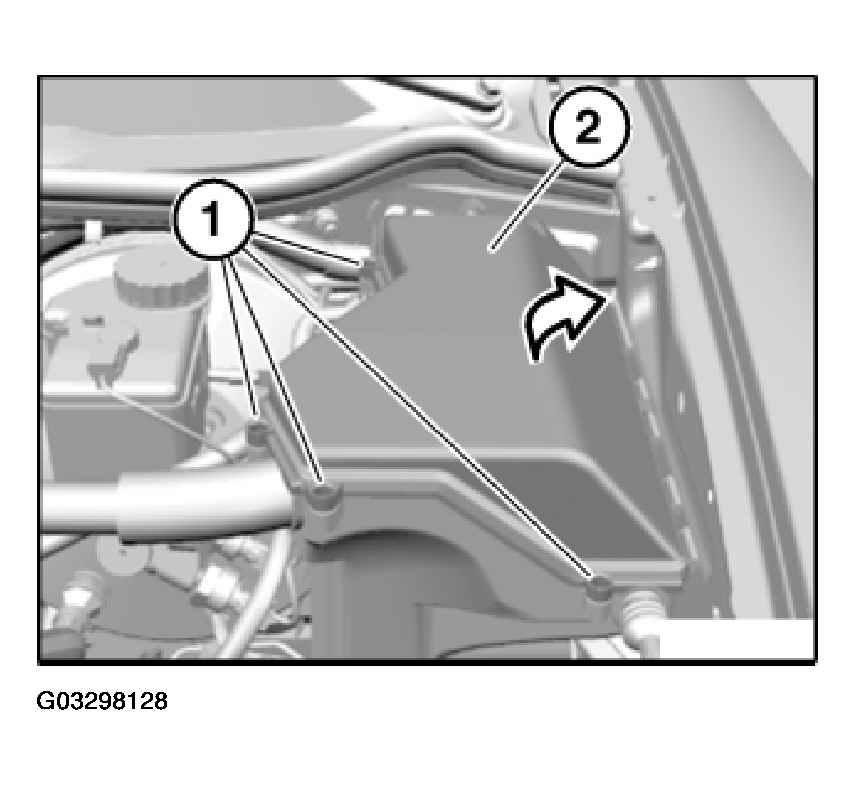

Fig 1: Removing Electronics Box Cover

G03298128

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable from cable holder (1).

Remove clip (2).

Removing cowl panel cover

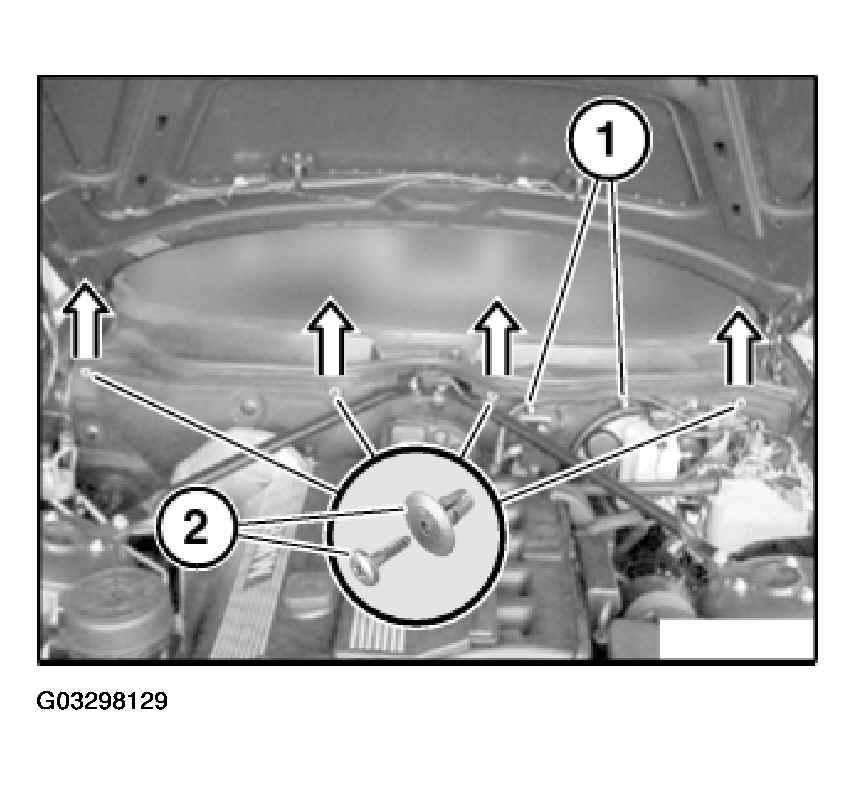

Fig 2: Removing Cowl Panel Cover

G03298129

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace defective grommets (1).

Check holder (2) for correct seating.

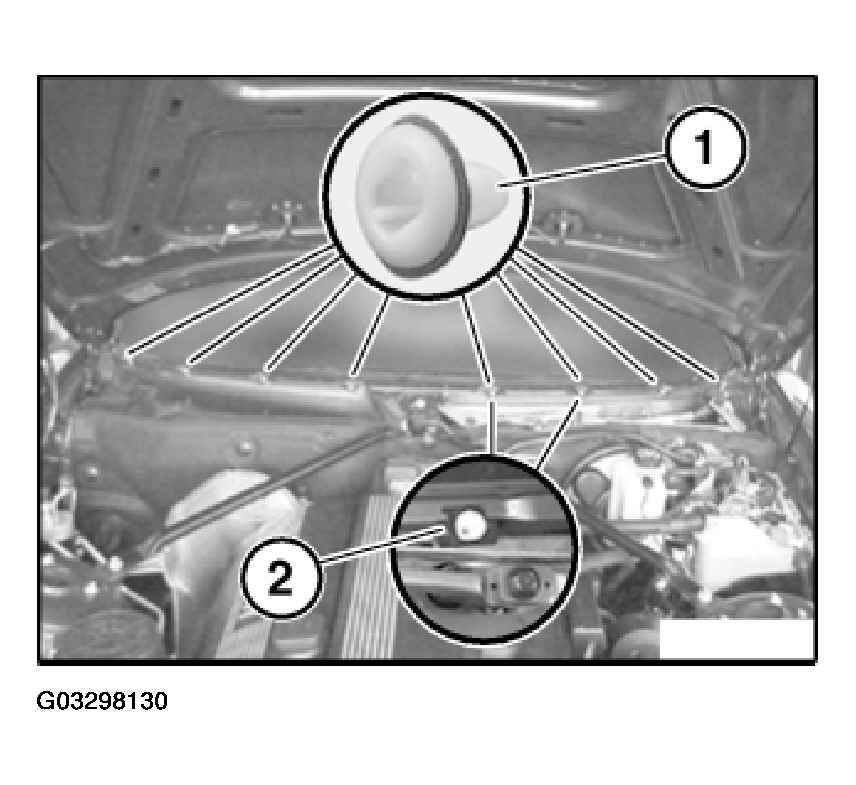

Fig 3: Replacing Defective Grommets

G03298130

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) must not be missing or damaged.

Fastening clips (2) must not be damaged.

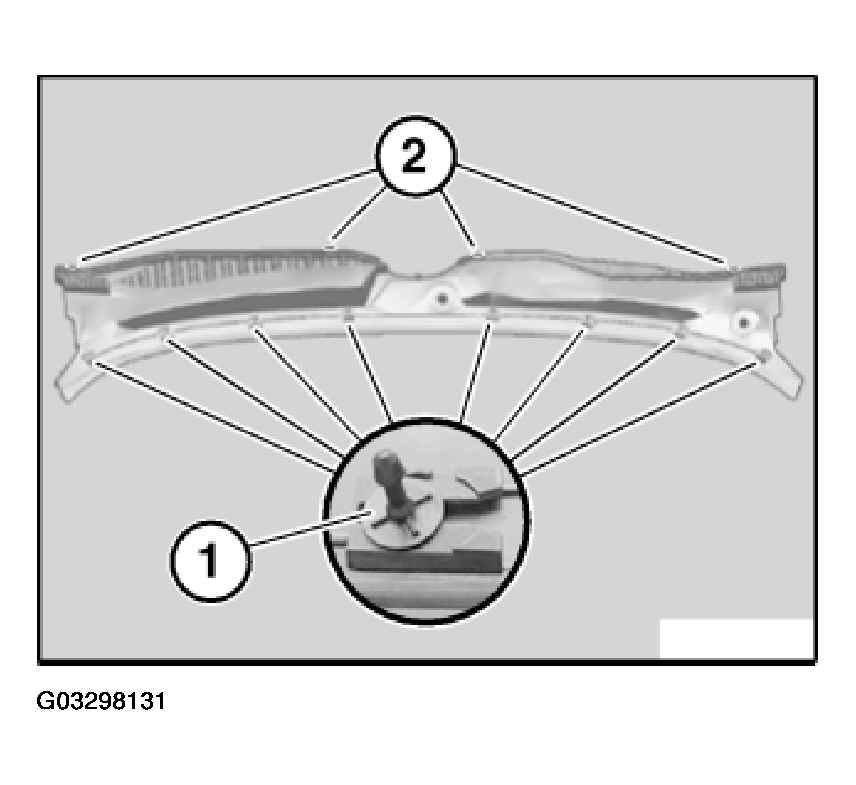

Fig 4: Locating Fastening Clips

G03298131

Courtesy of BMW OF NORTH AMERICA, INC.
