51 33 000 Removing and installing power window regulator in left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Door Window Glass .

IMPORTANT: Disconnect plug connection (1) from power window motor (2) (risk of trapping).

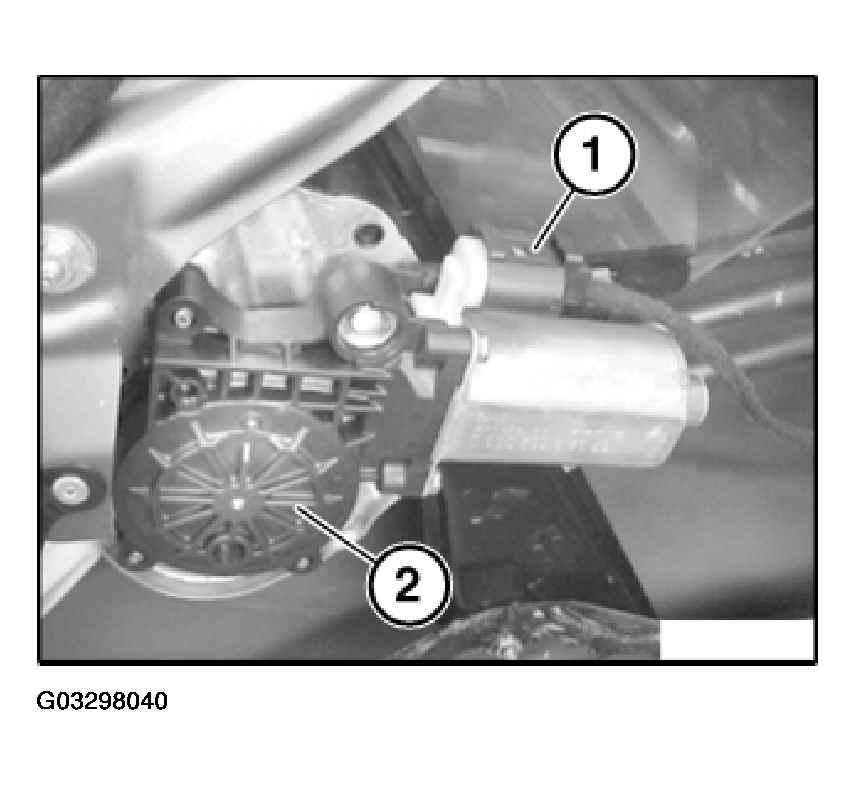

Fig 1: Disconnecting Plug Connection From Power Window Motor

G03298040

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) and release nut underneath.

Unscrew nut (2).

Installation:

Tightening torque, see 51 33 2A in BODY EQUIPMENT - TIGHTENING TORQUES .

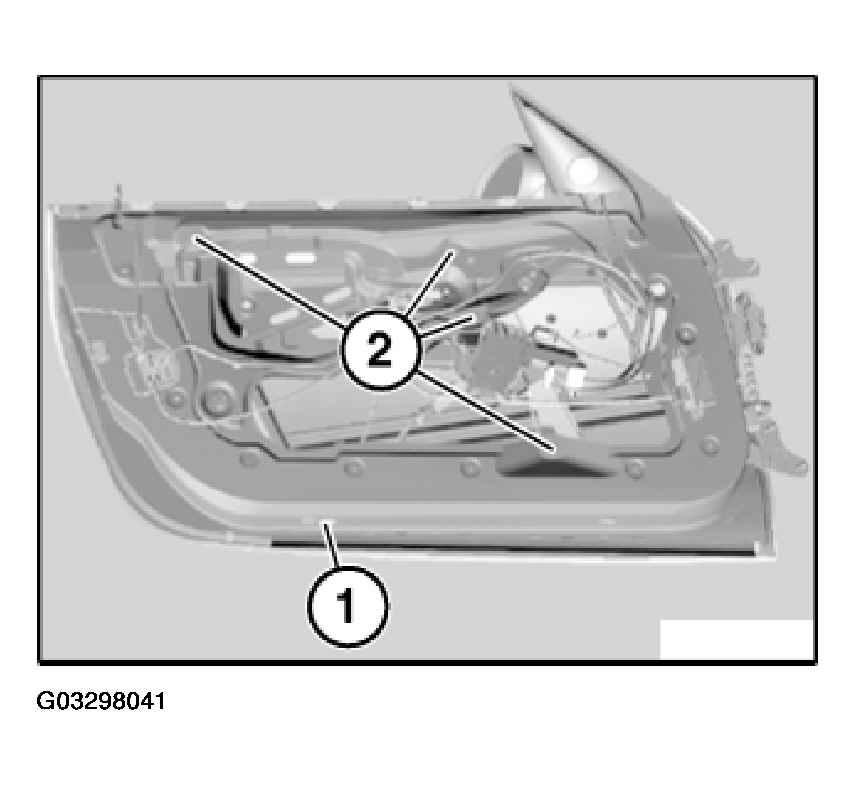

Fig 2: Releasing Nut Underneath

G03298041

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip drive cable (3) correctly into clips (1 and 2).

Open clip (1) points forward and that of clip (2) downwards.

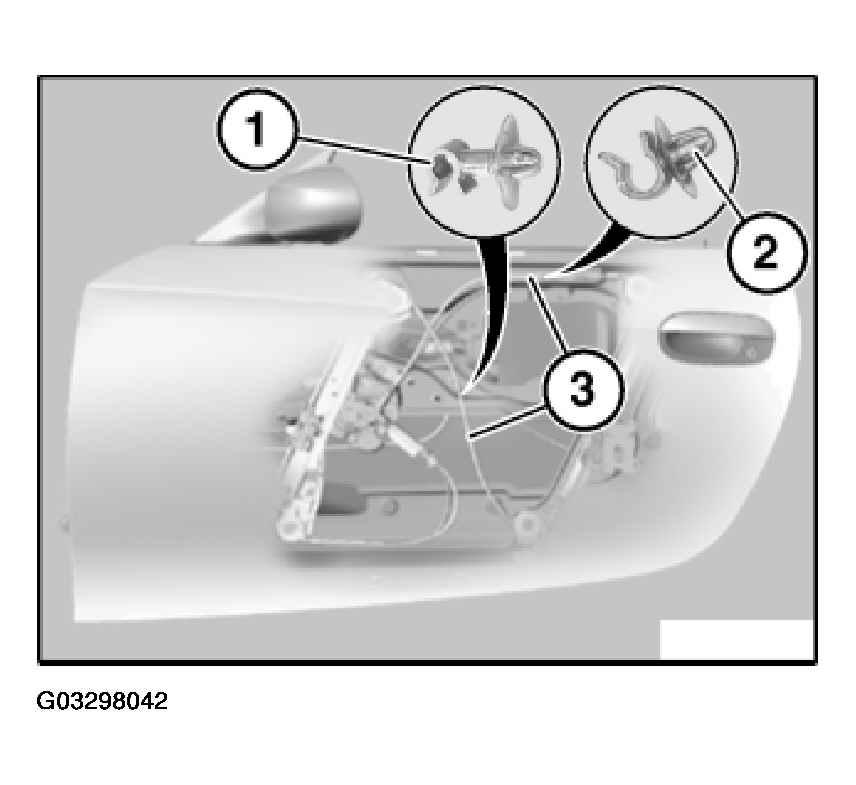

Fig 3: Ensuring Clip (1) Points Forward And Clip (2) Points Downward

G03298042

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of window lift:

Feed out rear window lift rail
Feed out front window lift rail

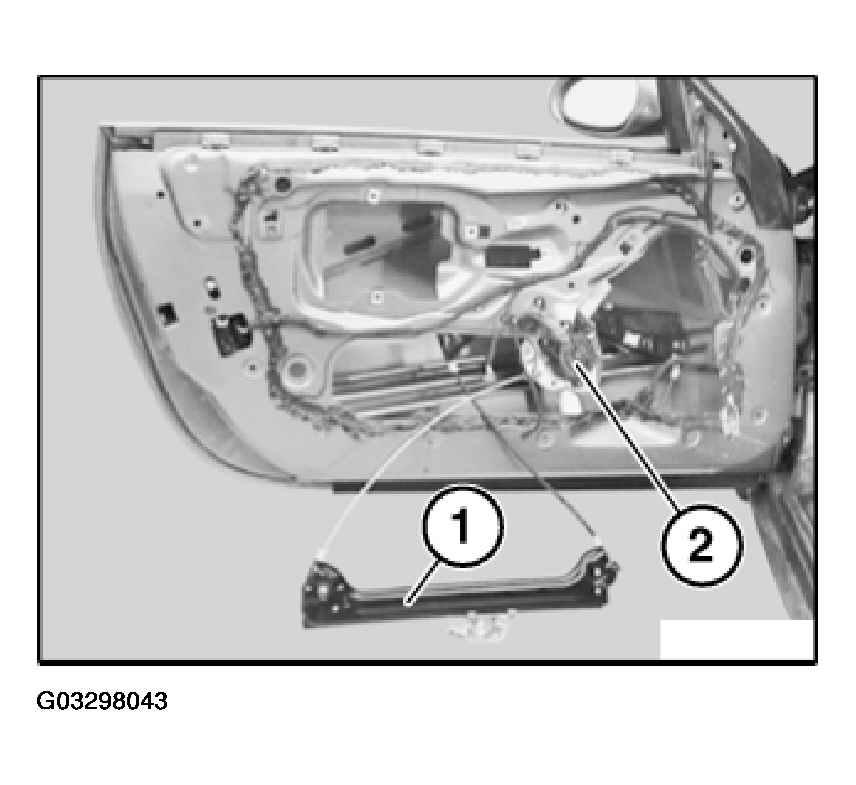

Fig 4: Removing Window Lift Rail
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert adjusting plate (1) on rear window lift rail (3) correctly into guide on window lift support (2).

Replacement only:

Remove flat motor (4).

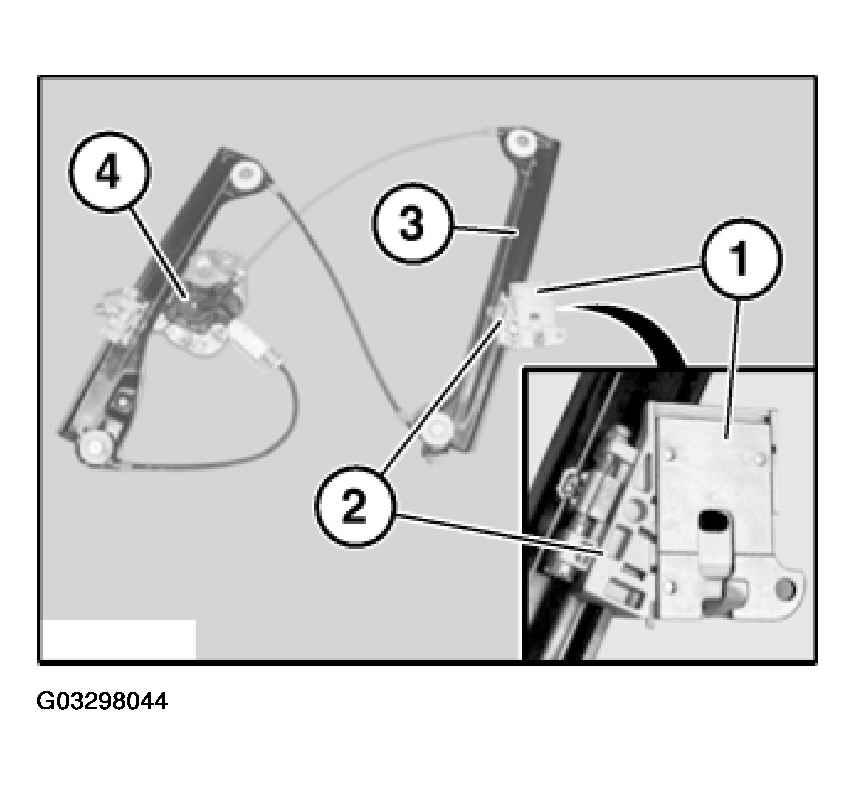

Fig 5: Inserting Adjusting Plate (1) On Rear Window Lift Rail (3)

G03298044

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Release screws (1) and detach flat motor (2).

Installation:

Tightening torque, see 67 62 1AZ in ELECTRICAL DRIVES - TIGHTENING TORQUES .

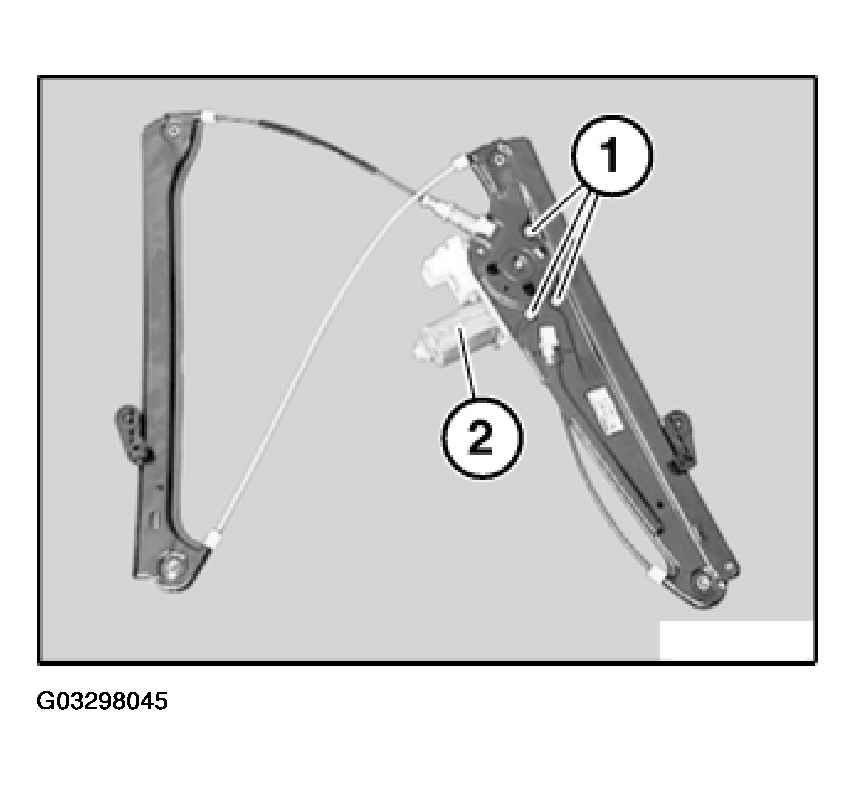

Fig 6: Releasing Screws (1) And Detaching Flat Motor (2)

G03298045

Courtesy of BMW OF NORTH AMERICA, INC.
