51 21 280 Removing and installing or replacing door retainer on left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Close door windows. Remove sound insulation in front area.

NOTE: Secure front door against falling closed.

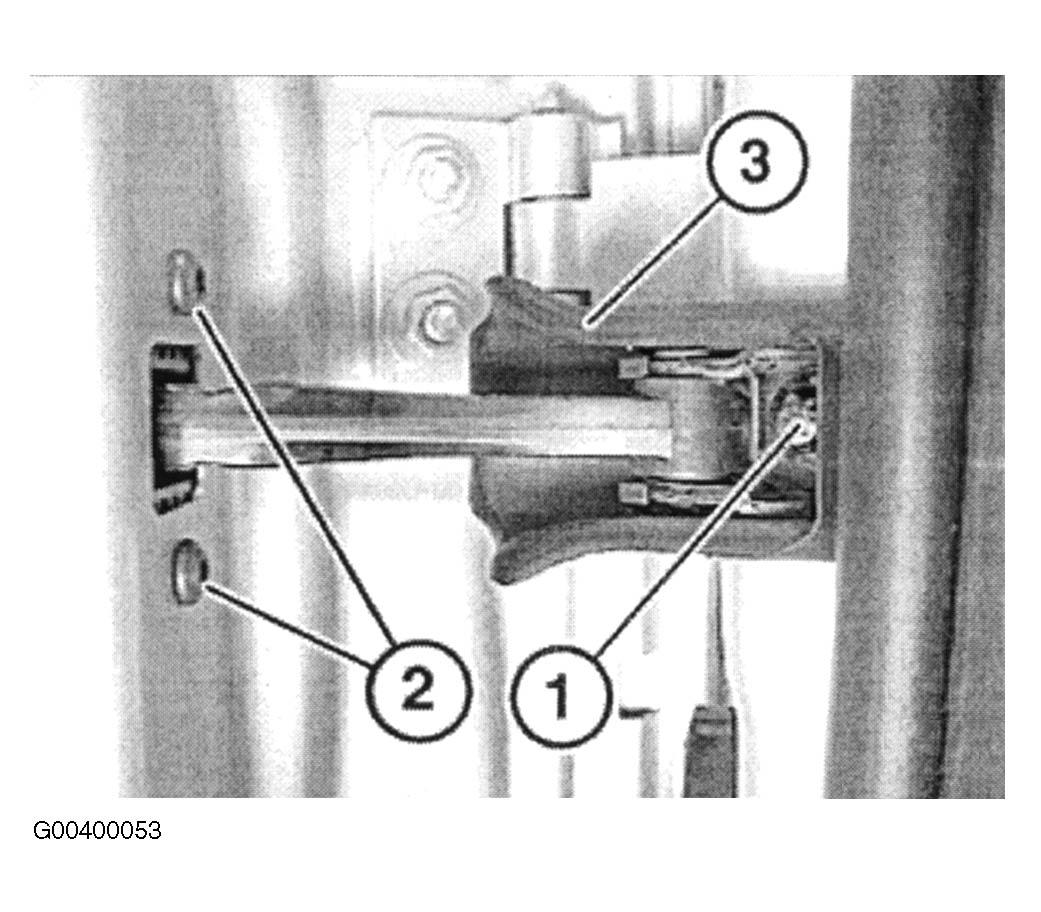

Release screw (1). Tightening torque, see 51 21 9AZ in BODY EQUIPMENT - TIGHTENING TORQUES . Release screws (2). Tightening torque, see 51 21 10AZ in BODY EQUIPMENT - TIGHTENING TORQUES . Remove seal (3). Installation: Seal (3) must not be damaged.

Fig 1: Removing Door Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

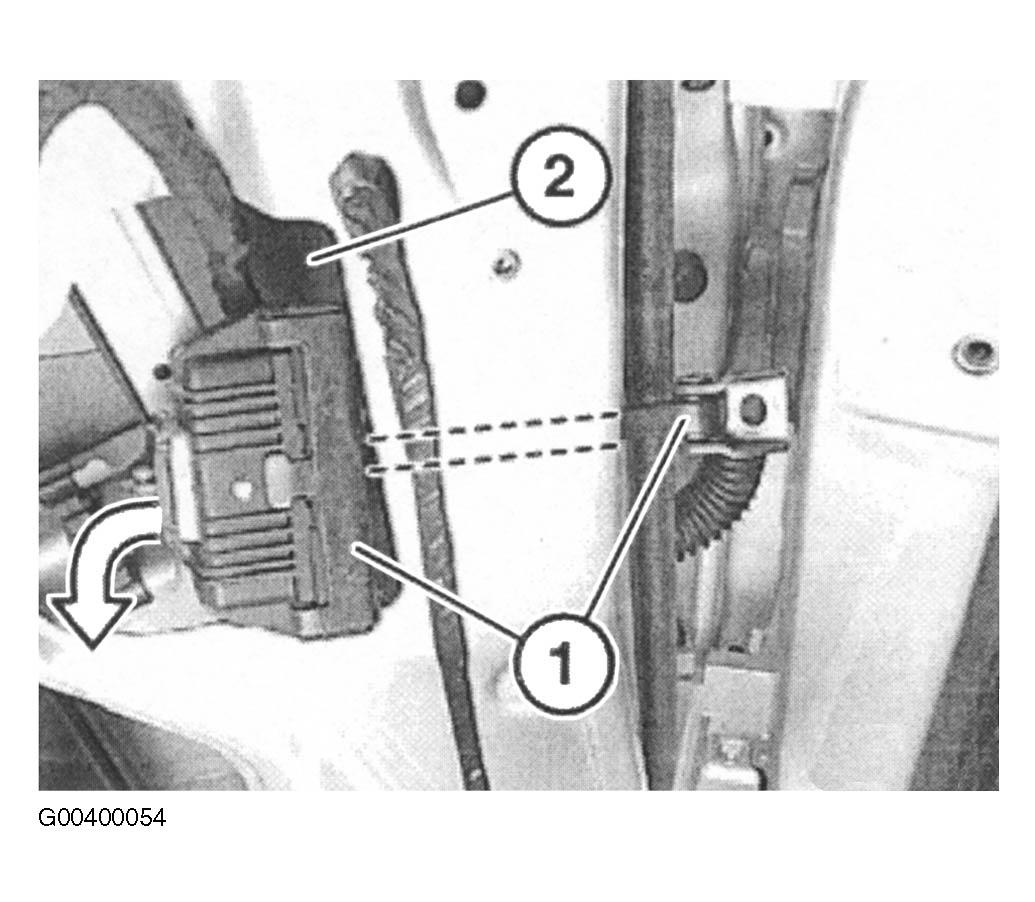

Remove door retainer (1) via cutout (2).

Fig 2: Removing Door Retainer Through Cutout

Courtesy of BMW OF NORTH AMERICA, INC.

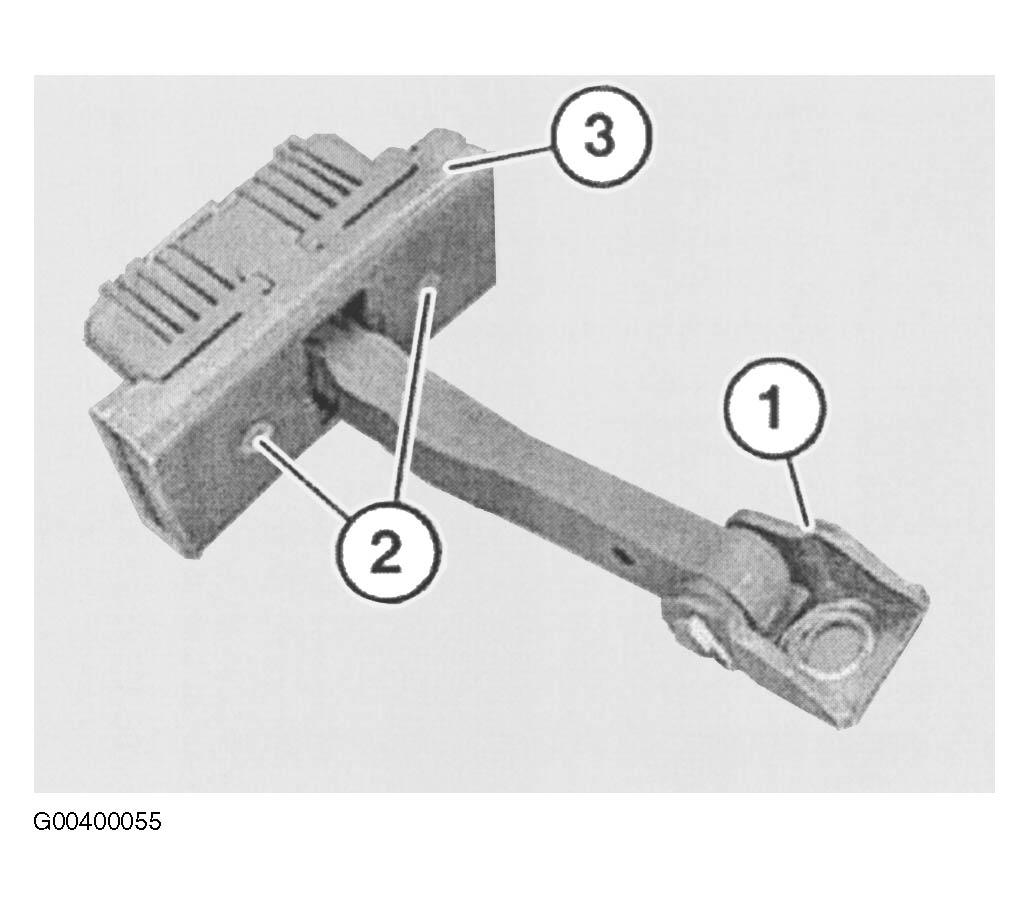

Installation: Following parts of door retainer (3) must not be damaged: (1) Hinge, (2) Thread.

Fig 3: Identifying Hinge & Thread

Courtesy of BMW OF NORTH AMERICA, INC.
