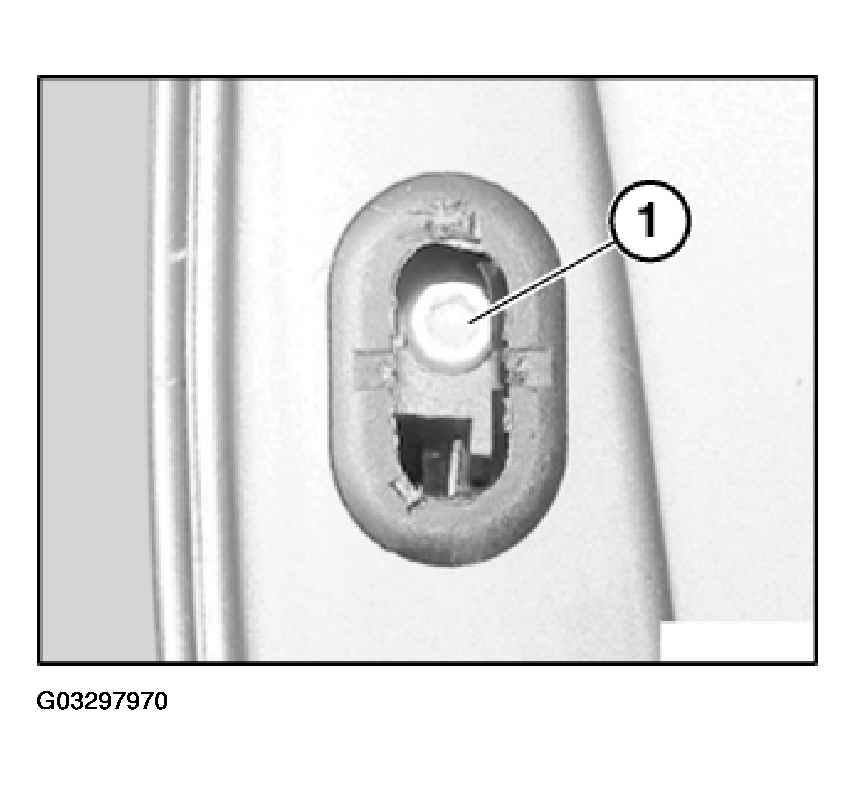

51 21 140 Removing and installing/replacing complete lock cylinder in left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Outside Handle On Front Door .

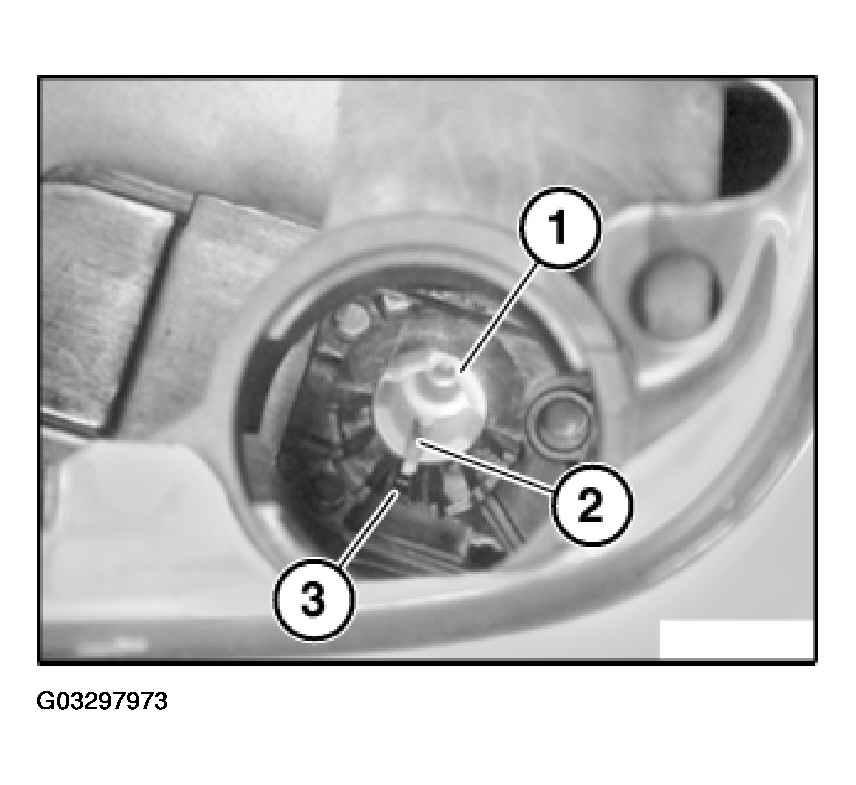

NOTE: Screw (2) must be outside lock cylinder (1).

Fig 1: Identifying Outside Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

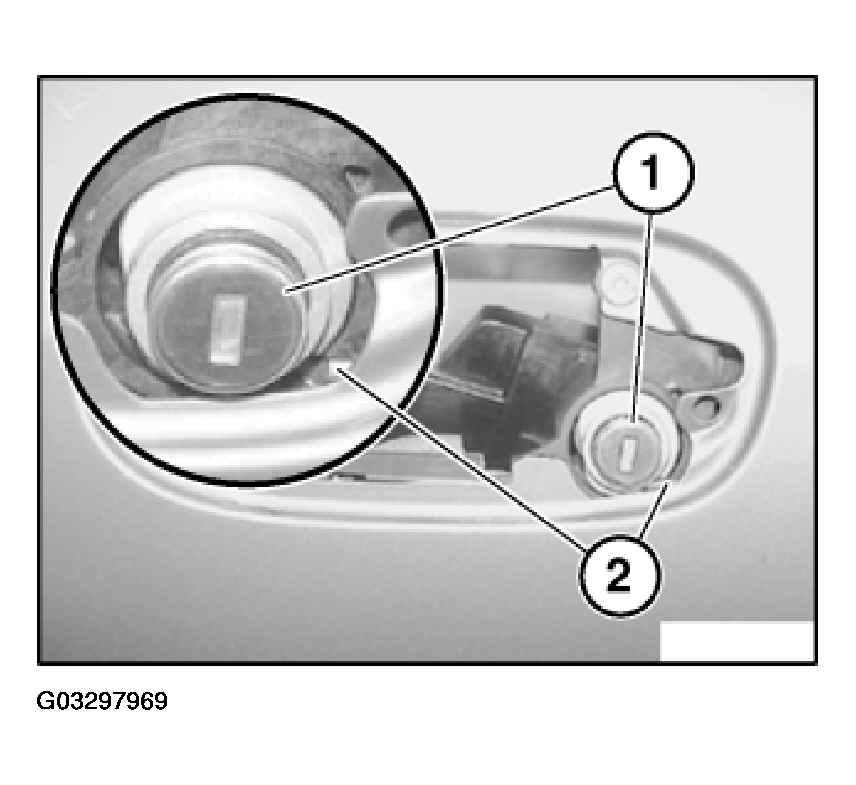

Release screw (1) until lock cylinder is free.

Fig 2: Releasing Screw Until Lock Cylinder Is Free

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

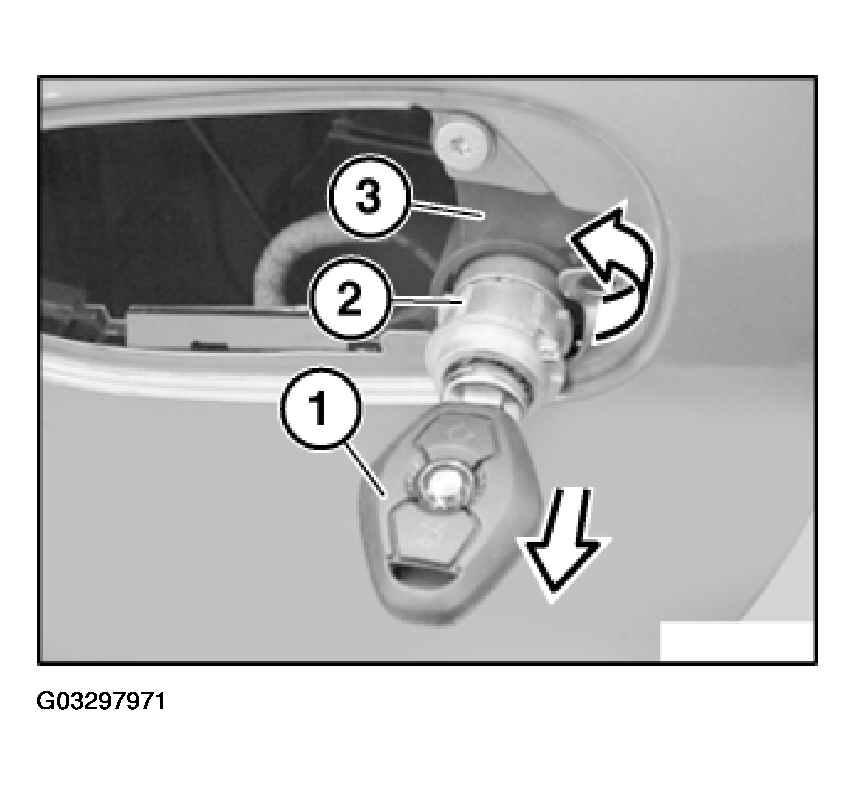

Insert ignition key (1) approx. 2/3 into lock cylinder (2).
Turn lock cylinder (2) with vehicle key (1) through 90°.
Pull lock cylinder (2) with ignition key (1) out of lock actuator (3)

Fig 3: Inserting Ignition Key Into Lock Cylinder
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

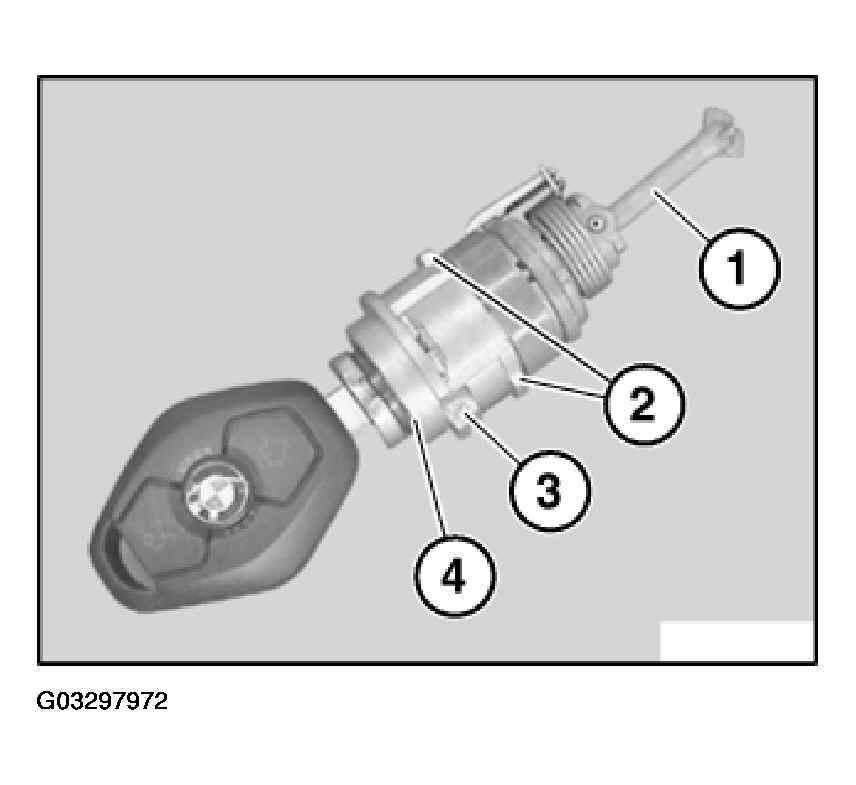

Following parts on lock cylinder (4) must not be damaged or missing:

Paddle
Guide
Stop for screw

Fig 4: Locating Parts Of Lock Cylinder
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Notch (2) of paddle mount (1) must be secured in catch (3).

Only in this position will installation of the lock barrel be guaranteed.

Fig 5: Ensuring Notch (2) Of Paddle Mount (1) Is Secured In Catch (3)

Courtesy of BMW OF NORTH AMERICA, INC.
