51 31 015 Repairing damage to windshields caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Field Of Vision (No Repairs Acceptable):

IMPORTANT: Repairs must only be carried out outside of the field of vision.

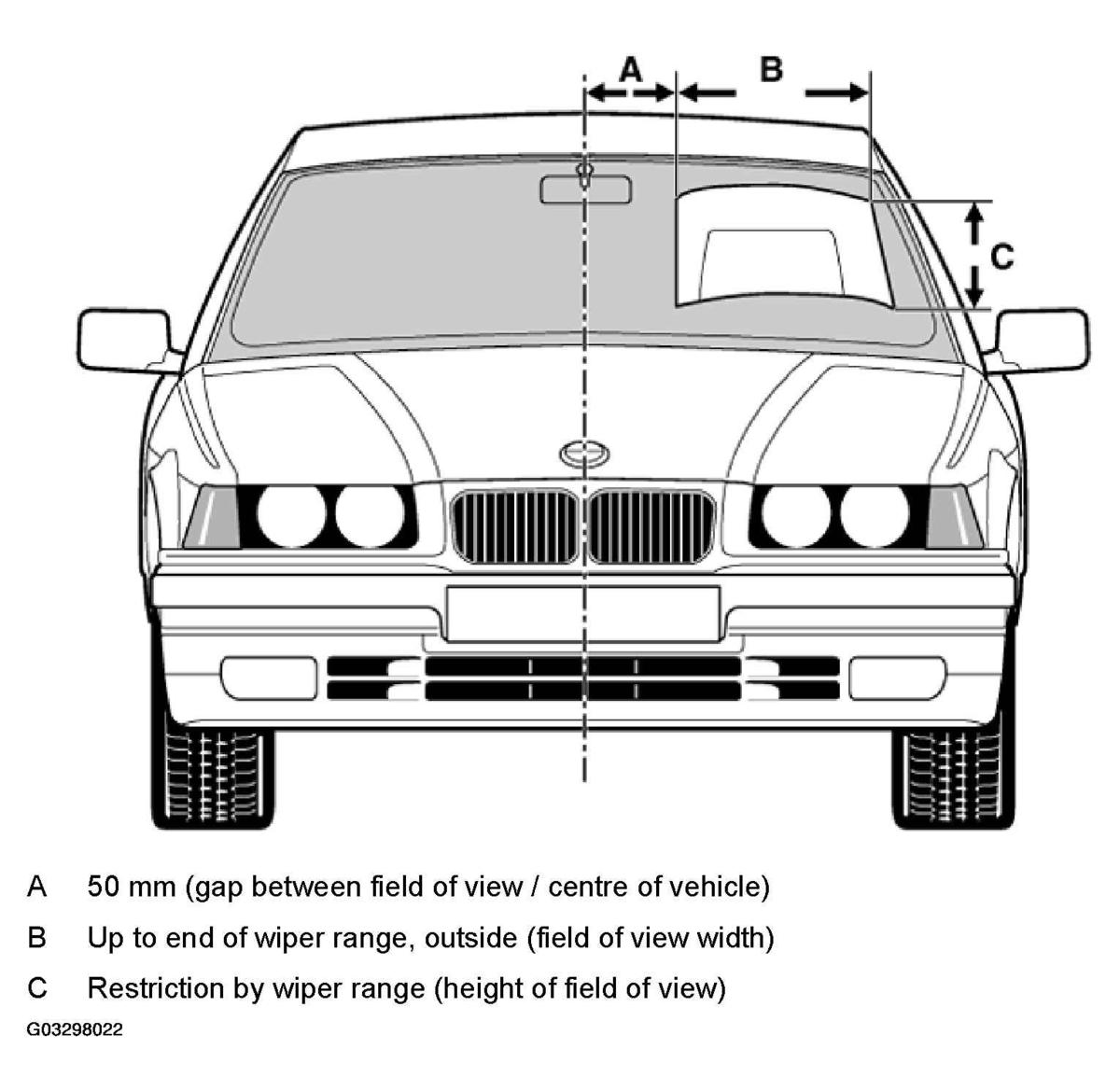

Fig 1: Identifying Windshield Field Of Vision
G03298022Courtesy of BMW OF NORTH AMERICA, INC.

If the stone chip damage is outside the field of vision,

refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN
