51 47 490 Removing and installing/replacing front underbody protection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (2) and pull out underbody protection (1) from under bumper trim (3).

Installation:

Ensure that seals are correctly seated.
Center underbody protection (1) and tighten down screws (2).

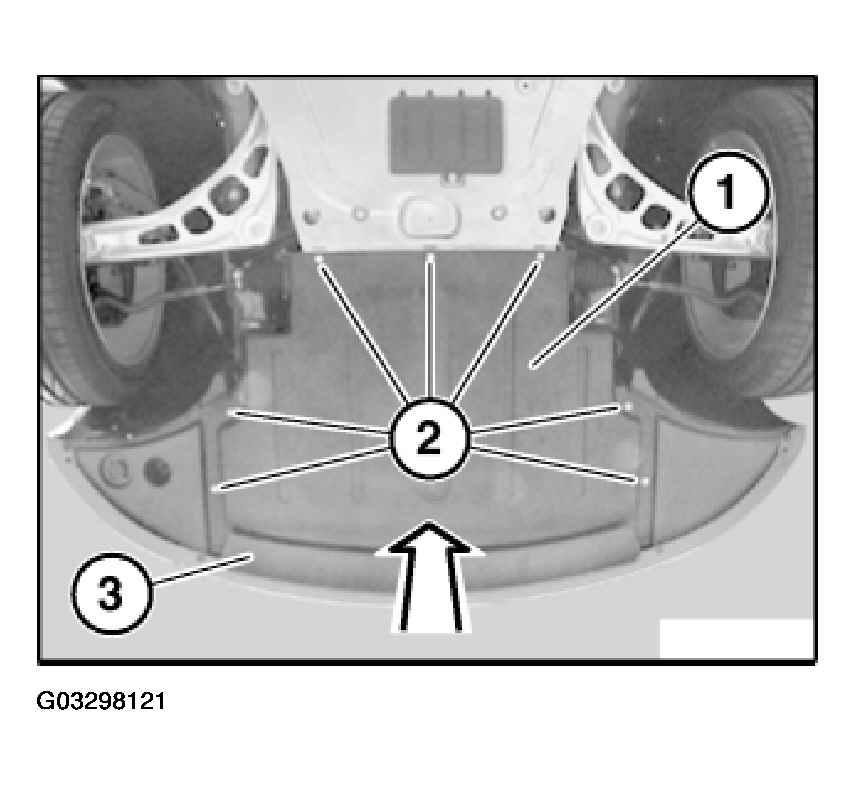

Fig 1: Releasing Screws (2) And Pulling Out Underbody Protection (1)
Courtesy of BMW OF NORTH AMERICA, INC.
