51 47 065 Removing and installing/replacing finishing strip at front left or right entrance

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Unclip clips (1) for finishing strip (2) with special tool 00 9 317. Remove finishing strip (2).

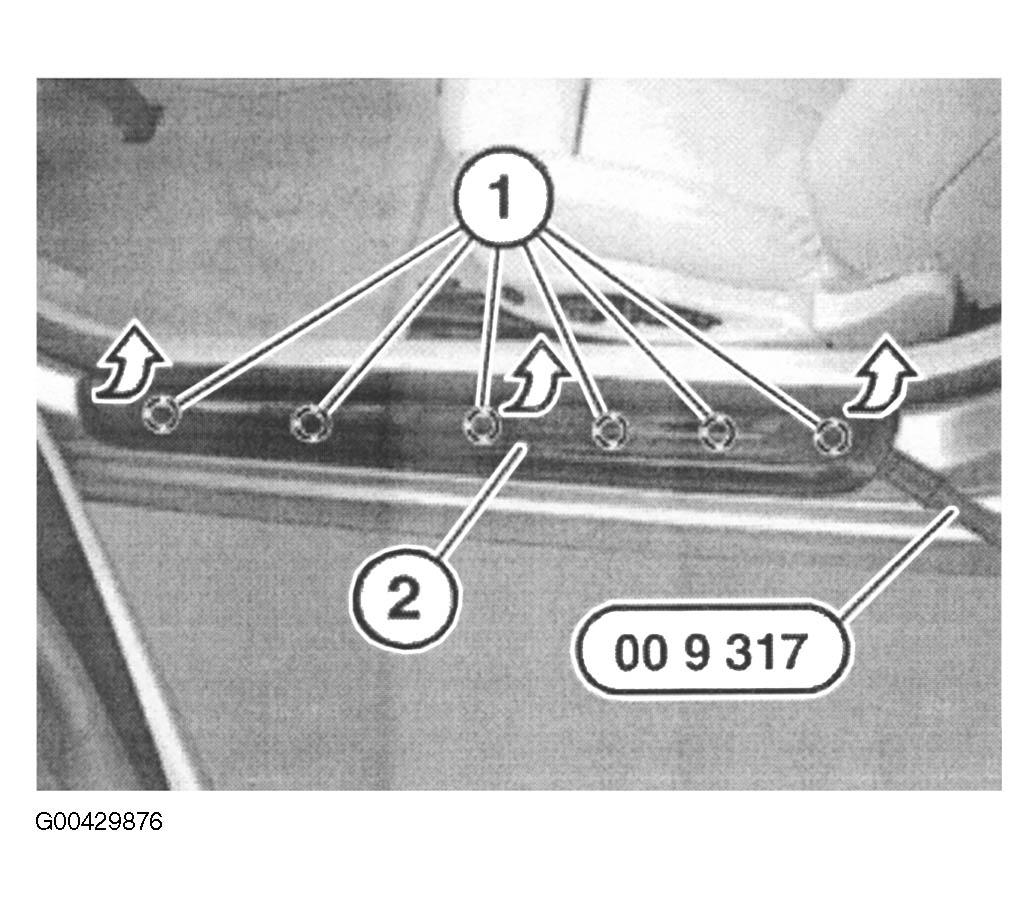

Fig 1: Removing Finishing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: If necessary, replace faulty clips.

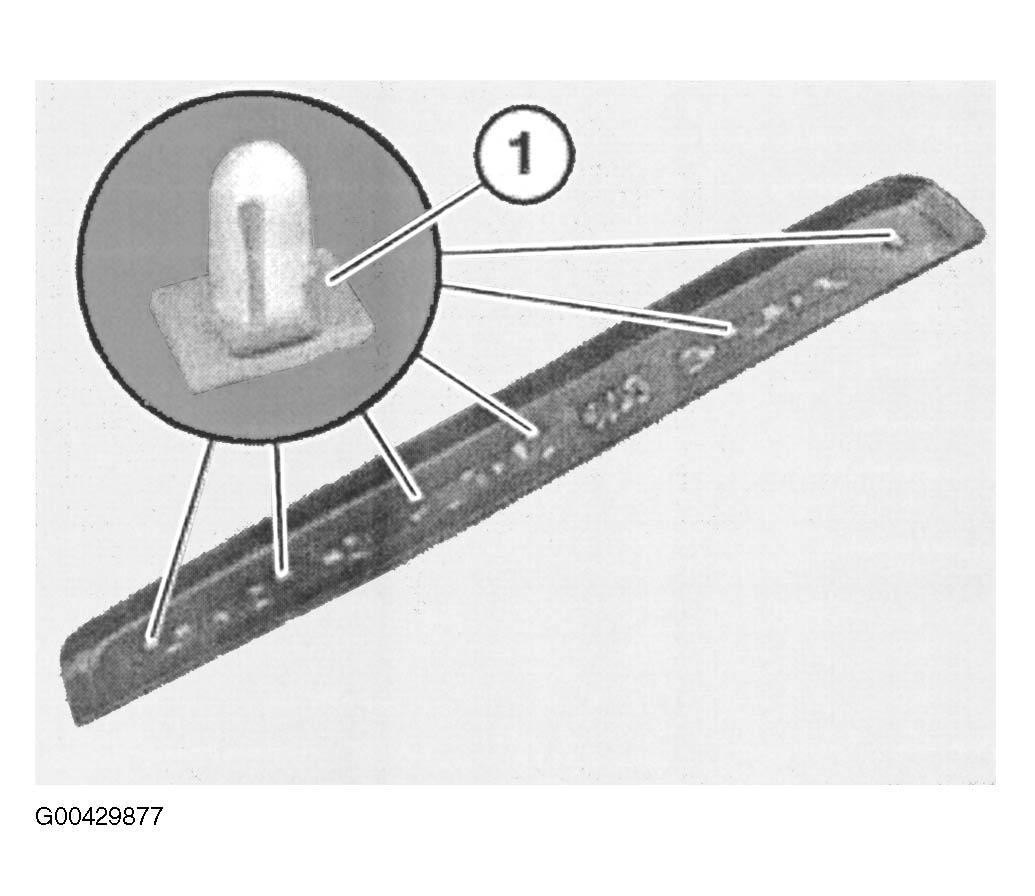

Fig 2: Checking For Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.
